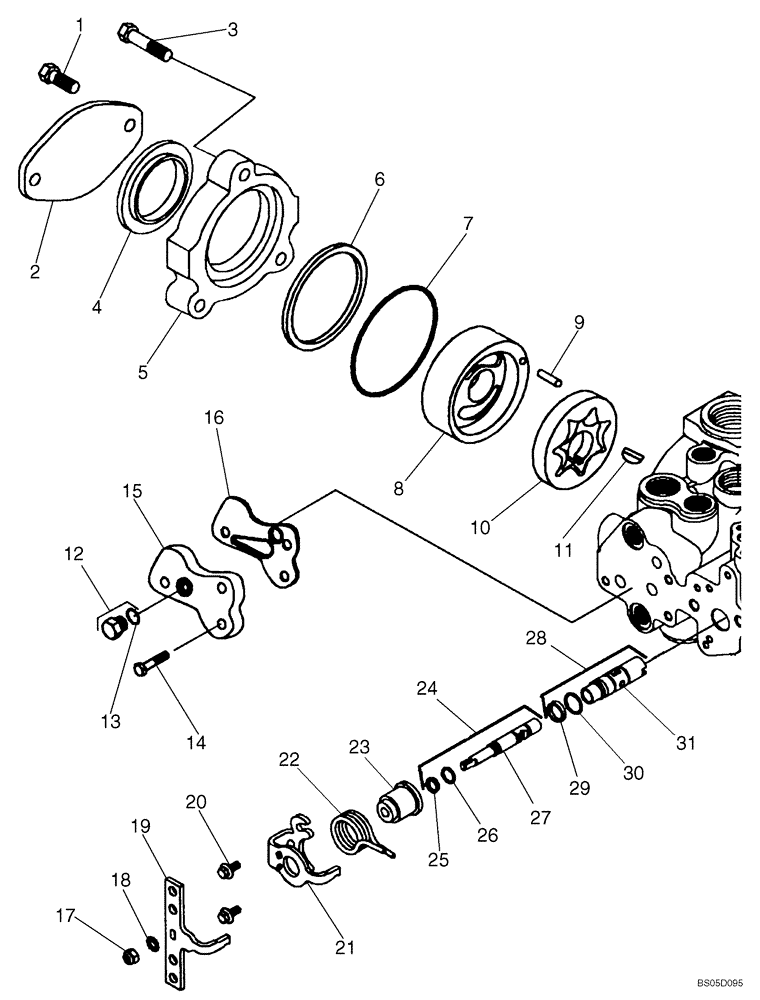

Запчасти Case 450CT (06-22) - TANDEM PUMPW/ AUX PAD (SPLIT PUMP CONFIGURATION) (06) - POWER TRAIN

87043510

PUMP

Tandem; Incl. Figures 06-19 - 06-22

1шт.

87382197R

REMAN-HYD PUMP

Reman for New PN 87382197R

1шт.

87382197C

CORE-HYDRAULIC PUMP

Return Number

1шт.

87382197

PUMP

Tandem; Replaces 87043510; Incl. Figures 06-09 - 06-12

1шт.

87382197R

REMAN-HYD PUMP

Remanufactured Hydraulic Pump

1шт.

87382197C

CORE-HYDRAULIC PUMP

Return No,

1шт.

1

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

2

H438063

LARGE PLATE

PLATE, LARGE

1шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

4

251661A1

SEAL

1шт.

5

87051503

ADAPTER

1шт.

6

105716A1

OIL SEAL

Temper Load Ring

1шт.

7

105715A1

O-RING

1шт.

8

105717A1

COVER

Gerotor

1шт.

9

181680A1

PIN,3/16" OD x 13/16" L

3/16 x 13/16

1шт.

10

105719A1

ROTOR ASSY.

1шт.

11

86019216

KEY

Woodruff

1шт.

12

76349

PLUG,9/16" - 18 ORB

Incl. 13

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14

26-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

3шт.

15

101462A1

ADAPTER

1шт.

16

303709A1

GASKET

Suction Filter Adapter

1шт.

17

H436054

SPECIAL NUT,Lock, 5/16" - 18

Suction Filter Adapter

1шт.

18

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

1шт.

19

436415A1

HANDLE

Control

1шт.

20

H435770

FLANGE BOLT,1/4" - 20 x 5/8"

2шт.

21

436416A1

BRACKET

Neutral Return

1шт.

22

407060A1

SPRING

Neutral Return

1шт.

23

87039613

GUIDE RING

1шт.

24

87039614

SPOOL

Incl. 25 - 27

1шт.

25

86993484

BACK-UP RING,0.390"

1шт.

26

86993475

O-RING

1шт.

27

NSS

NOT SOLD SEPARAT

Spool

1шт.

28

87039615

SLEEVE

Incl. 29 - 31

1шт.

29

86993483

BACK-UP RING,0.643"

1шт.

30

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

31

NSS

NOT SOLD SEPARAT

Sleeve

1шт.
