(06-16) - HYDROSTATICS - TWO SPEED, VALVE ASSY (450CT WITH SPLIT PUMP CONFIGURATION)

Запчасти Case 450CT (06-16) - HYDROSTATICS - TWO SPEED, VALVE ASSY (450CT WITH SPLIT PUMP CONFIGURATION) (06) - POWER TRAIN

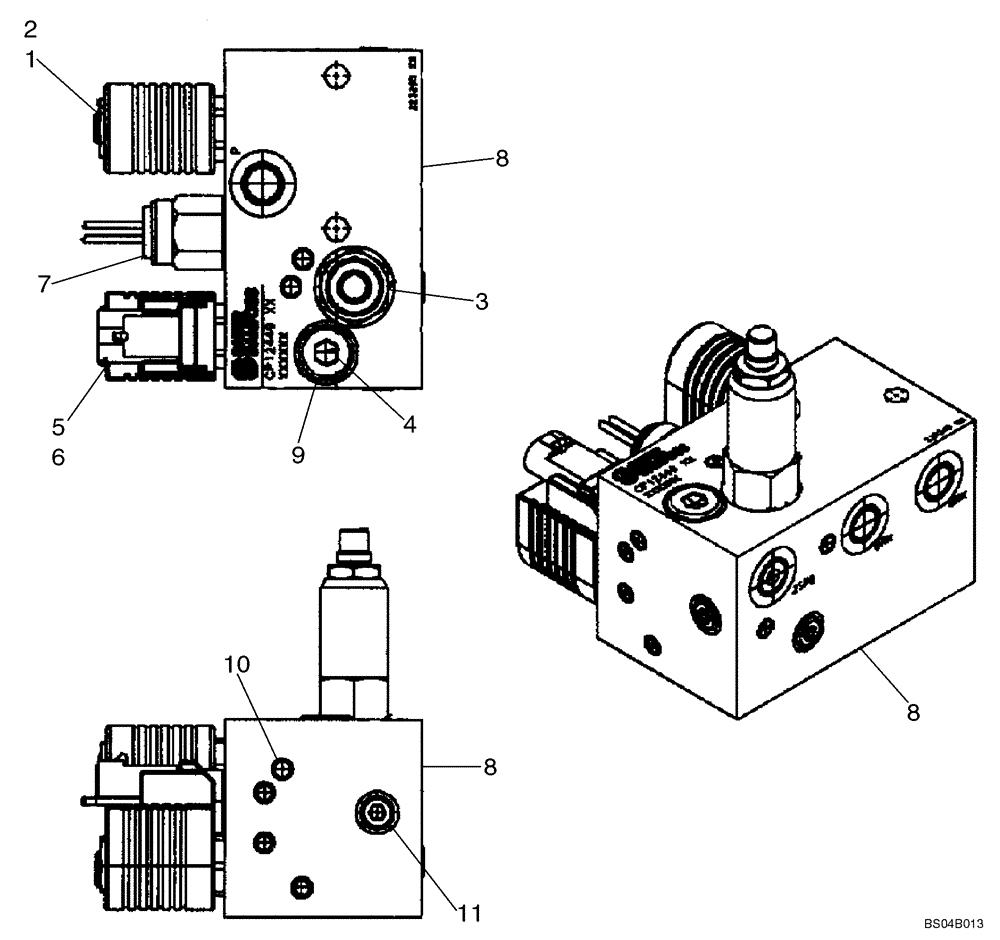

Схема запчастей Case 450CT - (06-16) - HYDROSTATICS - TWO SPEED, VALVE ASSY (450CT WITH SPLIT PUMP CONFIGURATION) (06) - POWER TRAIN
3
8
1
8
2
8
4
6
11
10
7
5
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

450CT WITH SPLIT PUMP CONFIGURATION

1шт.

87429625

HYDRAULIC VALVE

Two Speed; Incl. 1 - 11

1шт.

1

87424182

BRAKE VALVE

1шт.

2

87433496

COIL

Not Illustrated Separately

1шт.

3

87433497

VALVE

Sequence

1шт.

4

87426545

ORIFICE

M12

1шт.

5

87433495

SOLENOID VALVE

Hydraulic Valve

1шт.

6

87433499

COIL

Not Illustrated Separately

1шт.

7

87019943

PRESSURE SWITCH

Hydraulic Valve

1шт.

8

NSS

NOT SOLD SEPARAT

Body

1шт.

9

NSS

NOT SOLD SEPARAT

Plug

1шт.

10

NSS

NOT SOLD SEPARAT

Expansion Plug

11шт.

11

NSS

NOT SOLD SEPARAT

Plug

3шт.
