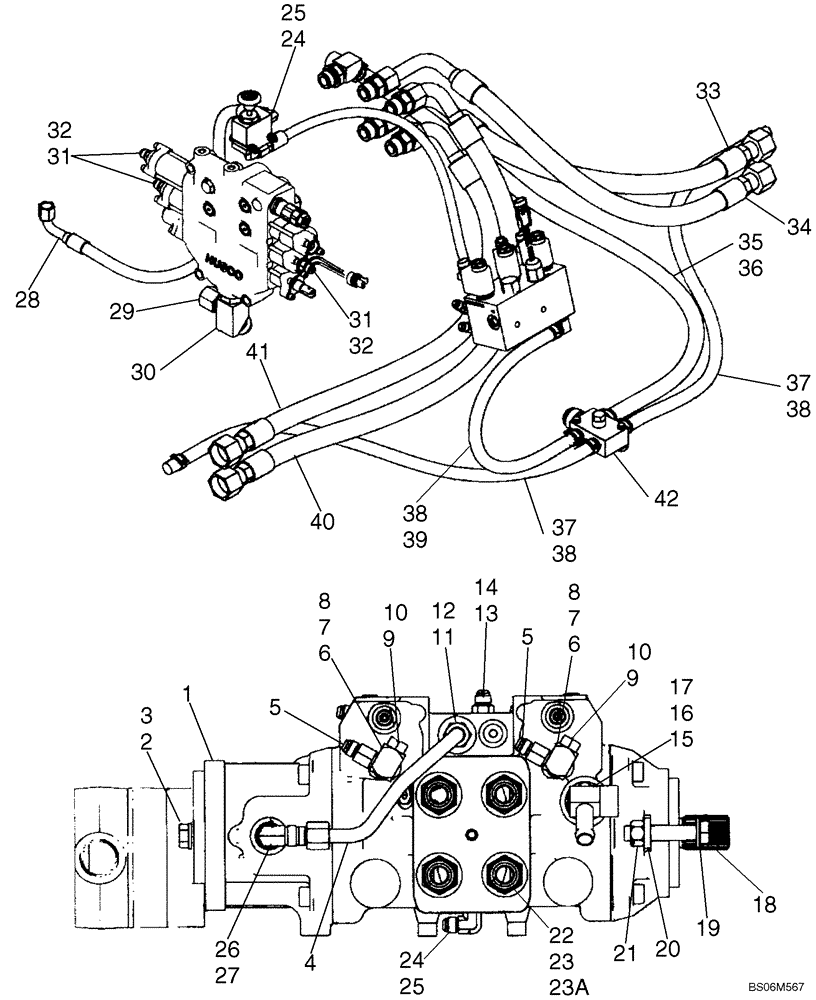

Запчасти Case 450CT (06-12A) - HYDROSTATICS - PUMP, SUPPLY AND RETURN, FITTINGS (450CT WITH PILOT CONTROL) (06) - POWER TRAIN

REF

INSTRUCTION

450CT WITH PILOT CONTROL

1шт.

1

87546977

PUMP,46 CC

Pump, A22; Component Parts Not Available At Time Of Printing

1шт.

1

87546977R

REMAN-HYD PUMP

Remanufactured Hydraulic Pump;

1шт.

1

87546977C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

3

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

4

87554297

HYD TUBE,10.2 mm ID x 12.7 mm OD x 147, 99.2 mm L

TUBE, Tandem Pump Supply

1шт.

5

87604074

ADAPTER

6FJ x 6MJ W/ 1.2 Orifice

1шт.

6

87546979

ADAPTER

Incl. 7, 8

2шт.

7

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

8

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

76349

PLUG,9/16" - 18 ORB

Incl. 10

3шт.

10

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Incl. 12

1шт.

12

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 14

4шт.

14

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

15

87571937

ADAPTER

45 Side Out, 12ORB x 10BEAD x 8NPT; Incl. 16, 17

1шт.

16

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

17

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

18

87556906

BOLT,Hex, M14 x 70mm, Cl 10.9

2шт.

19

87016615

WASHER,15.3mm ID x 28.5mm OD x 3mm Thk

2шт.

20

87564723

WASHER,15.3mm ID x 28.5mm OD x 6mm Thk

WASHER, 15.3 x 28.5 x 6 HTS ZND

2-4шт.

21

87637186

NUT

Nut, Square, M14

2шт.

22

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl. 23, 23A

4шт.

23

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

23a

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

24

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 25

2шт.

25

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl. 27

1шт.

27

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

28

87547043

HOSE,9.53mm ID x 773mm L

Dump Valve Supply

1шт.

28a

87546978

ADAPTER

Not Illustrated

1шт.

29

219606

CAP,1-1/16" - 12 JIC

1шт.

30

87421217

ADAPTER,1-5/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 ORB

45 Degree With Side Outlet

1шт.

31

84384

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

Incl. 32

2шт.

32

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

33

87547010

HOSE,19.05mm ID x 630mm L

630 mm (24.8 in); Motor- Pump Loop

1шт.

34

87547011

HOSE,19.05mm ID x 712mm L

712 mm (28 in); Motor- Pump Loop

1шт.

35

87547044

HOSE,15.88mm ID x 1061mm L

Pump Drain

1шт.

36

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

24 mm

2шт.

37

87452385

HOSE,12.70 mm ID x 114.00 mm

Case Drain

2шт.

38

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

6шт.

39

87547047

HOSE,12.7mm ID x 520mm L

Multi-Valve Drain

1шт.

40

87547013

HOSE,19.05mm ID x 1072mm L

1072 mm (42.2 in); Motor- Pump Loop

1шт.

41

87547012

HOSE,19.05mm ID x 1002mm L

1002 mm (39.45 in); Motor- Pump Loop

1шт.

42

87437351

MANIFOLD

Oil Return

1шт.
