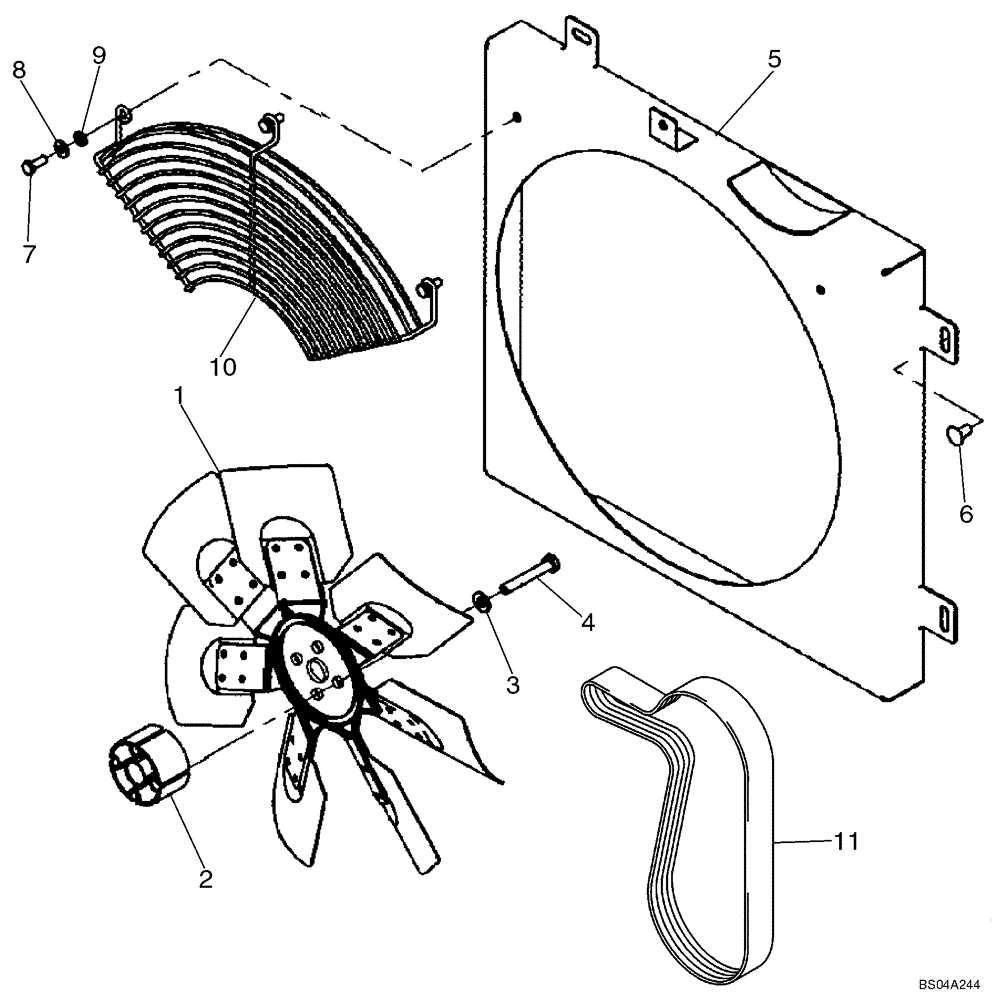

Запчасти Case 450CT (02-02) - FAN - FAN BELT (02) - ENGINE

1

87025470

FAN

480 mm (18 29/32 in.) Dia.; If Used

1шт.

1

87737293

FAN,7 Blades, 480mm OD

480 mm (18 29/32 in.) Dia.; If Used

1шт.

1

87680032

FAN,6 Blades, 517.9mm OD

518 mm (450CT); 24 Degree; Replaces 238344A1

1шт.

2

A184545

SPACER

1шт.

3

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

4

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

4шт.

5

87046890

SHROUD ASSY.

Used With 480 mm Fan (450, 450CT)

1шт.

5

87461514

SHROUD ASSY.

Used With 518 mm Fan (450CT, If Used)

1шт.

6

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

4шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

9

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

10

87046887

GUARD

Fan Guard

1шт.

11

REF

INSTRUCTION

See Figure 02-06

1шт.
