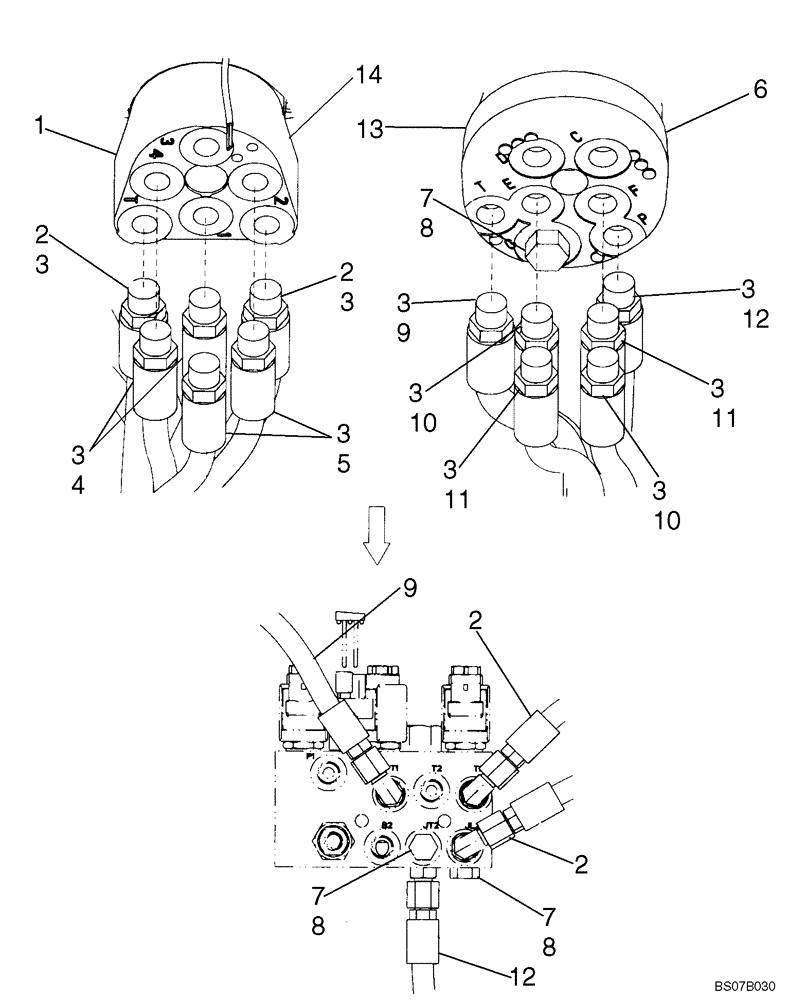

Запчасти Case 450CT (06-10B) - JOYSTICK CONTROL PLUMBING - ISO PATTERN (MODELS WITH PILOT CONTROLS) (06) - POWER TRAIN

87575596

SERVICE KIT

Kit, ISO Pattern Control; Incl. 1 - 12

1шт.

1

87600623

VALVE

Joystick Valve, ISO Pattern RH

1шт.

2

87547036

HOSE,9.65 mm ID x 720.00 mm

Joystick Supply; Incl. 3

2шт.

3

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

7шт.

4

87547030

HOSE,6.35 mm ID x 918.00 mm

Incl. 3

2шт.

5

87547059

HOSE,6.35 mm ID x 770.00 mm

Incl. 3

2шт.

6

87600622

CONTROL BLOCK

Joystick Valve, ISO Pattern LH

1шт.

7

76349

PLUG,9/16" - 18 ORB

Incl. 8

3шт.

8

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

3шт.

9

87547058

HOSE,9.65 mm ID x 325.00 mm

Incl. 3

1шт.

10

87564002

HOSE,6.35 mm ID x 3715.00 mm

; Incl. 3

2шт.

11

87547029

HOSE,6.35 mm ID x 63.00 mm

Incl. 3

2шт.

12

87564004

HOSE,9.65 mm ID x 2865.00 mm

; Incl. 3

1шт.
