Запчасти Case 445CT (04-19) - ELECTRICAL - ROAD LIGHTS (EUROPE) (04) - ELECTRICAL SYSTEMS

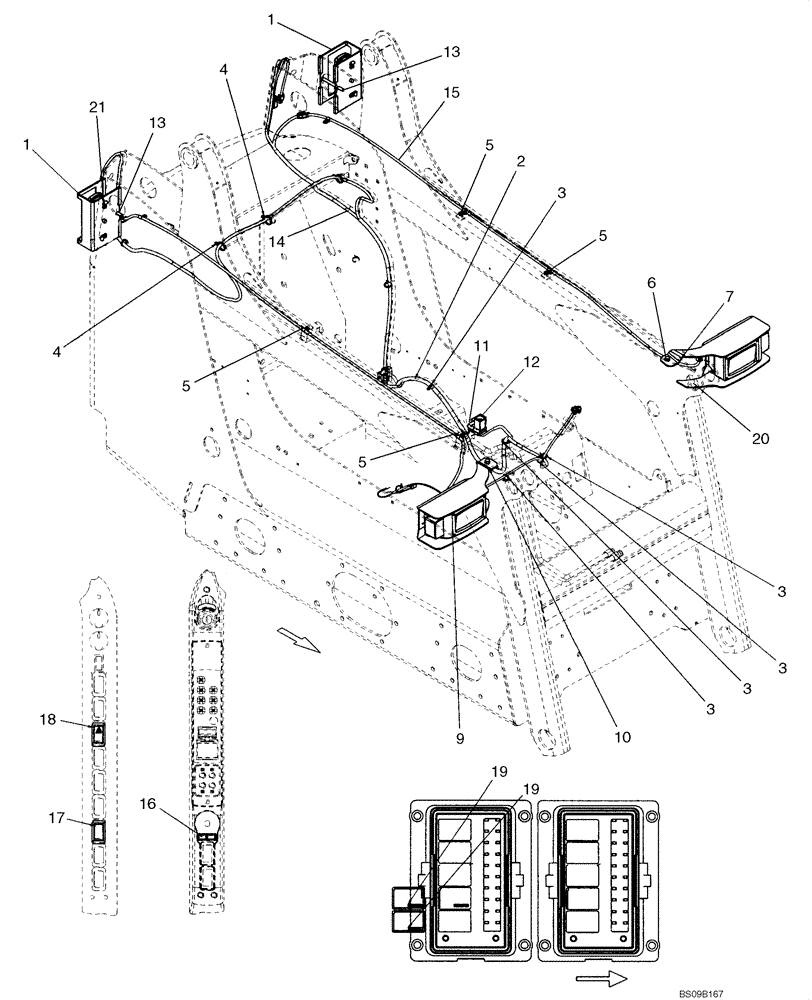

Схема запчастей Case 445CT - (04-19) - ELECTRICAL - ROAD LIGHTS (EUROPE) (04) - ELECTRICAL SYSTEMS
18
19
10
4
16
15
6
5
13
3
3
11
12
19
20
5
1
21
5
9
4
1
14
3
3
7
13
17
2
3
5

Артикул

Название

Примечание

Количество

87676262

SERVICE KIT

Kit, Road Lights (Europe); Incl 1 - 19

1шт.

1

REF

INSTRUCTION

Rear Light Mounting; See Fig 04-24A

2шт.

2

87668730

HARNESS

Harness, Europe Adapter (HL); If Used

1шт.

2

87746196

HARNESS

Harness, Europe Adapter (HL)

1шт.

3

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

11-12шт.

4

87668737

CABLE TIE,203.2mm L, Nylon, Black

Strap, Fir Tree

3шт.

5

86637978

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, P Type

6-10шт.

6

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

2шт.

7

87721975

BRACKET

Light Bracket, LH; If Used

1шт.

7

87754969

BRACKET

Light Bracket, LH

1шт.

8

85821385

LH HEADLAMP,12V

See Fig 04-20

1шт.

9

85821384

RH HEADLAMP,T4W, 12V, 4W

See Fig 04-21

1шт.

10

87721976

BRACKET

Light Bracket, RH; If Used

1шт.

10

87754970

BRACKET

Light Bracket, RH

1шт.

11

9821783

FLASHER UNIT

1шт.

12

388457A1

RELAY

Time Delay Relay (5 Second); If Used

1шт.

13

86508573

BOLT,Hex, M10 x 110mm, Cl 8.8

2шт.

14

87673078

HARNESS

Harness, On Road Boom

1шт.

15

87673076

HARNESS

Harness, On Road Boom Jumper

2шт.

16

86604657

INDICATOR, TURN SIGN

1шт.

17

87642912

SWITCH

Rocker Switch, Loader Lock

1шт.

18

87634133

SWITCH

Rocker Switch, Hazard Lights

1шт.

19

87655334

RELAY,12V, 35A, Micro

1-2шт.

20

87550233

SELF-TAP SCREW,Hex Flg, M10 x 1.5 x 25mm

Screw, Flg M10 x 25

2шт.

21

87016870

CLAMP,9.5mm, Coat, 8.7mm Bolt Hole, J Type

2шт.

Выбрано товаров: 25
