Запчасти Case 445CT (04-17) - DISCONNECT SWITCH - REMOTE JUMP START (04) - ELECTRICAL SYSTEMS

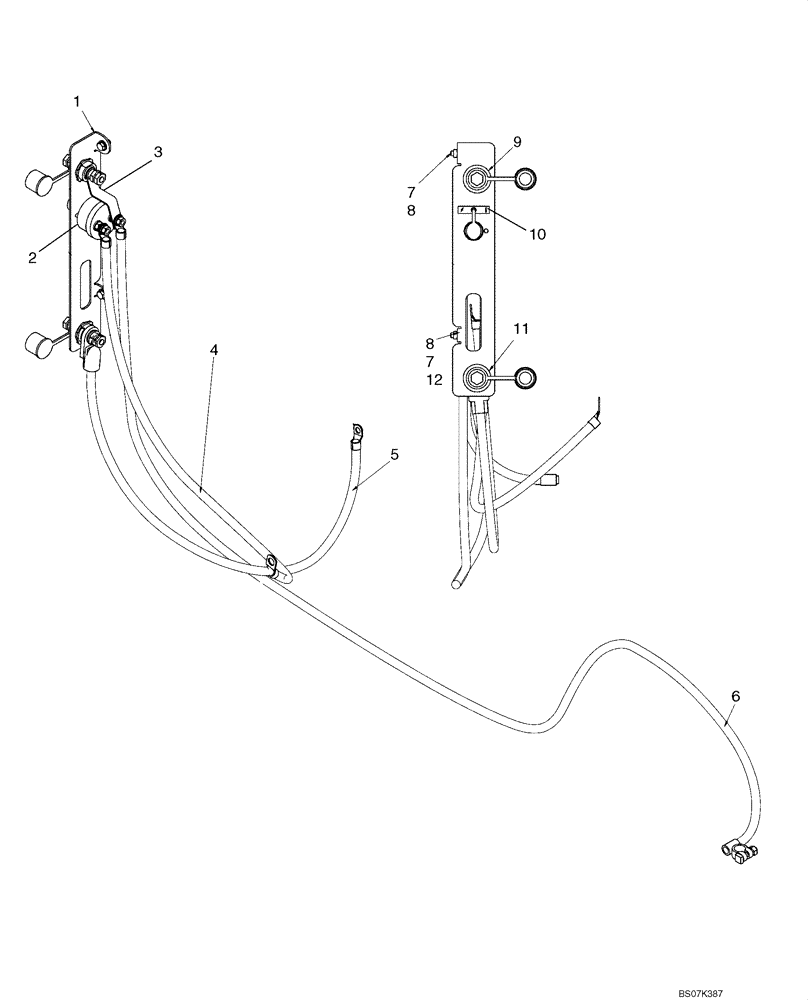

Схема запчастей Case 445CT - (04-17) - DISCONNECT SWITCH - REMOTE JUMP START (04) - ELECTRICAL SYSTEMS
3
12
9
8
2
1
4
7
5
7
11
8
6
10

Артикул

Название

Примечание

Количество

1

87581954

BRACKET

Remote Jump Start Bracket

1шт.

2

87458467

ROTARY SWITCH

Master Disconnect Switch

1шт.

3

399665A2

ANCHOR

Strip, Battery Jump Start

1шт.

4

87581958

CABLE

Negative Battery Cable, 1034mm (40 11/16 in.)

1шт.

5

87682370

CABLE

Positive Battery Cable, 1058mm (41 21/32 in.)

1шт.

6

87581956

CABLE

Negative Battery Cable, 2281mm (89 13/16 in.)

1шт.

7

87030567

SQUARE NUT

2шт.

8

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

9

399384A1

TERMINAL CONNECTOR

Negative Terminal

1шт.

10

176332A1

DECAL

Battery Disconnect

1шт.

11

399383A1

TERMINAL CONNECTOR,3/8"-16 UNC

Positive Terminal

1шт.

12

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

2шт.

Выбрано товаров: 12
