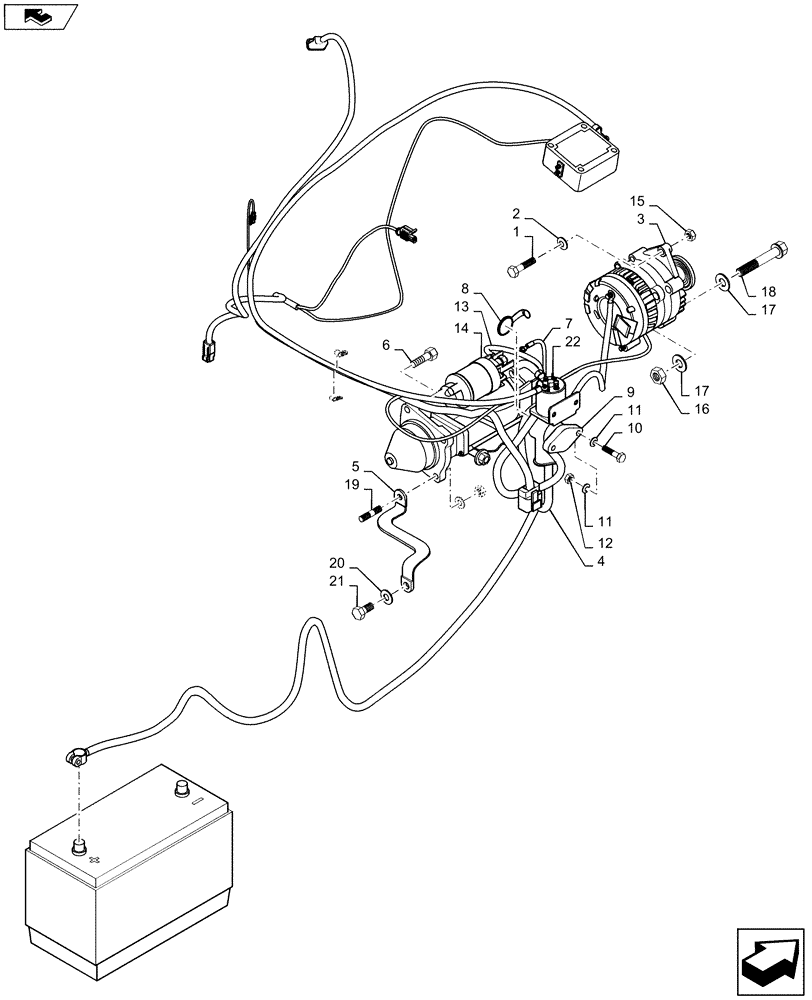

Запчасти Case 445CT (04-04) - ELECTRICAL - STARTER AND ALTERNATOR (04) - ELECTRICAL SYSTEMS

1

386045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

If Used

1шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

If Used

1шт.

3

87038475

ALTERNATOR

12V, 95 Amp

1шт.

3

87038475R

REMAN-ALTERNATOR

12V, 95 Amp

1шт.

3

87038475C

CORE-ALTERNATOR

Return Number

1шт.

3

84230294R

REMAN-ALTERNATOR

445 Tier 3, ASN N7M454787, 445CT Tier 3, ASN N8M458846

1шт.

3

84230294C

CORE-ALTERNATOR

Return Number

1шт.

4

87741595

CABLE

Starter To Power Distribution Block; Replaces 87652238; If Used

1шт.

4

87741596

CABLE,614mm L

Starter To Power Dist Block

1шт.

5

86500938

GROUND CABLE

1шт.

6

9804262

BOLT,M10 x 39.2mm, Cl 8.8

3шт.

7

87530630

CABLE

Cable, Alternator To Power Distribution Block, 296mm (11 21/32 in.)

1шт.

7

87722505

CABLE

Cable, Alternator To Power Distribution Block, 432mm (17 in.); Replaces 87530630

1шт.

7

87742137

CABLE,432mm L

Cable, Alternator To Power Distribution Block, 432mm (17 in.) Incl Rubber Boot; Replaces 87722505

1шт.

8

87630125

BOOT

Power Distribution Cover

1шт.

9

87630124

POST

Single Point Power Distribution Block

1шт.

10

86512441

CARRIAGE BOLT,Rnd Head, M6 x 1 x 36.6mm, Cl 8.8

2шт.

11

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

12

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

13

87053083

HARNESS

Starter Jumper

1шт.

14

87638510

STARTER MOTOR,12V, 2.7kW

Starter, Denso 3.0KW PA90S; If Used

1шт.

*

Drive Motor on bottom, battery terminals on top pointing towards fan.

1шт.

*

87638510R

REMAN-STARTER,12V, 2.7kW

445 ASN N7M454787, 445CT ASN N8M458846, Both Tier 3 (1/08)

1шт.

*

87638510C

CORE-STARTER,12V, 2.7kW

Return Number

1шт.

14

87040161

STARTER MOTOR,12V, 2.7kW

Starter, Denso 2.7KW; If Used

1шт.

*

Drive Motor on top, battery terminals on side.

1шт.

14

87040161R

REMAN-STARTER,12V, 2.7kW

Remanufactured, STARTER

1шт.

14

87040161C

CORE-STARTER,12V, 2.7kW

Return Number

1шт.

15

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

16

86512554

NUT,M10 x 1.5, Cl 10

1шт.

17

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

19

87458961

STUD

12mm x 80mm

1шт.

18

86508574

BOLT,Hex, M10 x 120mm, Cl 8.8

1шт.

20

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

1шт.

21

9706685

NUT,M12 x 1.75, Cl 8

1шт.

22

87406968

SOLENOID SWITCH

1шт.
