Запчасти Case 445CT (04-02) - ELECTRICAL - ENGINE (04) - ELECTRICAL SYSTEMS

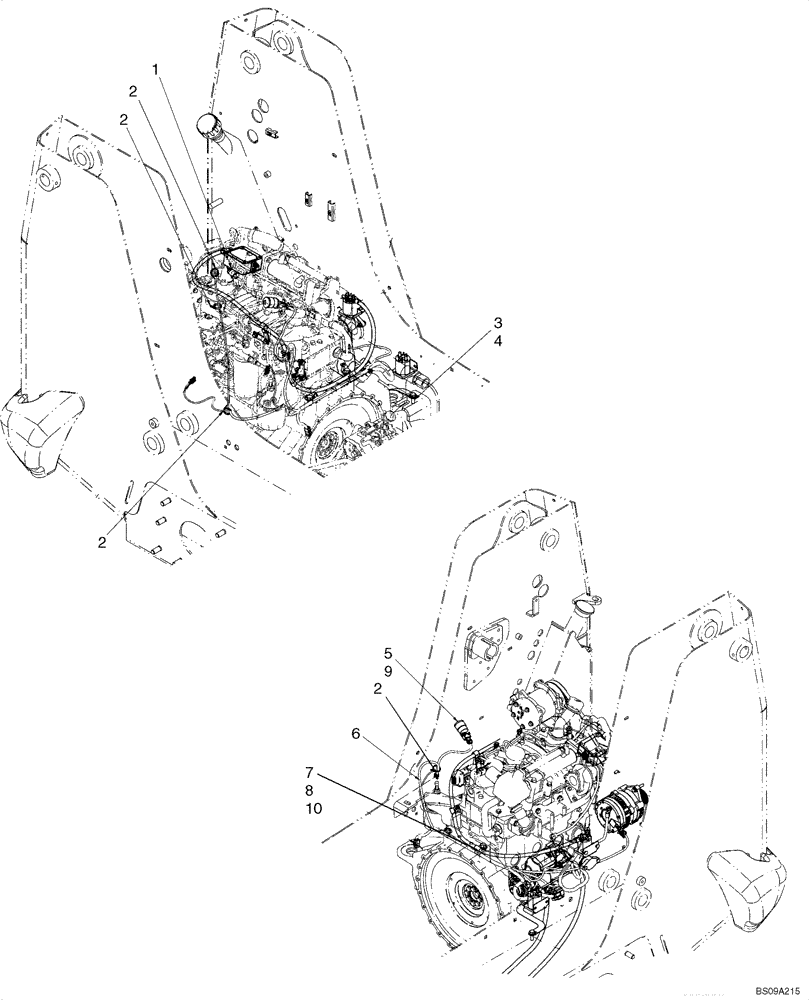

Схема запчастей Case 445CT - (04-02) - ELECTRICAL - ENGINE (04) - ELECTRICAL SYSTEMS
9
8
1
2
6
4
3
7
10
2
5
2
2

Артикул

Название

Примечание

Количество

1

87688409

TEMPERATURE SENDER,M10 x 1.0

Water Temperature Sending Unit

1шт.

2

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

4шт.

3

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

4

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

5

87013666

SWITCH,Air Filter Restriction

Air Restriction Switch

1шт.

6

87720457

HARNESS

Engine F5C; Replaces 87673098

1шт.

7

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

1шт.

8

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Not Illustrated

1шт.

9

84015293

ELBOW,90 Degree, 1/8"-27 Female x 1/8"-27 Male

1шт.

10

87301588

CLAMP,11.1mm, Coat, 13.5mm Bolt Hole, P Type

Insul 11.1mm M12 Bolt

1шт.

Выбрано товаров: 10
