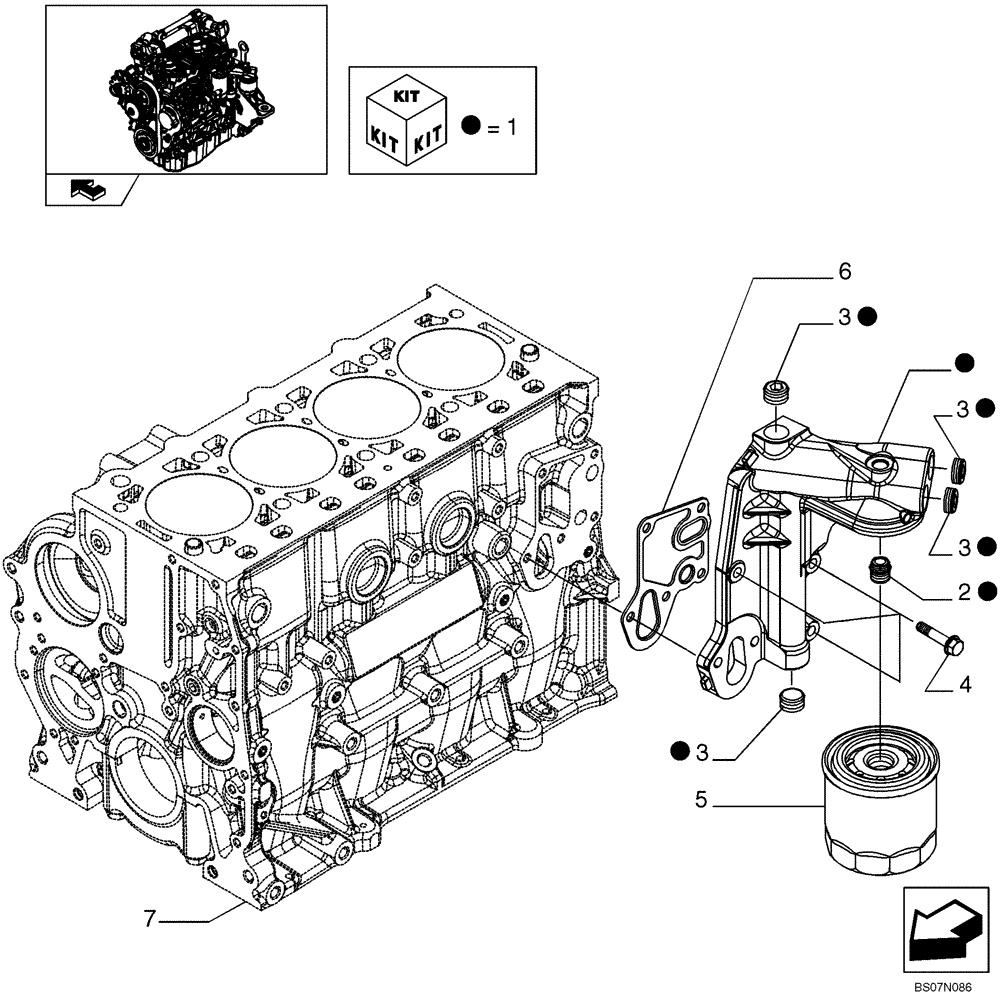

Запчасти Case 445CT (02-30) - FILTER ENGINE OIL (87380450) (02) - ENGINE

1

504271928

FILTER HEAD

Filter, Engine OIl

1шт.

2

4893391

ADAPTER,M24 x 2 x M27 x 2

1шт.

3

504113860

PLUG,Threaded, 1/2"

Plug

4шт.

4

16673835

BOLT,Hex, M8 x 30mm

M8 x 30

2шт.

5

87679496

ENGINE OIL FILTER

1шт.

6

504235816

GASKET

Seal

1шт.

7

REF

INSTRUCTION

See Figure 02-11, Cylinder Block And Related Parts

1шт.
