Запчасти Case 445CT (02-27) - CAMSHAFT - TIMING CONTROL (87380450) (02) - ENGINE

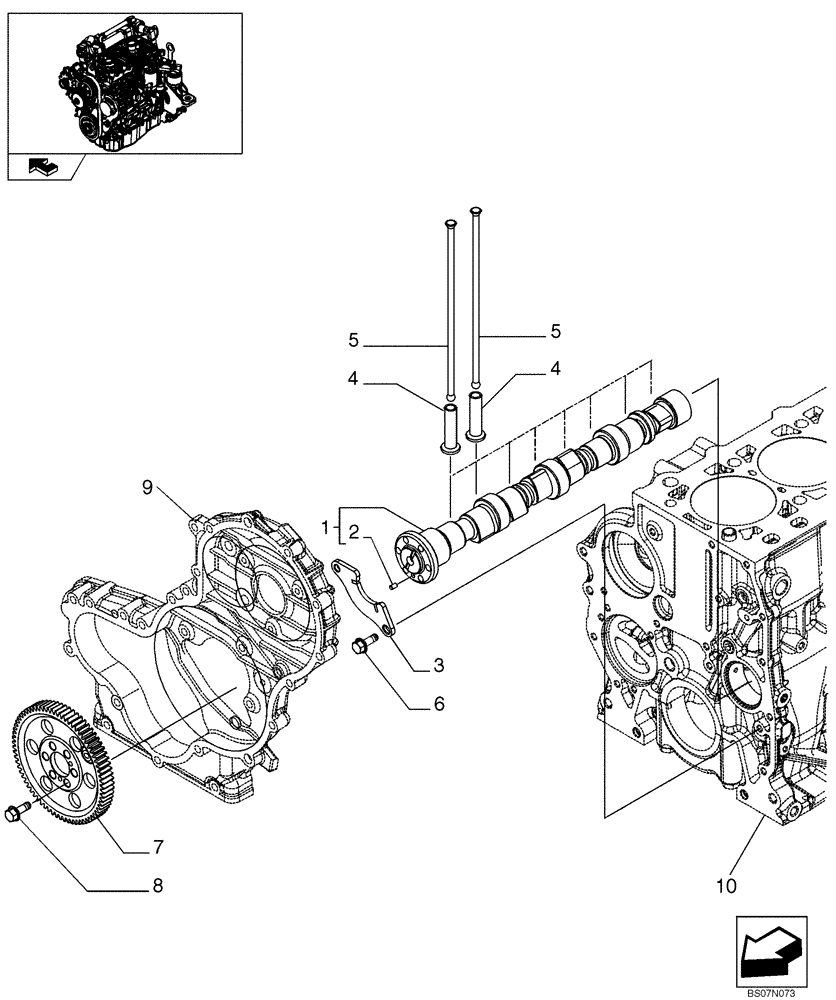

Схема запчастей Case 445CT - (02-27) - CAMSHAFT - TIMING CONTROL (87380450) (02) - ENGINE
5
9
8
4
5
2
7
6
4
10
1
3

Артикул

Название

Примечание

Количество

1

504272265

CAMSHAFT

Camshaft Assy

1шт.

1

504272265R

REMAN-CAMSHAFT

445 SKID STEER - TIER 3, ASN N7M454787, 445CT COMPACT TRACK LOADER - TIER 3, ASN N8M458846, Both Camshaft Assy (1/08-3/11)

1шт.

1

504272265C

Return Number

1шт.

2

10839510

DOWEL,M6 x 9

1шт.

3

4897457

SUPPORT

1шт.

4

98471524

TAPPET

+0,0

8шт.

5

504163240

PUSH ROD

Push Rod

8шт.

6

16673635

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

2шт.

7

504240396

GEAR

Gear

1шт.

8

16673635

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd

6шт.

9

REF

INSTRUCTION

See Figure 02-13, Engine Block Front Cover

1шт.

10

REF

INSTRUCTION

See Figure 02-11, Cylinder Bock And Related Parts

1шт.

Выбрано товаров: 12
