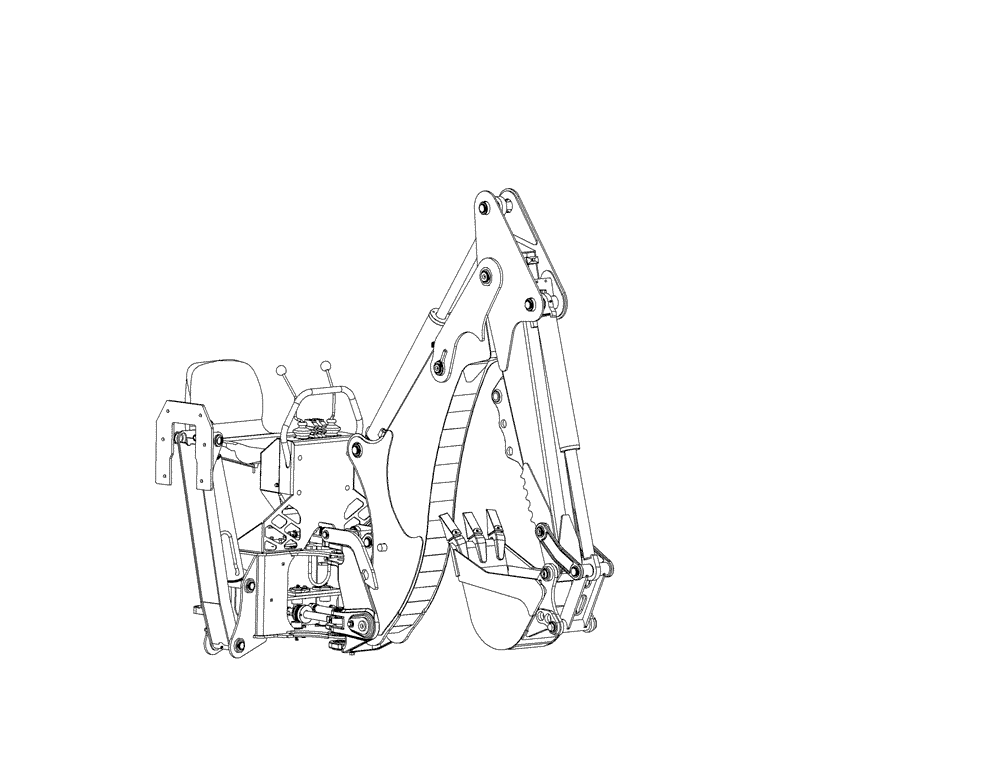

Запчасти Case 445CT (95.008.AAL) - BACKHOES, 445CT (95) - CE ATTACHMENTS

1

87318188

ATTACHMENT

509 Backhoe, Incl Fold Down Stabilizers, Must Select Pad Opt for Fold Down or Vertical Stabilizers, Vertical Stabilizer May be Substituted

1шт.

Aux Boom Hydraulics Reqd, Rear Counterweights or Rear Stabilizers Recommended, Std Flow Reqd

1шт.

Model Compatibility: SR175 W/ 10 x 16.5, SR175 W/ 12 x 16.5, SV185, SR200 W/ 10 x 16.5, SR210 W/ 10 x 16.5, SR200 W/ 12 x 16.5 or 33/15.5 x 16.5, SR210 W/ 12 x 16.5 or 33/15.5 x 16.5, SR220, SR250, SV250, SV300, TR270, TR320, TV380, 410, 420, 430, 440, 435, 445, 450, 465, 420CT, 440CT, 445CT, 450CT

1шт.

2

87318189

ATTACHMENT

511 Backhoe, Incl Fold Down Stabilizers, Must Select Pad Opt for Fold Down or Vertical Stabilizers, Vertical Stabilizer May be Substituted

1шт.

Aux Boom Hydraulics Reqd, Rear Counterweights or Rear Stabilizers Recommended, Std Flow Reqd

1шт.

Model Compatibility: SR175 W/ 10 x 16.5, SR175 W/ 12 x 16.5, SV185, SR200 W/ 10 x 16.5, SR210 W/ 10 x 16.5, SR200 W/ 12 x 16.5 or 33/15.5 x 16.5, SR210 W/ 12 x 16.5 or 33/15.5 x 16.5, SR220, SR250, SV250, SV300, TR270, TR320, TV380, 420, 430, 440, 435, 445, 450, 465, 420CT, 440CT, 445CT, 450CT

1шт.

3

87498442

BUCKET

6100 Backhoe, Incl Fold Down Stabilizers W/ Flip Over Dirt Pads, Bolt-on Rubber Pads are Opt, Vertical Stabilizer May be Substituted

1шт.

Aux Boom Hydraulics Reqd, Rear Counterweights or Rear Stabilizers Recommended, Std Flow Reqd

1шт.

Model Compatibility: SR200 W/ 10 x 16.5, SR210 W/ 10 x 16.5, SR200 W/ 12 x 16.5 or 33/15.5 x 16.5, SR210 W/ 12 x 16.5 or 33/15.5 x 16.5, SR220, SR250, SV250, SV300, TR270, TR320, TV380, 420, 430, 440, 435, 445, 450, 465, 420CT, 440CT, 445CT, 450CT

1шт.

4

87498443

BUCKET

6120 Backhoe, Incl Fold Down Stabilizers W/ Flip Over Dirt Pads, Bolt-on Rubber Pads are Opt, Vertical Stabilizer May be Substituted

1шт.

Aux Boom Hydraulics Reqd, Rear Counterweights or Rear Stabilizers Recommended, Std Flow Reqd

1шт.

Model Compatibility: SR250, SV250, SV300, TR320, TV380, 430, 440, 435, 445, 450, 465, 440CT, 445CT, 450CT

1шт.

5

87318193

MOUNTING PARTS

Complete Kit, Backhoe and Loader Halves

1шт.

Model Compatibility: 435, 445, 450, 465, 445CT, 450CT

1шт.

6

87318195

BRACKET

Mounting, Loader Half Only, Field Installed, Order as Needed

1шт.

Model Compatibility: 435, 445, 450, 465, 445CT, 450CT

1шт.

7

86547400

SHEET

Std Dirt Pad Option for 509, 511, Fold Down, One Stabilizer Pad Option Required

1шт.

8

86547423

STREET PLATE

Rubber Pad Option for 509, 511, Fold Down, One Stabilizer Pad Option Required

1шт.

9

86547424

STREET PLATE

Flip Over Pad Option for 509, 511, Fold Down, One Stabilizer Pad Option Required

1шт.

10

87498477

STREET PLATE

Rubber Pad Option for 6100, 6120, Fold Down, Optional Stabilizer Pad Not Required

1шт.

11

86590026

STREET PLATE

Std Dirt Pad Option for All Models, Vertical, One Stabilizer Pad Option Required

1шт.

12

86590027

STREET PLATE

Rubber Pad Option for All Models, Vertical, One Stabilizer Pad Option Required

1шт.

13

86590028

STREET PLATE

Flat Pad Option for All Models, Vertical, One Stabilizer Pad Option Required

1шт.

14

87034086

STABILIZER

Vertical for 509, 511, Factory Installed, Order as Needed

1шт.

15

84150225

STABILIZER

Vertical for 6100, 6120, Factory Installed, Order as Needed

1шт.

16

87034088

BRACKET

C & P Bucket Quick Coupler for 509, 511, Factory Installed, Order as Needed

1шт.

17

84150409

BRACKET

C & P Bucket Quick Coupler for 6100, 6120, Factory Installed, Order as Needed

1шт.

18

87034089

ATTACHMENT

Knuckle Arm Thumb for 509, 511, Factory Installed, Order as Needed

1шт.

19

84150419

ATTACHMENT

Knuckle Arm Thumb for 6100, 6120, Factory Installed, Order as Needed

1шт.

20

87034090

ATTACHMENT

Hydraulic Thumb for 509, 511, Factory Installed, Order as Needed

1шт.

21

84150422

ATTACHMENT

Hydraulic Thumb for 6100, 6120, Factory Installed, Order as Needed

1шт.

22

87034091

HYDRAULIC EQUIPMENT

2-Way Aux Kit for 509, 511, For Hydraulic Thumb, Hammer and Auger Applications, Factory Installed, Order as Needed

1шт.

23

84150411

HYDRAULIC EQUIPMENT

2-Way Aux Kit for 6100, For Hydraulic Thumb, Hammer and Auger Applications, Factory Installed, Order as Needed

1шт.

24

84150413

HYDRAULIC EQUIPMENT

2-Way Aux Kit for 6120, For Hydraulic Thumb, Hammer and Augur Applications, Factory Installed, Order as Needed

1шт.

25

86568601

BUCKET

12'', 1.8 Ft³, Std Pin-on Bucket Options for 509 And 511 Backhoes

1шт.

Thumb Contacts Bucket Teeth, Others Mesh W/ Teeth

1шт.

26

86568602

BUCKET

16'', 2.6 Ft³, Std Pin-on Bucket Options for 509 and 511 Backhoes

1шт.

27

86568603

BUCKET

18'', 3.0 Ft³, Std Pin-on Bucket Options for 509 and 511 Backhoes

1шт.

28

87034107

BUCKET

20'', 3.4 Ft³, Std Pin-on Bucket Options for 509 and 511 Backhoes

1шт.

29

86568604

BUCKET

24'', 4.3 Ft³, Std Pin-on Bucket Options for 509 and 511 Backhoes

1шт.

Thumb Contacts Bucket Teeth, Others Mesh W/ Teeth

1шт.

30

87034108

BUCKET

36'', 6.1 Ft³, Std Pin-on Bucket Options for 509 and 511 Backhoes

1шт.

31

86619967

RIPPER TOOTH

Std Pin-on Bucket Options for 509 and 511 Backhoes

1шт.

32

84150228

BUCKET

12'', 1.5 Ft³, Std Pin-on Bucket Options for 6100 and 6120 Backhoes

1шт.

Thumb Contacts Bucket Teeth, Others Mesh W/ Teeth

1шт.

33

84150229

BUCKET

16'', 2.2 Ft³, Std Pin-on Bucket Options for 6100 and 6120 Backhoes

1шт.

34

84150230

BUCKET

18'', 2.5 Ft³, Std Pin-on Bucket Options for 6100 and 6120 Backhoes

1шт.

35

84150231

BUCKET

24'', 3.6 Ft³, Std Pin-on Bucket Options for 6100 and 6120 Backhoes

1шт.

Thumb Contacts Bucket Teeth, Others Mesh W/ Teeth

1шт.

36

84150232

BUCKET

34'', 5.3 Ft³, Std Pin-on Bucket Options for 6100 and 6120 Backhoes

1шт.

37

84150233

BUCKET

36'', 5.7 Ft³, Std Pin-on Bucket Options for 6100 and 6120 Backhoes

1шт.

38

84150234

BUCKET

38'', 6.0 Ft³, Std Pin-on Bucket Options for 6100 and 6120 Backhoes

1шт.

39

87648164

BRACKET

Auger Adapter, Allows Case Auger to be Attached to the Dipper, Requires Aux Hydraulic Kit, Std Pin-on Bucket Options for 6100 and 6120 Backhoes

1шт.

40

87034110

BUCKET

12'' C & P 027 Heavy Duty, 2.4 Ft³, C & P Mount Buckets and Attachments for 509, 511, 6100, 6120 Backhoes, Requires C & P Bucket Quick Coupler

1шт.

Thumb Contacts Bucket Teeth, Others Mesh W/ Teeth

1шт.

41

87034111

BUCKET

16'' C & P 027 Heavy Duty, 3.3 Ft³, C & P Mount Buckets and Attachments for 509, 511, 6100, 6120 Backhoes, Requires C & P Bucket Quick Coupler

1шт.

42

87034112

BUCKET

18'' C & P 027 Heavy Duty, 3.5 Ft³, C & P Mount Buckets and Attachments for 509, 511, 6100, 6120 Backhoes, Requires C & P Bucket Quick Coupler

1шт.

43

87034114

BUCKET

20'' C & P 027 Heavy Duty, 3.8 Ft³, C & P Mount Buckets and Attachments for 509, 511, 6100, 6120 Backhoes, Requires C & P Bucket Quick Coupler

1шт.

44

87034115

BUCKET

24'' C & P 027 Heavy Duty, 4.8 Ft³, C & P Mount Buckets and Attachments for 509, 511, 6100, 6120 Backhoes, Requires C & P Bucket Quick Coupler

1шт.

Thumb Contacts Bucket Teeth, Others Mesh W/ Teeth

1шт.

45

87034116

BUCKET

30'' C & P 027 Heavy Duty, 6.1 Ft³, C & P Mount Buckets and Attachments for 509, 511, 6100, 6120 Backhoes, Requires C & P Bucket Quick Coupler

1шт.

46

87034117

BUCKET

36'' C & P 027 Heavy Duty, 7.5 Ft³, C & P Mount Buckets and Attachments for 509, 511, 6100, 6120 Backhoes, Requires C & P Bucket Quick Coupler

1шт.

47

87034118

BUCKET

30'' C & P 027 Ditch Cleaning, 6.1 Ft³, C & P Mount Buckets and Attachments for 509, 511, 6100, 6120 Backhoes, Requires C & P Bucket Quick Coupler

1шт.

48

87034119

BUCKET

36'' C & P 027 Ditch Cleaning, 7.5 Ft³, C & P Mount Buckets and Attachments for 509, 511, 6100, 6120 Backhoes, Requires C & P Bucket Quick Coupler

1шт.

49

87034120

RIPPER TOOTH

C & P 027, C & P Mount Buckets and Attachments for 509, 511, 6100, 6120 Backhoes, Requires C & P Bucket Quick Coupler

1шт.

50

87034122

COUPLING

C & P 027 Auger Adapter, Allows Case Auger to be Attached to Dipper, Requires Aux Hydraulic Kit, C & P Mount Buckets and Attachments for 509, 511, 6100, 6120 Backhoes, Requires C & P Bucket Quick Coupler

1шт.

51

87034123

BRACKET

C & P Bucket Quick Coupler for 509, 511, Field Installed Option, Order as Needed

1шт.

52

84150410

BRACKET

C & P Bucket Quick Coupler for 6100, 6120, Field Installed Option, Order as Needed

1шт.

53

87034125

ATTACHMENT

Knuckle Arm Thumb for 509, 511, Field Installed Option, Order as Needed

1шт.

54

84150420

ATTACHMENT

Knuckle Arm Thumb for 6100, 6120, Field Installed Option, Order as Needed

1шт.

55

87034127

ATTACHMENT

Hydraulic Thumb for 509, 511, Field Installed Option, Order as Needed

1шт.

56

84150423

ATTACHMENT

Hydraulic Thumb for 6100, 6120, Field Installed Option, Order as Needed

1шт.

57

87034128

HYDRAULIC EQUIPMENT

2-Way Aux Kit for 509, 511, For Hydraulic Thumb, Hammer and Auger Applications, Field Installed Option, Order as Needed

1шт.

58

84150412

HYDRAULIC EQUIPMENT

2-Way Aux Kit for 6100, For Hydraulic Thumb, Hammer and Auger Applications, Field Installed Option, Order as Needed

1шт.

59

84150414

HYDRAULIC EQUIPMENT

2-Way Aux Kit for 6120, For Hydraulic Thumb, Hammer and Auger Applications, Field Installed Option, Order as Needed

1шт.

60

87034129

STABILIZER

Vertical for 509, 511, Field Installed Option, Order as Needed

1шт.

61

84150226

STABILIZER

Vertical for 6100, 6120, Field Installed Option, Order as Needed

1шт.
