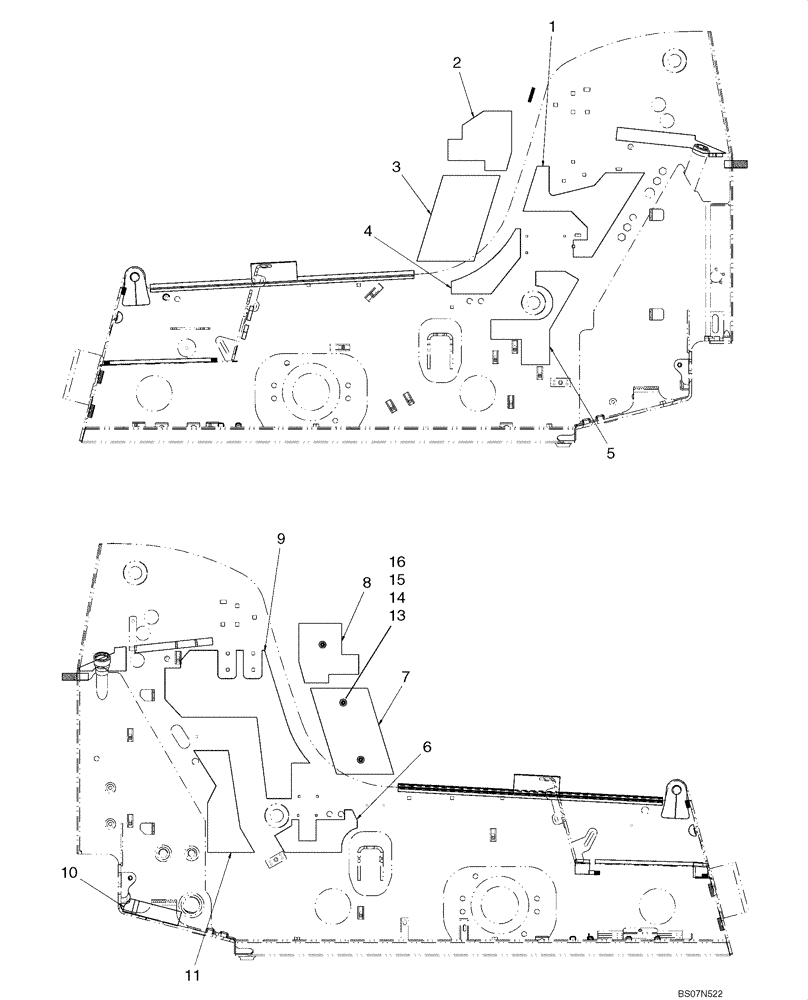

Запчасти Case 445CT (09-66) - NOISE CONTROL (EUROPE) (09) - CHASSIS

1

87715291

FOAM INSULATION

Pad, RH Tower

1шт.

2

87714956

FOAM INSULATION

Pad, ROPS Right; If Used

1шт.

3

87461281

PAD

Pad, ROPS

1шт.

4

87715290

FOAM INSULATION

Pad, RH Tower

1шт.

5

87699781

FOAM INSULATION

Pad, Sound RH Tower

1шт.

6

87699780

FOAM INSULATION

Pad, Sound

1шт.

7

87460185

PAD

Pad, ROPS

1шт.

8

87714955

FOAM INSULATION

Pad, ROPS Left; If Used

1шт.

9

87721310

FOAM INSULATION

Sound Pad, LH Tower; No Longer Used, Order 87740678

1шт.

9

87740678

FOAM INSULATION

Sound Pad, LH Tower

1шт.

10

87700729

FOAM INSULATION

Pad, Sound

1шт.

11

87444362

PAD

1шт.

12

87461957

STOP

Throttle Stop; Not Illustrated

1шт.

13

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

3-2шт.

14

9628098

NUT,M8 x 1.25, Cl 10

3-2шт.

15

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3-2шт.

16

86639313

WASHER,9mm ID x 24mm OD x 2mm Thk

3-2шт.
