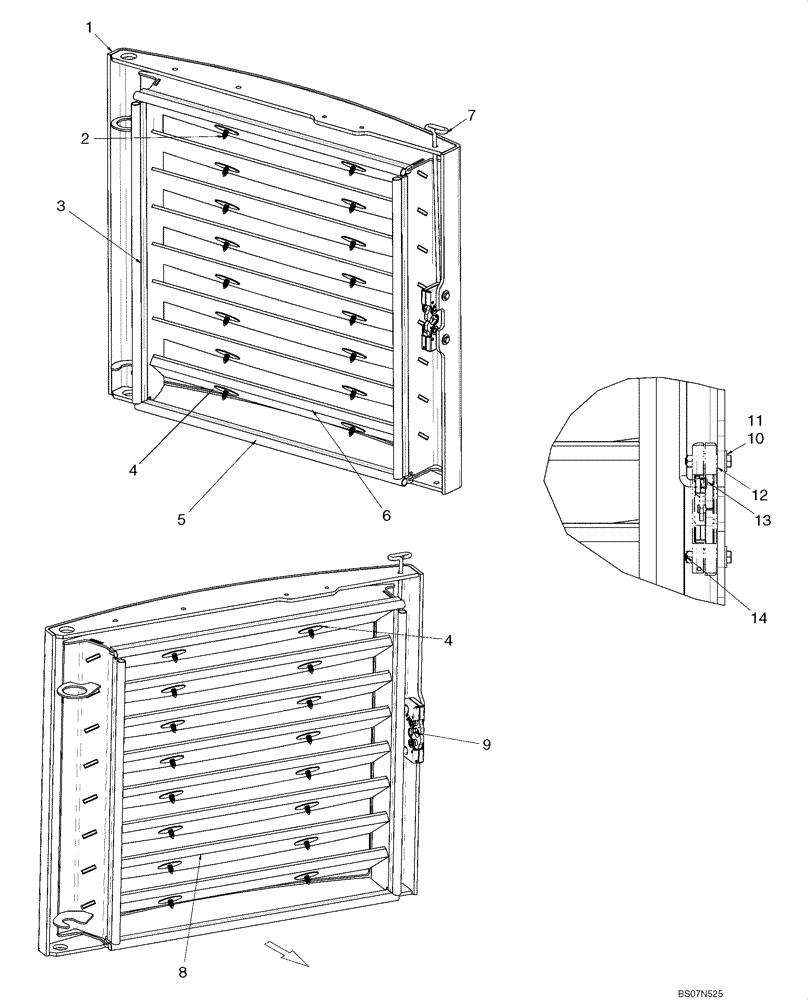

Запчасти Case 445CT (09-57) - REAR DOOR (EUROPE) (09) - CHASSIS

1

87701662

DOOR

Rear Door, Europe

1шт.

2

348452A1

FASTENER,Push-In, 37mm L, Nylon

16шт.

3

87648128

RUBBER SEAL,562mm L

Bulb Seal

2шт.

4

348434A1

WASHER,7.14mm ID x 44.5mm OD x 1.3mm Thk

16шт.

5

87578980

RUBBER SEAL,590mm L

Bulb Seal

2шт.

6

87701867

FOAM INSULATION

1шт.

7

87606604

ROD

Latch Pull Rod

1шт.

8

87701784

FOAM INSULATION

7шт.

9

87585878

LATCH

Latch

1шт.

10

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

11

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

2шт.

12

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

13

380751A1

NUT

1шт.

14

87030561

NUT,M6 x 1, Cl 8

2шт.
