Запчасти Case 445CT (09-52A[02]) - HEATER SYSTEM 3-WAY WATER SUPPLY VALVE (09) - CHASSIS

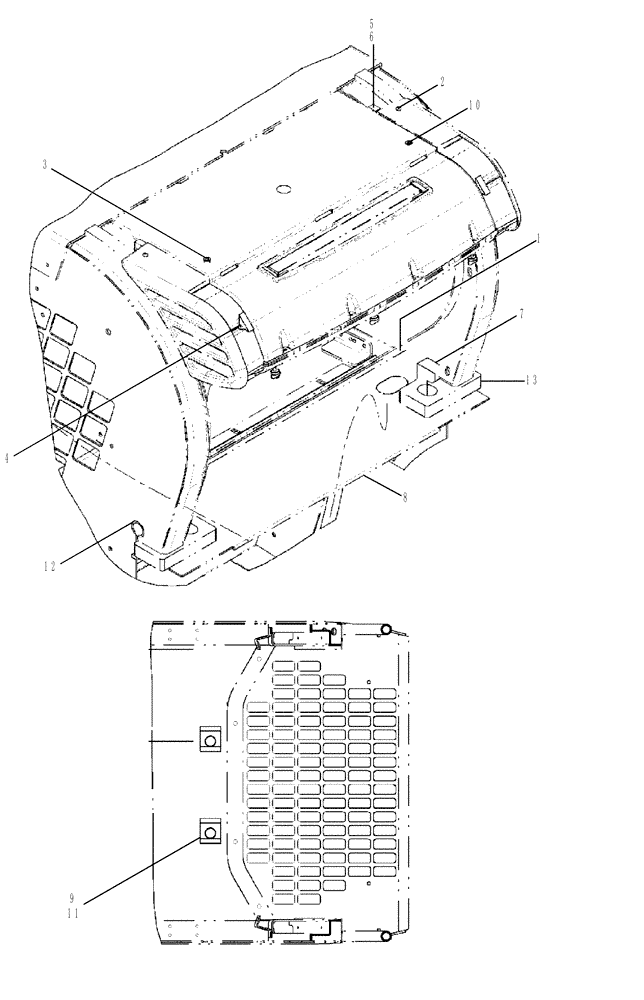

Схема запчастей Case 445CT - (09-52A[02]) - HEATER SYSTEM 3-WAY WATER SUPPLY VALVE (09) - CHASSIS
1
7
9
12
3
5
2
13
11
4
6
8
10

Артикул

Название

Примечание

Количество

1

291809

SEALING STRIP

Sealing Strip

1шт.

2

87035391

SELF-TAP SCREW,Pan Hd, M4.8 x 38

2шт.

3

87436247

THREADED INSERT

2шт.

4

87462144

INSULATION,25.4mm W x 1070mm L x 12.7mm Thk

Side Screen

3шт.

5

87492414

PLATE

Cover HVAC

1шт.

6

87492860

SELF-TAP SCREW,1/4" - 20 x 3/4"

3шт.

7

87496285

FOAM INSULATION

2шт.

8

87661763

RUBBER SEAL

Rubber, Adhesive Bulb

1шт.

9

87713668

FASTENER

8шт.

10

87742340

SCREW,Pan, M6 x 25mm, Cl 4.8

2шт.

11

87743081

FASTENER

2шт.

12

87746892

DECAL

Key Blank

2шт.

13

381176A2

SEALING STRIP,12.7mm W x 844mm L x 6.35mm Thk

Breast Plate

1шт.

Выбрано товаров: 13
