Запчасти Case 445CT (09-49) - RADIO - SPEAKERS AND HOUSING (09) - CHASSIS

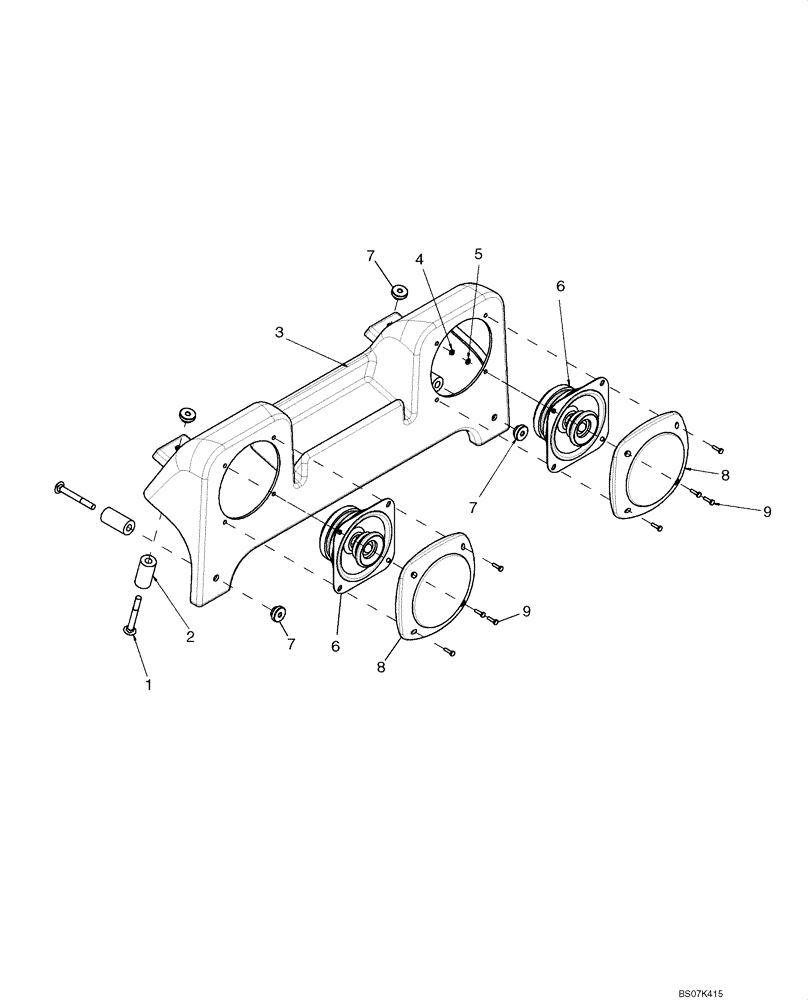

Схема запчастей Case 445CT - (09-49) - RADIO - SPEAKERS AND HOUSING (09) - CHASSIS
7
3
2
7
5
9
6
8
7
8
6
4
1
9

Артикул

Название

Примечание

Количество

1

280498

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 2 1/4", Gr 5

4шт.

2

87668006

SPACER

Spacer, 8.26 ID X 19.05 OD X 38.1 Length

4шт.

3

87627524

HOUSING

Speaker Housing

1шт.

4

86508812

NUT,M3, Cl 8

8шт.

5

86639310

WASHER,3.2mm ID x 7mm OD x 0.5mm Thk

8шт.

6

87743001

SPEAKER

4 in. Speaker With Speaker Grill; Incl 8; Replaces 87672222

2шт.

7

87667727

PUSH-ON NUT

Nut, Plastic Thumb

4шт.

8

NSS

NOT SOLD SEPARAT

Speaker Grill; Order Ref 6, Speaker With Grill

2шт.

9

86599775

SCREW,M3 x 0.5 x 14.4mm OAL, Cl 4.8

If Used

8шт.

9

86511817

SCREW,Pan, M3 x 0.5 x 20mm, Cl 4.8

Screw, M3 X 20 PHD Full H 4.8 Znd

8шт.
