Запчасти Case 445CT (09-42) - REAR WINDOW - HEAT AND AIR CONDITIONING (09) - CHASSIS

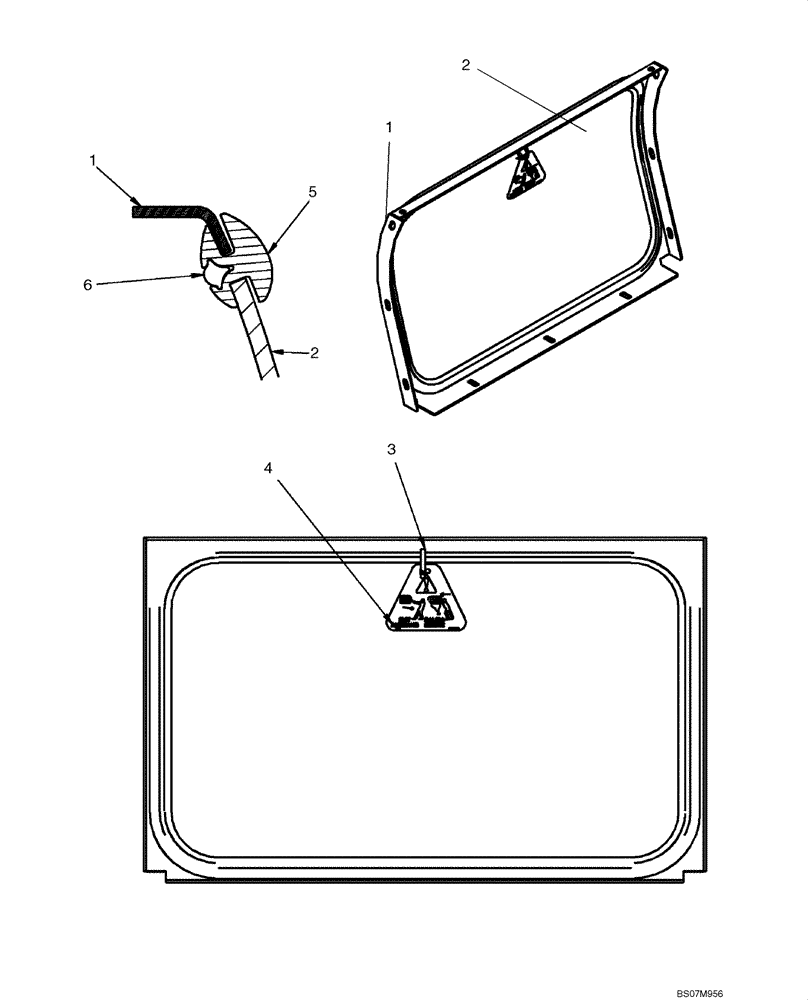

Схема запчастей Case 445CT - (09-42) - REAR WINDOW - HEAT AND AIR CONDITIONING (09) - CHASSIS
2
5
4
6
2
1
3
1

Артикул

Название

Примечание

Количество

87742310

GLASS

Rear Window Assy, HVAC; Incl 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

Frame, Rear HVAC Window

1шт.

2

87641732

WINDOW

Glass, Rear HVAC Window

1шт.

3

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

1шт.

4

87026871

PLASTIC SIGN

Exit Tag

1шт.

5

87641733

PLASTIC

Seal, "H" Channel HVAC Window

1шт.

6

87643811

PLASTIC

Key, Locking HVAC

1шт.

87301340

SEALANT

1 ml Hitachi Gray Poly Sealant; 3.4 ml Required

1шт.

Выбрано товаров: 8
