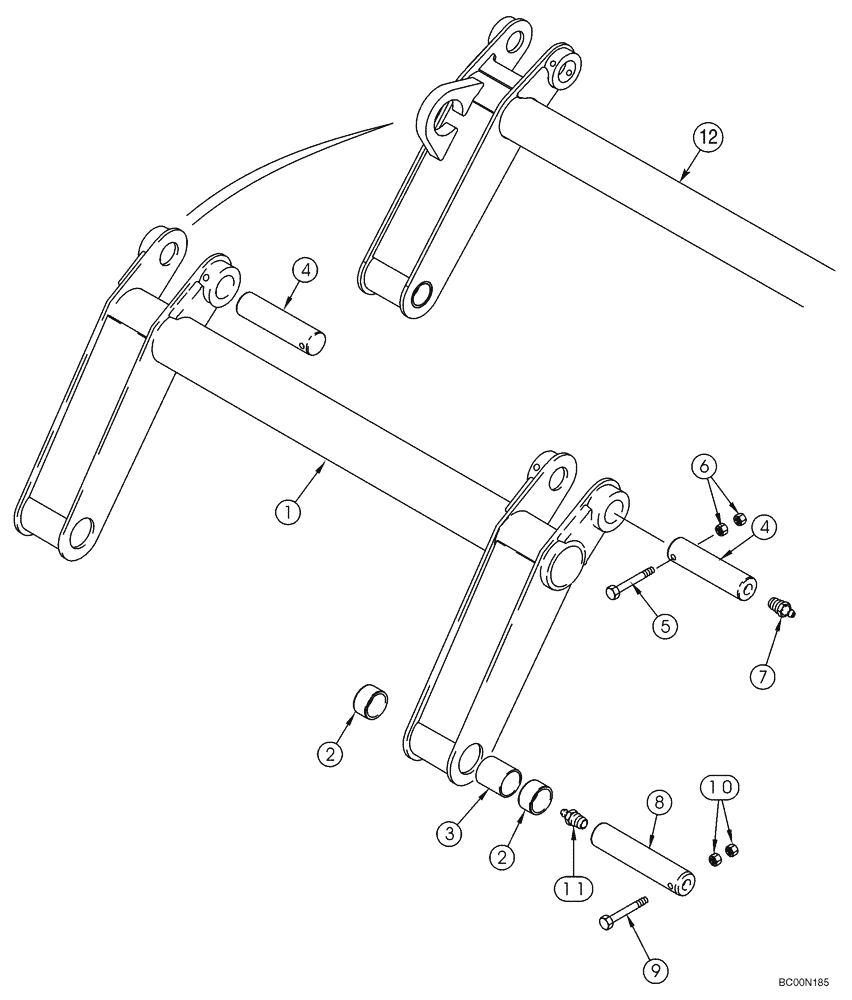

Запчасти Case 445CT (09-04) - ARM, LOADER H-FRAME (09) - CHASSIS

1

277539A2

FRAME ASSY

Incl. 2, 3

1шт.

2

141008A1

BUSHING,45.19mm ID x 55mm OD x 30mm L

4шт.

3

278076A1

SPACER

2шт.

4

139086A1

PIN,45mm OD x 176mm L

2шт.

5

120074

BOLT,Hex, M10 x 90, 8.8

2шт.

6

86512554

NUT,M10 x 1.5, Cl 10

4шт.

7

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

2шт.

8

139087A1

PIN,45mm OD x 212mm L

2шт.

9

120075

BOLT,M10 x 1.5 x 106.58mm, Cl 8.8

2шт.

10

86500689

NUT,M10 x 1.5, Cl 10

4шт.

11

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

2шт.

12

402948A1

FRAME ASSY

Models with Deluxe Heater; Incl. Lugs, Which Are Not Serviced Separately; Incl. 277539A2, REF 1

1шт.
