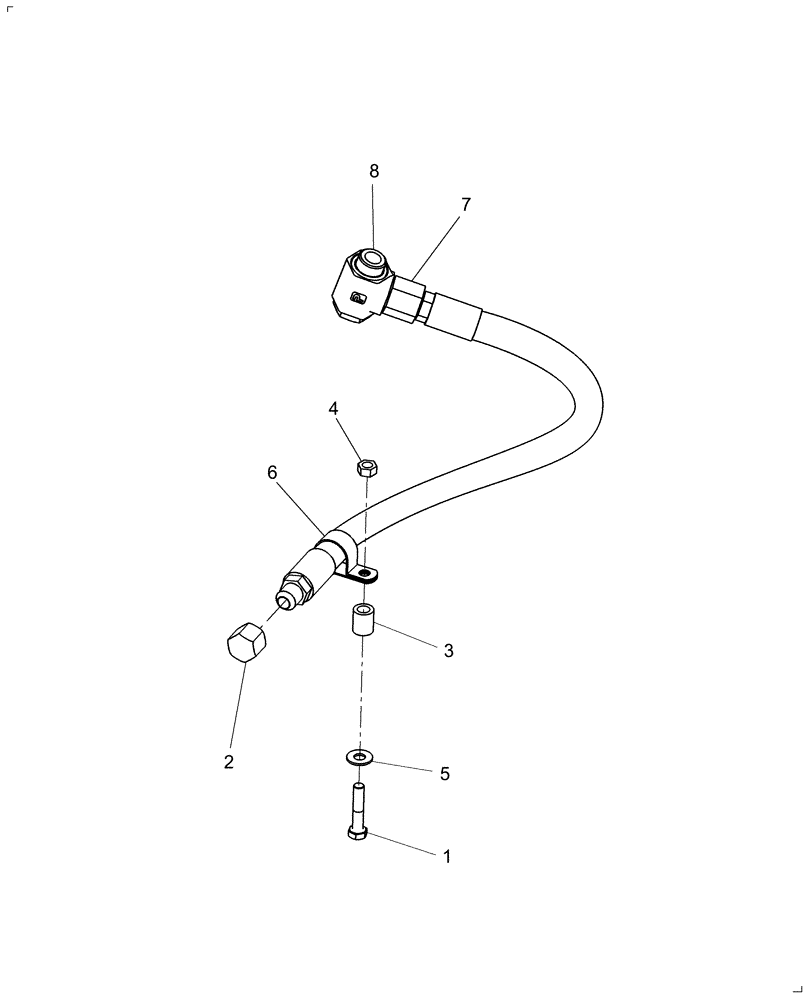

Запчасти Case 445CT (02-08) - REMOTE OIL DRAIN (02) - ENGINE

1

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

1шт.

2

129200

CAP,7/8" - 14 JIC

1шт.

3

229398

SPACER,9.78mm ID x 15.88mm OD x 19.05mm L

1шт.

4

9706690

NUT,M8 x 1.25, Cl 8

1шт.

5

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

6

87307884

CLAMP,27mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

7

87694058

HOSE,12.7mm ID x 730mm L

Remote Oil Drain, 730mm

1шт.

8

87742610

FITTING,M22 x 1.5

Oil Pan

1шт.
