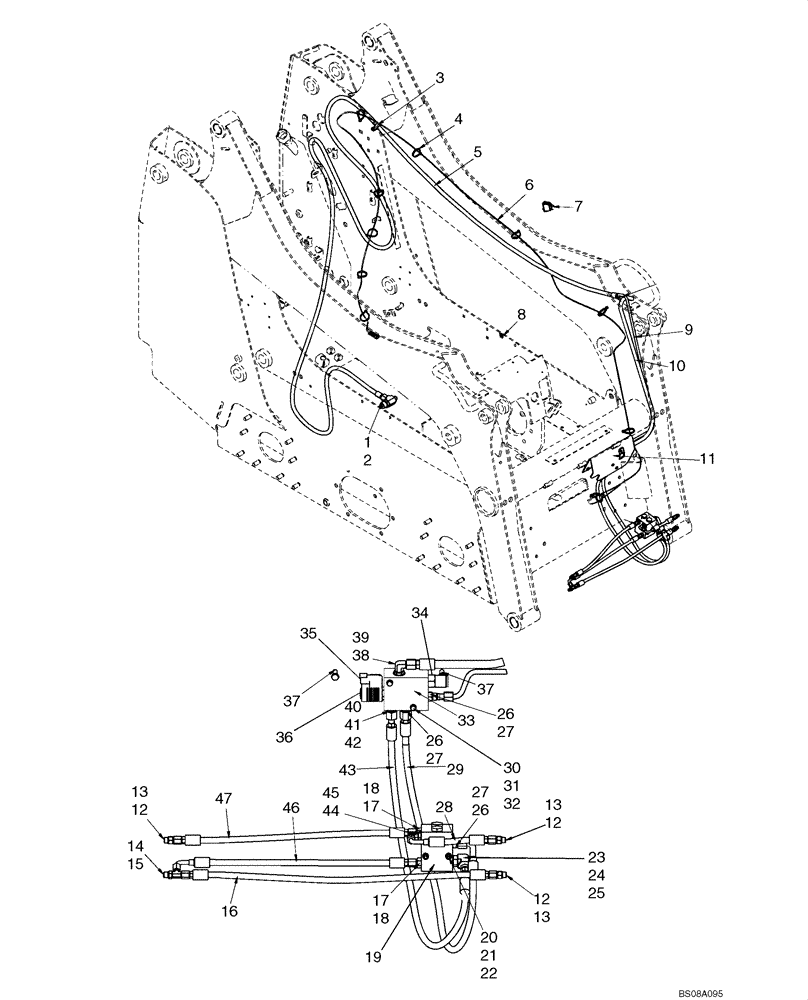

Запчасти Case 445CT (08-13) - HYDRAULICS - COUPLER SYSTEM (08) - HYDRAULICS

87735612

SERVICE KIT

Kit, Hydraulic Coupler; Incl 1 - 47

1шт.

1

87597961

ADAPTER

Tee, Adj Run 37 Fl 5/8 X 3/4 X 5/8; Incl 2

1шт.

2

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

3

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

10шт.

5

87375140

HOSE,9.53mm ID x 5969mm L

Hose, Hydraulic Coupler, 5969mm (235 in.); If Used

1шт.

5

87647037

HYDRAULIC HOSE,10.00 mm ID x 559.00 mm

1шт.

6

87446983

WIRE HARNESS

Harness, Hydraulic Coupler

1шт.

7

87642911

SWITCH

Rocker Switch, Hydraulic Coupler

1шт.

8

A149800

FUSE,10 Amp

Fuse, 10A

1шт.

9

87434110

HYD TUBE,9.53 mm OD

1шт.

10

87375142

HOSE,9.53mm ID x 1041mm L

Hose, Hydraulic Coupler, 1041mm (41 in.); If Used

1шт.

11

87426838

BRACKET

Valve Bracket

1шт.

10

87647038

HYDRAULIC HOSE,10.00 mm ID x 2032.00 mm

1шт.

12

265235

HYD CONNECTOR,7/16" - 20 ORB x 7/16" - 20 JIC

Incl 13

3шт.

14

86513019

TEE,1-5/16" - 12 ORB x 1-1/4" JIC x 1-1/4" JIC

Incl 15

1шт.

13

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

15

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

16

87437472

HOSE ASSY.

Hose, Coupler Cylinder Connection, 640mm (25 3/16 in.)

1шт.

17

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl 18

2шт.

19

294741A1

CHECK VALVE

Valve, P/O Double Check

1шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

86508570

BOLT,Hex, M6 x 80mm OAL, Cl 8.8

2шт.

21

86624181

WASHER,M6

4шт.

22

87030561

NUT,M6 x 1, Cl 8

2шт.

23

9840542

ELBOW,90 Degree, 9/16"-18 x 9/16"-18, Adj, ORFS

Incl 24, 25

1шт.

24

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

26

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 27

3шт.

28

294747A1

HOSE ASSY.,6.35mm ID x 176mm L

Hose, Coupler Cylinder Base, 176mm (6 15/16 in.)

1шт.

27

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

29

87437471

HOSE ASSY.,6.35mm ID x 860mm L

Hose, Coupler, 860mm (33 7/8 in.)

1шт.

30

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

31

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

32

353308

NUT,M6 x 1.0, Cl 8

2шт.

33

87421480

HYDRAULIC VALVE

Incl 34, 35, 36

1шт.

34

87562923

VALVE

Sequence Valve

1шт.

35

87433496

COIL

1шт.

36

87562926

VALVE

Solenoid Valve

1шт.

37

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

38

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 39

1шт.

39

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

40

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Incl 41, 42

1шт.

41

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

42

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

43

87426493

HOSE ASSY.,6.35mm ID x 830mm L

Hose, Coupler, 830mm (32 11/16 in.)

1шт.

44

86512934

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 9/16"-18, O-Ring

Incl 45

1шт.

45

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

46

87437473

HOSE ASSY.

Hose, Coupler Cylinder Rod End, 500mm (19 11/16 in.)

1шт.

47

294884A1

HOSE ASSY.

Hose, Coupler Cylinder Base, 506mm (19 15/16 in.)

1шт.
