Запчасти Case 445CT (08-01) - HYDRAULICS - LOADER LIFT (08) - HYDRAULICS

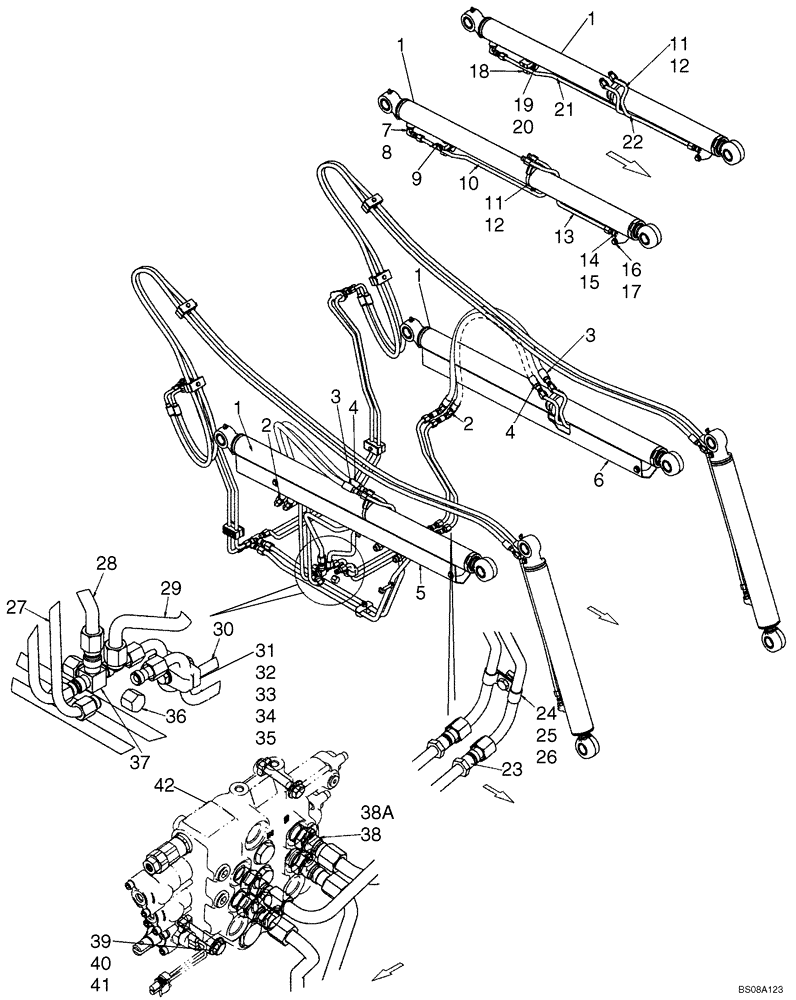

Схема запчастей Case 445CT - (08-01) - HYDRAULICS - LOADER LIFT (08) - HYDRAULICS
32
2
31
9
41
14
19
23
17
29
4
16
15
38
1
22
3
38a
37
12
28
26
12
35
3
6
4
27
21
10
7
13
40
11
36
20
18
33
25
39
1
1
2
34
24
11
5
30
1
8
42

Артикул

Название

Примечание

Количество

1

189980A3

CYLINDER ASSY.,Double Acting, 44.4mm Rod, 1049mm Stroke

Cylinder, Lift; See Fig 08-03

2шт.

2

248973

ELBOW,90º Blkhd, 3/4"-16, 37º x 3/4"-16, 37º

4шт.

3

258893A4

HOSE ASSY.,12.7mm ID x 922mm L

Hose, Lift Cylinder Rod End, 922mm (36 5/16 in.)

2шт.

4

258892A3

HOSE ASSY.,12.7mm ID x 892mm L

Hose, Lift Cylinder Base End, 892mm (35 1/8 in.)

2шт.

5

258904A2

PROTECTOR

Cylinder Cover, RH

1шт.

6

258905A2

PROTECTOR

Cylinder Cover, LH

1шт.

7

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl. 8

2шт.

8

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

9

197509A1

PROTECTOR

2шт.

10

282734A4

TUBE,651, 126 mm Length

Tube, Lift Cylinder Base End, RH

1шт.

11

87741013

SADDLE

Dual Tube Saddle

2шт.

12

86625033

HOSE CLAMP,77.7mm - 101.6mm, Worm Gear

2шт.

13

282736A5

TUBE,454, 96 mm Length

Tube, Lift Cylinder Rod End, RH

1шт.

14

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 15

2шт.

15

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

16

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

6шт.

17

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

6шт.

18

197508A1

HOLDER

2шт.

19

9628098

NUT,M8 x 1.25, Cl 10

2шт.

20

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

4шт.

21

282738A4

TUBE,12.7 mm OD, 651, 126 mm Length

Tube, Lift Cylinder Base End, LH

1шт.

22

282740A5

TUBE,454, 112 mm Length

Tube, Lift Cylinder Rod End, LH

1шт.

23

87620979

HYD TUBE,12.7 mm OD

Tube, Floor To Wall

2шт.

24

708182

CLAMP,1/2", Insul, 3/8" Bolt

2шт.

25

87030567

SQUARE NUT

1шт.

26

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

27

87520118

HYD TUBE,9.4 mm ID x 12.7 mm OD

2шт.

28

87520120

HYD TUBE,15.9 mm OD x 350, 346.7 mm L

Tube, Valve Lift (Lower)

1шт.

29

87667455

HYD TUBE,15.9 mm OD

Tube, Valve Lift (Raise)

1шт.

30

87435214

HYD TUBE,12.7 mm OD x 550, 83 mm L

Tube, Lift, LH

2шт.

31

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

2шт.

32

140017

WASHER,M10 x 20mm OD x 2mm Thk

2шт.

33

D120679

CLAMP,Tube, 1/2"

1шт.

34

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

35

86512554

NUT,M10 x 1.5, Cl 10

2шт.

36

262159

CAP,3/4" - 16 Fem JIC

2шт.

37

280107A1

TEE

1шт.

38

325059

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Incl 38A

4шт.

38a

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

4шт.

39

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

40

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

41

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

2шт.

42

87583285

VALVE

Control Valve, Manual Control; See Fig 08-17

1шт.

Выбрано товаров: 43
