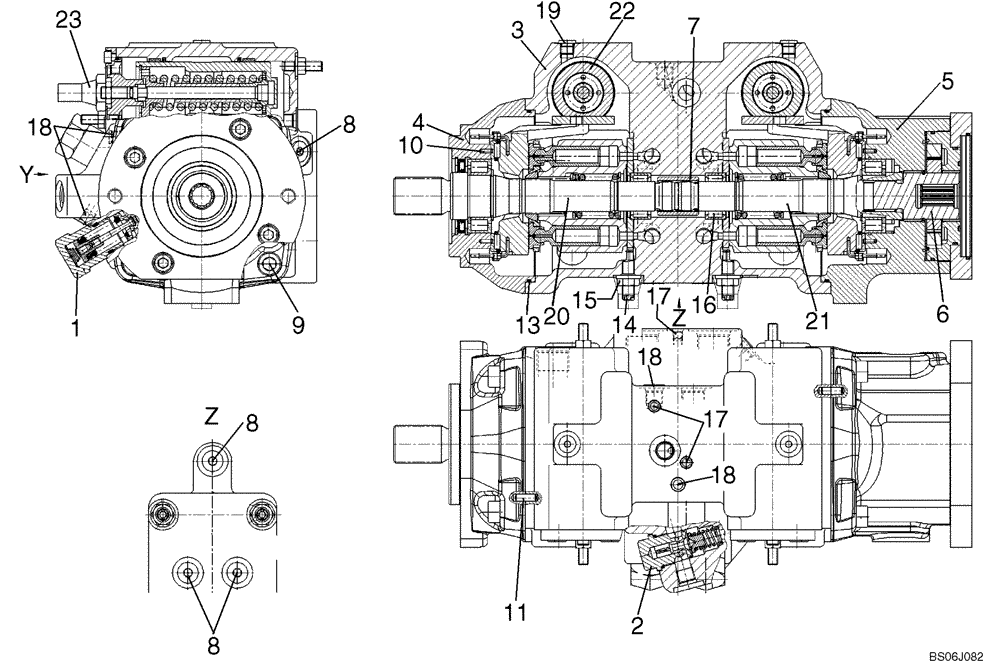

Запчасти Case 445CT (06-38) - PUMP, TANDEM - REXROTH A22 (445CT WITH PILOT CONTROL) (06) - POWER TRAIN

87546977

PUMP,46 CC

Rexroth Pump A22

1шт.

87546977R

REMAN-HYD PUMP

Remanufactured Hydraulic Pump

1шт.

87546977C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

87614031

VALVE PRESSURE RELIE

With Orifice; See Fig. 06-46

4шт.

2

87553604

VALVE PRESSURE RELIE

15 - 30 Bar R-Ring Viton; See Fig. 06-41

1шт.

3

87553605

HOUSING

Pump

1шт.

4

87553606

FLANGED BEARING

Bearing

1шт.

5

87553607

FLANGED BEARING

Bearing With Bushing

1шт.

6

87553608

ASSEMBLY

Internal Gear Pump; See Fig. 06-42

1шт.

7

87553609

COUPLING

Through Drive

1шт.

8

87553611

LOCK SCREW

9/16 - 18UNF

5шт.

9

87553613

HEX SOC SCREW

Socket Head

8шт.

10

87553614

PIN

Clamping

4шт.

11

87553615

PIN

Cylinder

2шт.

12

87553616

O-RING

Not Illustrated

1шт.

13

87553617

O-RING

O-Ring

2шт.

14

87553618

SCREW

Eccentric Screw

2шт.

15

87553619

LOCK NUT

Seal

2шт.

16

87553620

ROLLER BEARING

Plain

2шт.

17

87553621

PIN

Double Break Off

2шт.

18

87553622

PIN

Double Break Off

2шт.

19

87553612

LOCK SCREW

7/16 - 20UNF

2шт.

20

87553599

SERVICE KIT

Rotary Group, RH Rotation; See Fig. 06-43

1шт.

21

87553600

SERVICE KIT

Rotary Group, LH Rotation; See Fig. 06-44

1шт.

22

87553601

CONTROL

Hydraulic; See Fig. 06-45

2шт.

23

87614027

CARTRIDGE

HD 300 Bar; See Fig. 06-39

1шт.

87553610

BEARING

Bushing

1шт.

87627399

CAP

3шт.
