Запчасти Case 445CT (06-24) - HYDROSTATICS - RESONATOR (EUROPE) (06) - POWER TRAIN

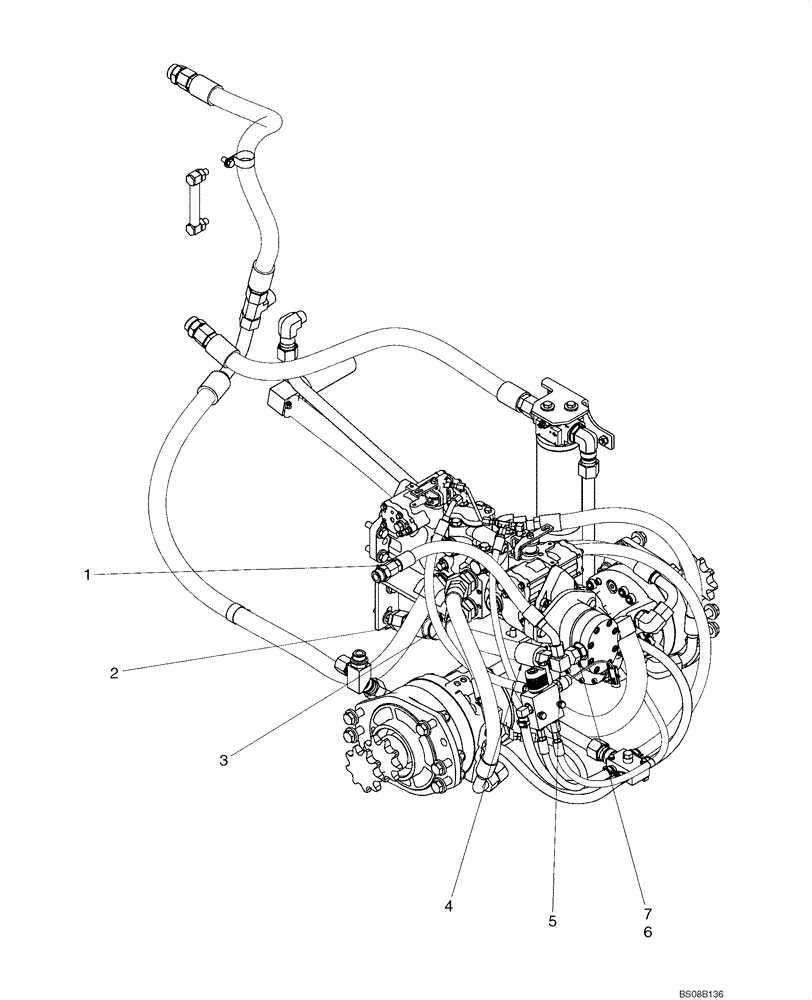

Схема запчастей Case 445CT - (06-24) - HYDROSTATICS - RESONATOR (EUROPE) (06) - POWER TRAIN
3
1
2
7
6
5
4

Артикул

Название

Примечание

Количество

1

87719068

HOSE

Hose, Valve Supply, 495mm (19 1/2 in.)

1шт.

2

9790527

PLUG,1-5/16" - 12 JIC

1шт.

3

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

1шт.

4

87717826

HOSE,25.4mm ID x 475mm L

Resonator, 475mm (18 11/16 in.)

1шт.

5

87441649

ADAPTER

1шт.

6

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 7

1шт.

7

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Выбрано товаров: 7
