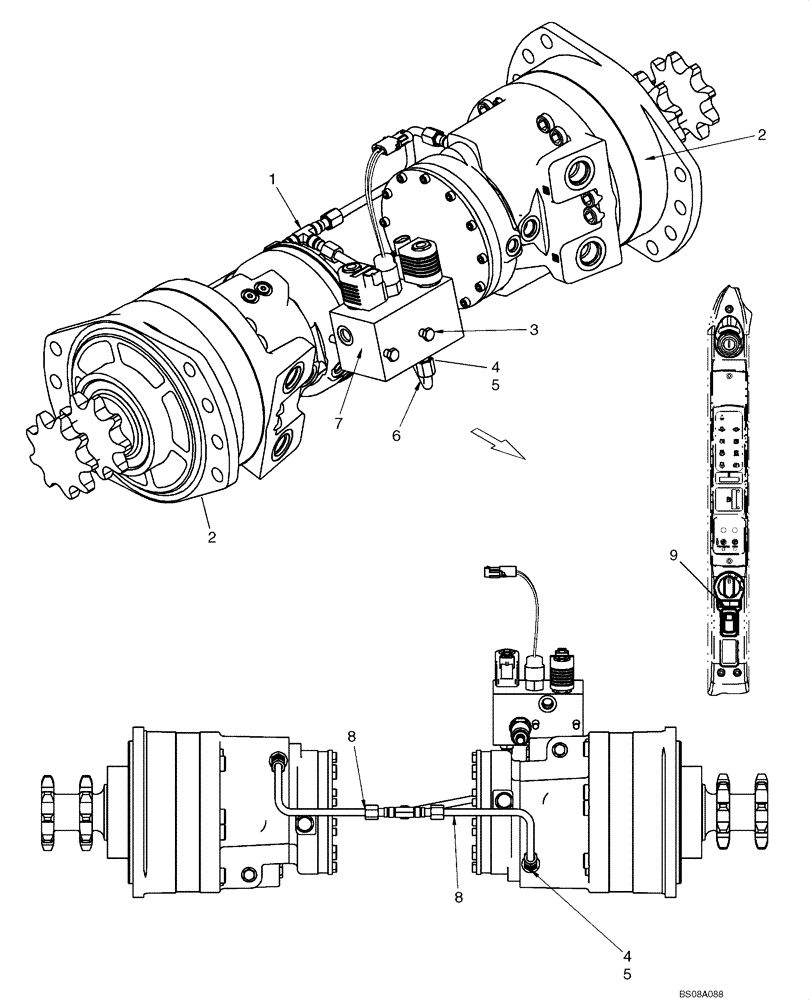

Запчасти Case 445CT (06-18) - HYDROSTATICS - TWO SPEED (MECHANICAL CONTROL) (06) - POWER TRAIN

1

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

2

87035452

HYDRAULIC MOTOR

Drive Motor, Two Speed; See Fig 06-31 - 06-33

2шт.

2

87035452R

REMAN-HYD MOTOR

Remanufactured Hydraulic Motor

2шт.

2

87035452C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

3

412215

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

2шт.

4

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 5

3шт.

5

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

6

87015944

HYD TUBE,9.53 mm DIA x 144, 325.5 mm L

1шт.

7

87429625

HYDRAULIC VALVE

Brake/Two Speed Valve; See Fig 06-19;If Used

1шт.

7

87756431

BRAKE VALVE

Brake/Two Speed Valve; See Fig 07-03

1шт.

8

87015943

HYD TUBE,9.53 mm DIA x 153.1, 64.9 mm L

2шт.

9

87634136

SWITCH

Indicator, High Speed

1шт.
