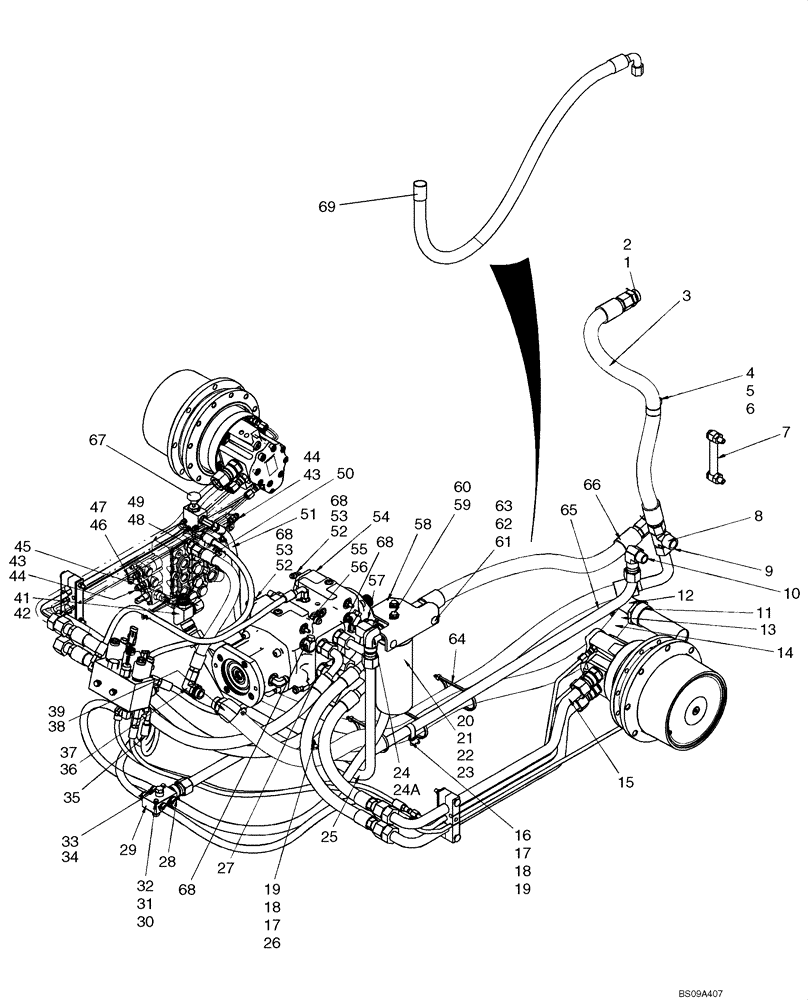

Запчасти Case 445CT (06-16) - HYDROSTATICS - PUMP SUPPLY AND RETURN (445CT WITH PILOT CONTROL) (06) - POWER TRAIN

1

378970

HYD CONNECTOR,1-5/16" - 12 ORB x 1-5/16" - 12 JIC

Incl 2

2-3шт.

2

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

3

87659201

HOSE

Hose, Upper Cooler, 885mm (34 13/16 in.)

1шт.

4

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

5

87648719

CLAMP,36.5mm, Coat, 10.3mm Bolt Hole, P Type

Clamp, 36.5mm 3/8 in. Bolt

1шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

7

87374752

GAUGE

Liquid Level Gauge

1шт.

8

87396046

HOSE

Hose, Charge Suction, 1500mm (59 1/16 in.) Length; No Longer Used, Order 87719074

1шт.

8

87719074

HOSE

Hose, Charge Suction, 1525mm (60 in.) Length

1шт.

9

9790547

TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br

1шт.

10

9615396

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 3/4"-14, NPTF

If Used

1шт.

11

189310A1

STRAINER ASSY.

1шт.

12

87029969

HYD CONNECTOR

1шт.

13

87039085

HOSE CLAMP,32mm - 54mm

2шт.

14

87597549

HYDRAULIC HOSE,31.75 mm ID x 1320.00 mm, SAE 100R4

1шт.

15

REF

INSTRUCTION

Drive Motor Hydrostatics; Under Carriage Plumbing

1шт.

16

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

17

122158A1

NUT,M8, U

2шт.

18

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

19

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

If Used

2шт.

20

87430661

FILTER

Incl 21 - 23

1шт.

21

N13268

PRESSURE SWITCH

1шт.

22

87010593

ELEMENT

Filter Element, CASE

1шт.

23

87439984

FILTER HEAD

Head Assembly

1шт.

24

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl 24A

1шт.

24a

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

25

87419597

HYD TUBE,25.40 mm OD x 658.9, 414.8 mm L

Tube, Valve Outlet

1шт.

26

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

27

87554297

HYD TUBE,10.2 mm ID x 12.7 mm OD x 147, 99.2 mm L

Tube, Tandem Pump Supply

1шт.

28

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

2шт.

29

87437351

MANIFOLD

Return Oil Manifold

1шт.

30

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.

31

87404992

SQUARE NUT,M6 x 1.0, Cl 8

2шт.

32

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

2шт.

33

76349

PLUG,9/16" - 18 ORB

Incl. 34

1шт.

34

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

35

87597998

HOSE

Hose, Brake RH, 750mm (29 1/2 in.)

2шт.

36

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 37

1шт.

37

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

38

87033824

FITTING,45 Degree, 1 1/4" Hose x 1 5/16"-12 ORB Beaded

Incl 39

1шт.

39

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

41

87421217

ADAPTER,1-5/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl 42

1шт.

42

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

43

84384

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

Incl 44

3шт.

44

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

45

219606

CAP,1-1/16" - 12 JIC

1шт.

46

87593247

ELBOW

Incl 47

1шт.

47

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

48

86507102

HYD CONNECTOR,1-1/16" - 12 ORB x 7/8" - 14 JIC

Incl 49

1шт.

49

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

50

87597562

HOSE,15.88mm ID x 500mm L

Hose, Valve Supply, 500mm (19 11/16 in.)

1шт.

51

87597582

HOSE,9.53mm ID x 650mm L

Hose, Dump Valve Supply, 650mm (25 9/16 in.); If Used

1шт.

51

87547043

HOSE,9.53mm ID x 773mm L

Dump Valve Supply

1шт.

52

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl 53

2шт.

53

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

54

87546977

PUMP,46 CC

Rexroth Pump, A22 - 360 Bar, 5.7mm Orifice; See Fig 06-38

1шт.

54

87546977R

REMAN-HYD PUMP

Remanufactured Hydraulic Pump

1шт.

54

87546977C

CORE-HYDRAULIC PUMP

Return Number

1шт.

55

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Incl 56; If Used

1шт.

55

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Connector 37FL X ORB -08; Incl 56

1шт.

56

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

57

87564723

WASHER,15.3mm ID x 28.5mm OD x 6mm Thk

Washer, 15.3 X 28.5 X 6mm

4шт.

58

87707681

ANGLE

Filter Mount; Replaces 87458340

1шт.

59

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

60

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

2шт.

61

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

2шт.

62

100016

NUT,M10 x 1.5, Cl 8

2шт.

63

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

64

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

3шт.

65

87437352

HYD TUBE,25.40 mm OD

Tube, Case Drain

1шт.

66

87659213

HOSE

Hose, Lower Cooler, 1010mm (39 3/4 in.)

1шт.

67

87568435

DECAL

Boom override

1шт.

68

87604074

ADAPTER

6FJ x 6 MJ W/ 1.2 Orifice

4шт.

69

87659222

Oil Cooler Bypass; See Fig 08-10A

1шт.
