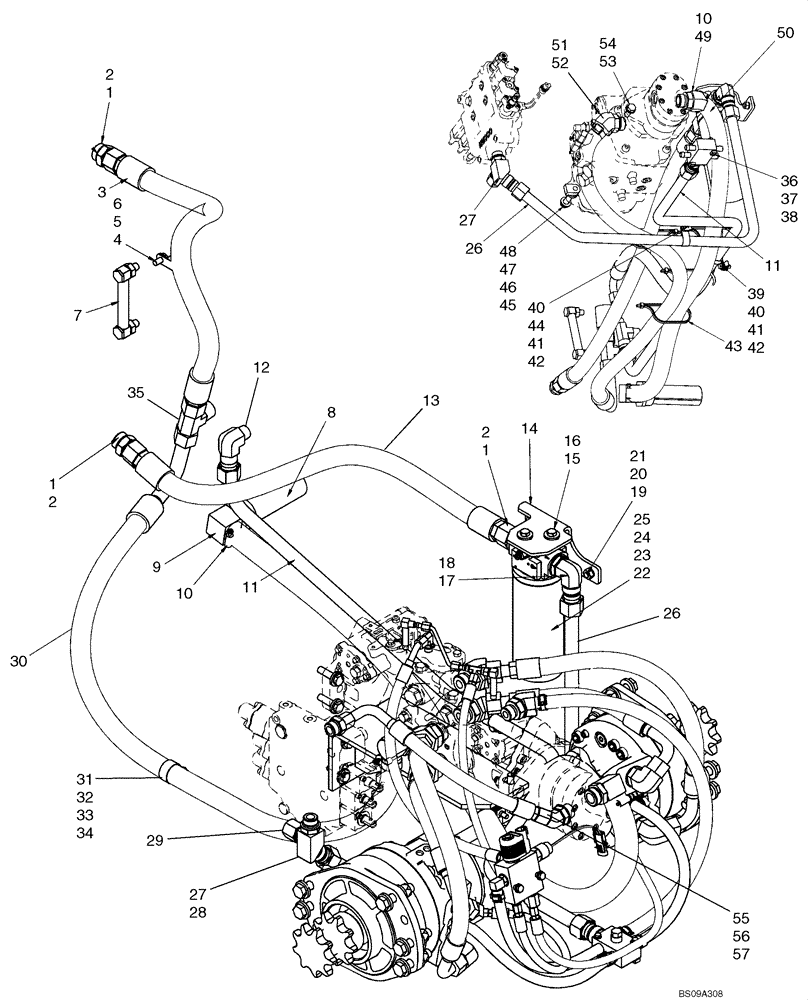

Запчасти Case 445CT (06-11) - HYDROSTATICS - PUMP SUPPLY AND RETURN (445 WITH PILOT CONTROL) (06) - POWER TRAIN

1

378970

HYD CONNECTOR,1-5/16" - 12 ORB x 1-5/16" - 12 JIC

Incl 2

2-3шт.

2

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

2-3шт.

3

87659201

HOSE

Hose, Upper Cooler, 885mm (34 13/16 in.)

1шт.

4

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

1шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

6

87648719

CLAMP,36.5mm, Coat, 10.3mm Bolt Hole, P Type

Clamp, Insulated 36.5mm X 3/8 Bolt

1шт.

7

87374752

GAUGE

Liquid Level Gauge

1шт.

8

189310A1

STRAINER ASSY.

Suction Line Filter

1шт.

9

87029969

HYD CONNECTOR

Stem, 90 Bead Hose 1.25 ID X 1.25 NPTF

1шт.

10

87039085

HOSE CLAMP,32mm - 54mm

2шт.

11

87437352

HYD TUBE,25.40 mm OD

Case Drain Tube

1шт.

12

9615396

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 3/4"-14, NPTF

If Used

1шт.

13

87659213

HOSE

Hose, Lower Cooler, 1010mm (39 3/4 in.)

1шт.

14

87707681

ANGLE

Filter Mounting Bracket

1шт.

15

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

16

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

2шт.

17

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl 18

1шт.

18

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

19

86633356

CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8

2шт.

20

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

21

100016

NUT,M10 x 1.5, Cl 8

2шт.

22

87430661

FILTER

Incl 23 - 25

1шт.

23

N13268

PRESSURE SWITCH

1шт.

24

87010593

ELEMENT

Filter

1шт.

25

87439984

FILTER HEAD

Head Assembly

1шт.

26

87419597

HYD TUBE,25.40 mm OD x 658.9, 414.8 mm L

Valve Outlet

1шт.

27

87421217

ADAPTER,1-5/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 ORB

45 Deg With Side Outlet

1шт.

28

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

29

219606

CAP,1-1/16" - 12 JIC

1шт.

30

87396046

HOSE

Charge Suction, 1500mm (59 1/16 in.); If Used

1шт.

30

87719074

HOSE

Charge Suction, 1525mm (60.04 in.)

1шт.

31

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

If Used

1шт.

32

80681

LOCK WASHER,5/16"

If Used

1шт.

33

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

If Used

1шт.

34

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

If Used

1шт.

35

9790547

TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br

1шт.

36

86977790

BOLT,Hex, M6 x 45mm, Cl 8.8

2шт.

37

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.

38

87404992

SQUARE NUT,M6 x 1.0, Cl 8

Square M6 1.0Cl 8 Znd

2шт.

39

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

40

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

41

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

2шт.

42

122158A1

NUT,M8, U

2шт.

43

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

3шт.

44

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

45

87016615

WASHER,15.3mm ID x 28.5mm OD x 3mm Thk

2шт.

46

87637186

NUT

M14 Cl 10 Znd

2шт.

47

87564723

WASHER,15.3mm ID x 28.5mm OD x 6mm Thk

15.3 x 28.5 x 6mm

4шт.

48

87556906

BOLT,Hex, M14 x 70mm, Cl 10.9

2шт.

49

87033824

FITTING,45 Degree, 1 1/4" Hose x 1 5/16"-12 ORB Beaded

1шт.

50

87597549

HYDRAULIC HOSE,31.75 mm ID x 1320.00 mm, SAE 100R4

Gear Suction

1шт.

51

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

If Used

1шт.

52

87393628

ADAPTER,1" Hose Barb x 1-5/16" - 12 ORB

90 Deg 1 Hose x 1 5/16 - 12; If Used

1шт.

52

87681206

45 ELBOW

Connector 45 Deg 1 Hose x 1 5/8 - 12; If Used

1шт.

52

87029968

HYD CONNECTOR

Stem 45 Bead Hose 1.0 ID X1-5-16-12 Thd

1шт.

53

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

54

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

55

87597562

HOSE,15.88mm ID x 500mm L

Valve Supply; If Used

1шт.

56

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

If Used

1шт.

57

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

If Used

1шт.
