Запчасти Case 445CT (06-05) - JOYSTICK VALVE KITS - ISO PATTERN, LH (06) - POWER TRAIN

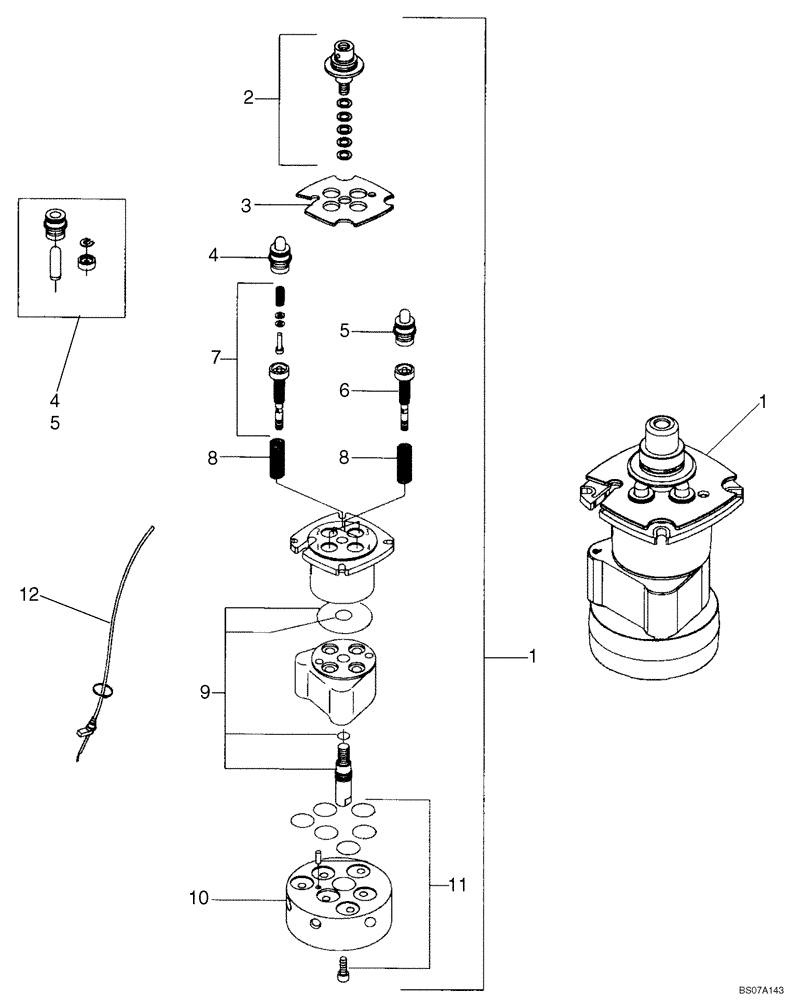

Схема запчастей Case 445CT - (06-05) - JOYSTICK VALVE KITS - ISO PATTERN, LH (06) - POWER TRAIN
7
4
11
6
3
1
5
12
2
10
1
4
8
5
9
8

Артикул

Название

Примечание

Количество

1

87600622

CONTROL BLOCK

Joystick Valve, ISO Pattern

1шт.

2

87548833

SERVICE KIT

Kit, Bent Lever Cardan

1шт.

3

87548835

PLATE

Retaining Plate, Standard

1шт.

4

87614023

KIT

Kit, Hollow Plunger, Use On Ports 1, 3

2шт.

5

87614023

KIT

Kit, Hollow Plunger, Use On Ports 2, 4

2шт.

6

87627518

REGULATOR

Kit, Reg Unit PP C229, Use On Ports 2, 4

2шт.

7

87614017

REGULATOR

Kit, Reg Unit With Plunger, Use On Ports 1, 3

2шт.

8

87614020

SPRING

Kit, Medium Spring

1шт.

9

87548871

SERVICE KIT

Kit, Seal

1шт.

10

87548872

FLANGE

1шт.

11

87548873

SERVICE KIT

Kit, Flange Seal

1шт.

12

87548874

SERVICE KIT

Kit, Cable

1шт.

Выбрано товаров: 12
