Запчасти Case 445CT (06-04B) - HYDROSTATICS - NORTH AMERICAN NOISE CONTROL; IF USED (06) - POWER TRAIN

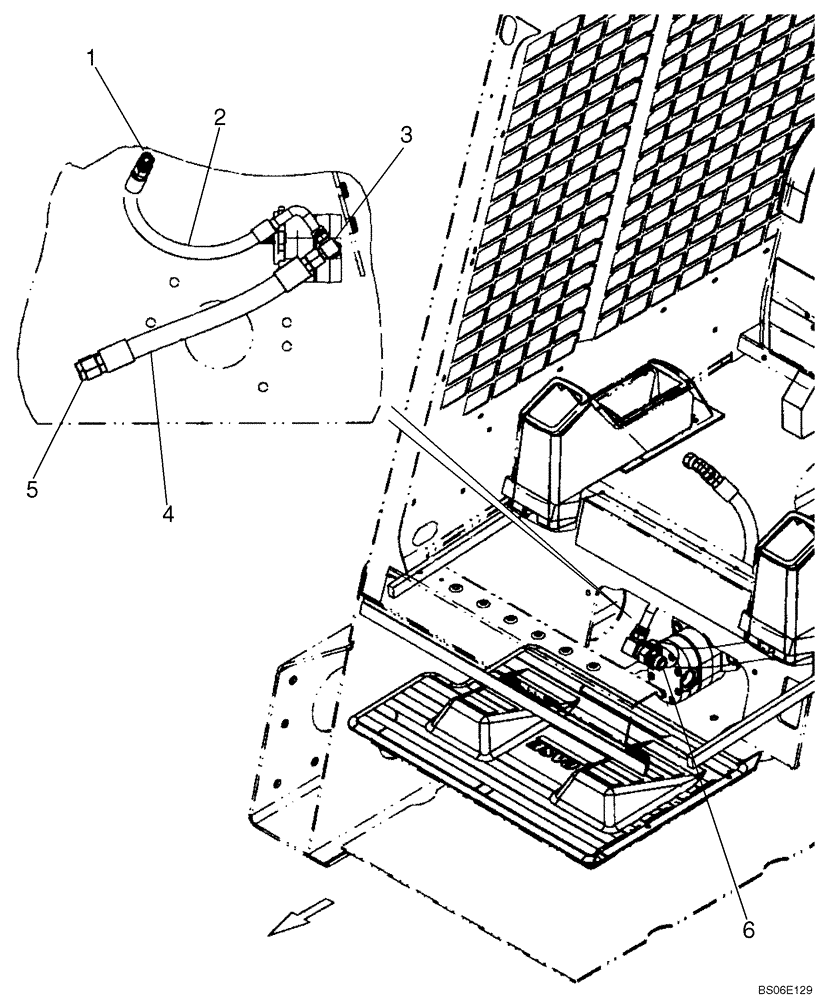

Схема запчастей Case 445CT - (06-04B) - HYDROSTATICS - NORTH AMERICAN NOISE CONTROL; IF USED (06) - POWER TRAIN
2
4
3
6
1
5

Артикул

Название

Примечание

Количество

1

86512960

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

2

REF

INSTRUCTION

Supply; See Figure 06-04 Ref 25 on a Basic Unit

1шт.

3

87441649

ADAPTER

Swivel Tee Side Outlet Reducer

1шт.

4

87462103

HOSE ASSY.

Resonator

1шт.

5

9790527

PLUG,1-5/16" - 12 JIC

1шт.

6

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

Incl 7

1шт.

7

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Выбрано товаров: 7
