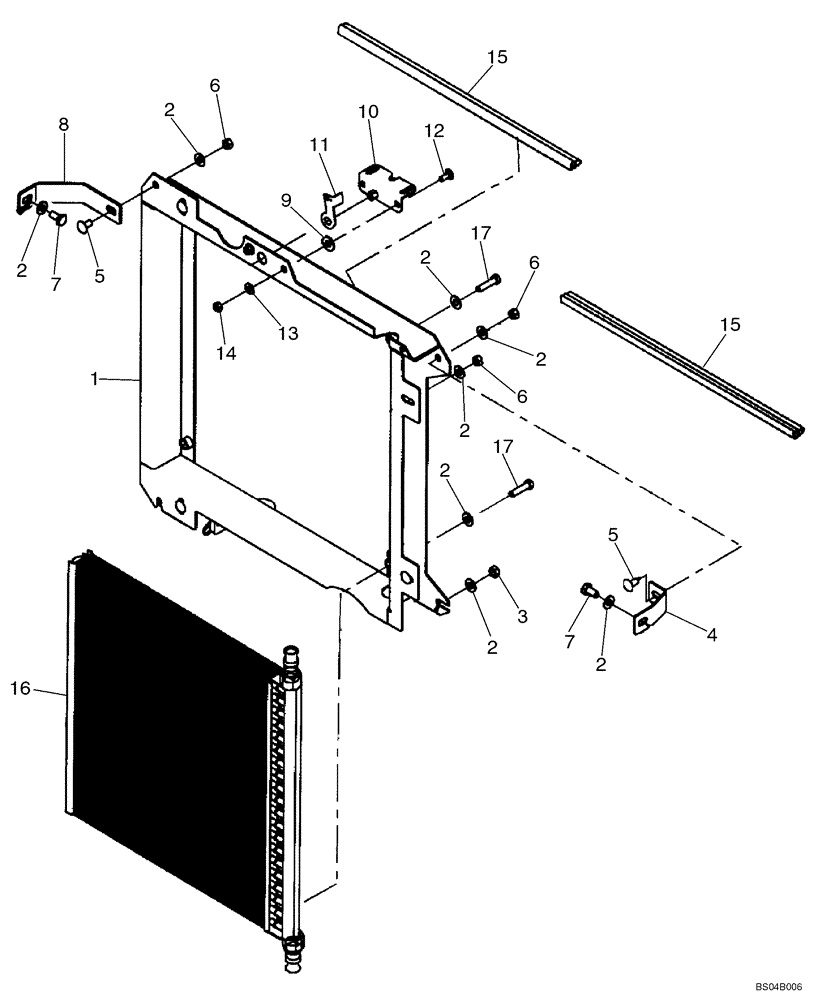

Запчасти Case 445CT (06-01) - OIL COOLER - MOUNTING (06) - POWER TRAIN

1

87052318

SUPPORT ASSY.

If Used

1шт.

1

87436060

SUPPORT ASSY.

If Used

1шт.

1

87530722

SUPPORT

Replaces 87436060

1шт.

2

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

14шт.

3

86500689

NUT,M10 x 1.5, Cl 10

2шт.

4

87017989

BRACKET

1шт.

5

86508748

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 3/4", Grade 5

2шт.

6

25-106

NUT,3/8"-16, G5

6шт.

7

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

8

87434582

ANGLE

Radiator Support; Used On Models Without Remote Jump Start

1шт.

8

87582989

ANGLE

Radiator Support; Used On Models With Remote Jump Start

1шт.

9

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

10

84015292

LATCH

If Used

1шт.

10

87705306

LATCH

If Used

1шт.

11

87017116

LEVER

1шт.

12

280497

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

2шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

14

9635082

NUT,5/16" - 18, Gr 5

2шт.

15

87016847

SEAL

2шт.

16

87037766

COOLER, OIL

1шт.

17

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.
