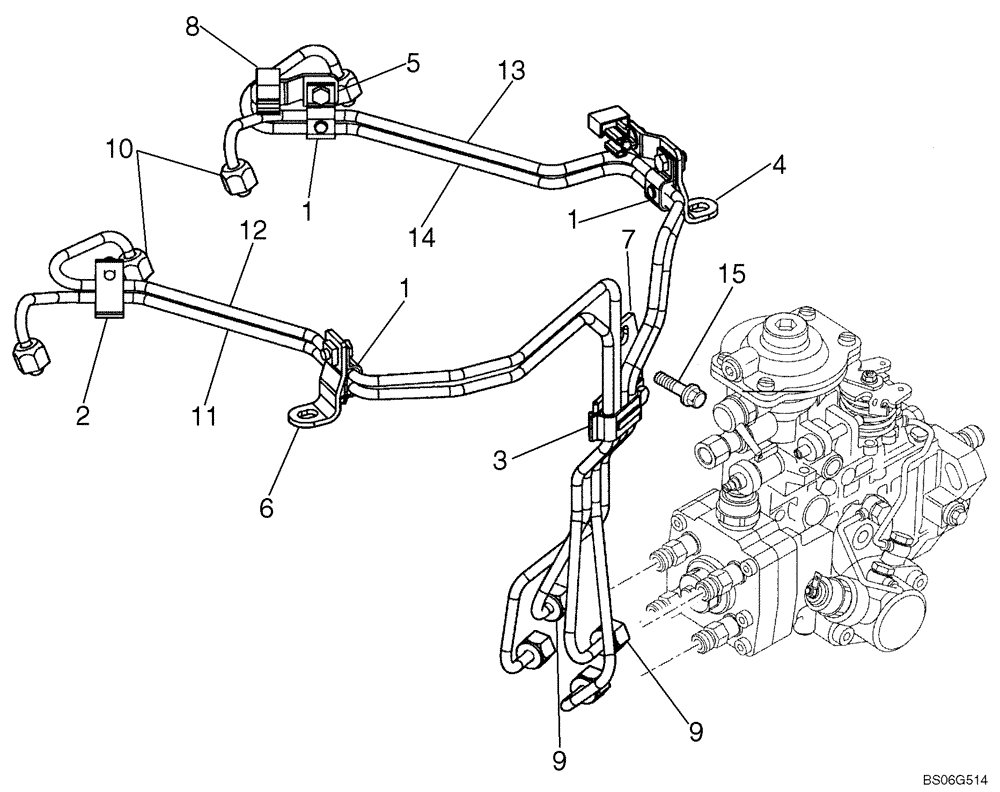

Запчасти Case 445CT (03-06) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM

2852075

PIPE SET

Fuel Injection Supply Pipe Assy; Incl. Ref 1-14

1шт.

1

2852871

BRACKET

Fuel Injection Pipe Bracket

3шт.

2

2852872

BRACKET

Fuel Injection Pipe Bracket

1шт.

3

2852873

BRACKET

Fuel Injection Pipe Bracket

1шт.

4

2852874

BRACKET

Fuel Injection Pipe Bracket

1шт.

5

2852875

BRACKET

Fuel Injection Pipe Bracket

1шт.

6

2852876

BRACKET

Fuel Injection Pipe Bracket

1шт.

7

2852877

BRACKET

Fuel Injection Pipe Bracket

1шт.

8

2852878

CLAMP BRACKET

Fuel Injection Pipe Bracket

2шт.

9

2852879

NUT

Hex Nut

4шт.

10

2852880

NUT

Hex Nut

4шт.

11

2852881

INJECTION PIPE

Fuel Injector Supply Pipe, Cylinder 1

1шт.

12

2852882

INJECTION PIPE

Fuel Injector Supply Pipe, Cylinder 2

1шт.

13

2852883

INJECTION PIPE

Fuel Injector Supply Pipe, Cylinder 3

1шт.

14

2852884

INJECTION PIPE

Fuel Injector Supply Pipe, Cylinder 4

1шт.

15

4896884

BOLT,Flng, M8 x 1.25 x 16mm, Cl 10.9

1шт.
