(03-01) - FUEL LINES WITH PUSH CLAMPS AT FUEL FILTER; IF USED

Запчасти Case 445CT (03-01) - FUEL LINES WITH PUSH CLAMPS AT FUEL FILTER; IF USED (03) - FUEL SYSTEM

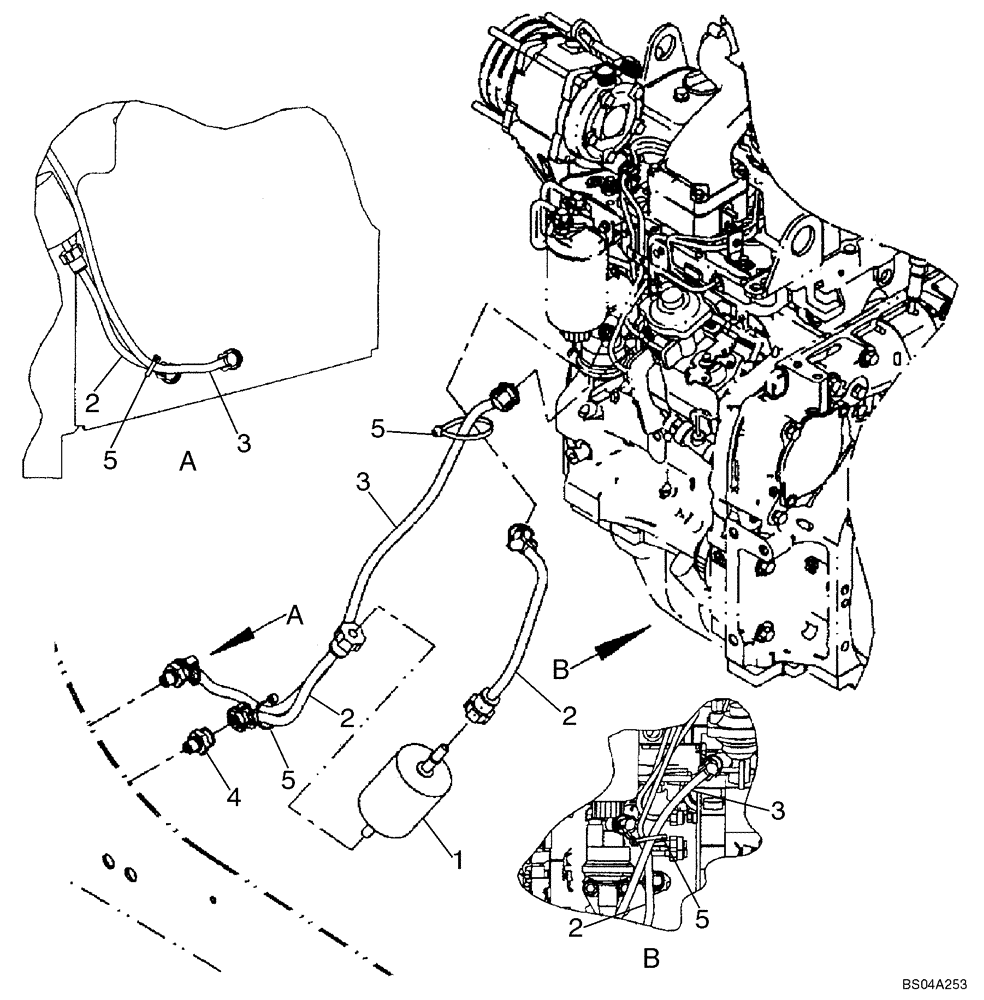

Схема запчастей Case 445CT - (03-01) - FUEL LINES WITH PUSH CLAMPS AT FUEL FILTER; IF USED (03) - FUEL SYSTEM
3
5
1
2
5
3
5
2
5
2
2
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87019604

FUEL FILTER

Inline

1шт.

2

87018091

TUBE

Fuel Line

2шт.

3

87018092

FUEL TUBE,8mm ID x 675mm L

Fuel Line

1шт.

4

87431323

ADAPTER

2шт.

5

529070

CABLE TIE,368.3mm L

CABLE STRAP

2шт.
