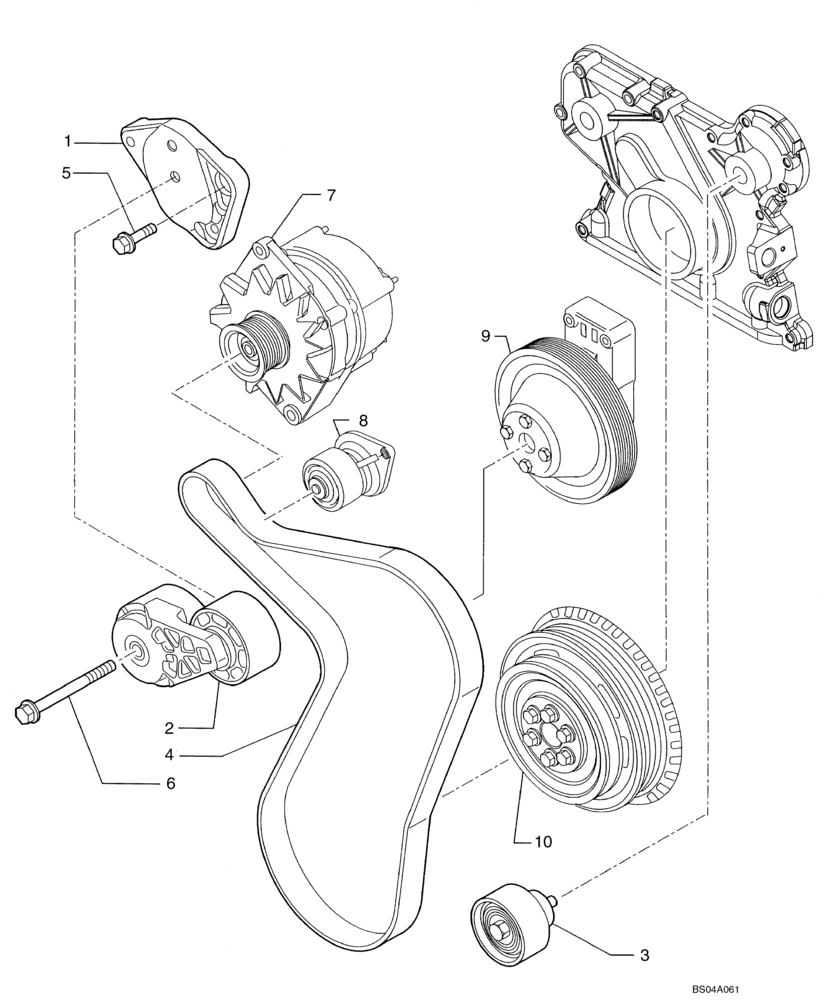

Запчасти Case 445CT (02-34) - WATER PUMP - CONTROL (02) - ENGINE

1

2852163

SUPPORT

1шт.

2

2852161

BELT TENSIONER

1шт.

3

2853006

PULLEY,65mm OD

1шт.

4

86982450

V-BELT

Fan, 1490mm W/ 8 Ribs

1шт.

5

4899031

BOLT,Flng, M8 x 1.25 x 25mm

2шт.

6

4899109

SCREW,Hex, M10 x 1.5 x 80

1шт.

7

87038475

ALTERNATOR

See Figure 04-04

1шт.

8

87803065

WATER PUMP

See Figure 02-31

1шт.

9

2853010

PULLEY,158mm OD

See Figure 02-35

1шт.

10

4896773

PULLEY

See Figure 02-25

1шт.
