Запчасти Case 445CT (09-42) - DECALS (09) - CHASSIS

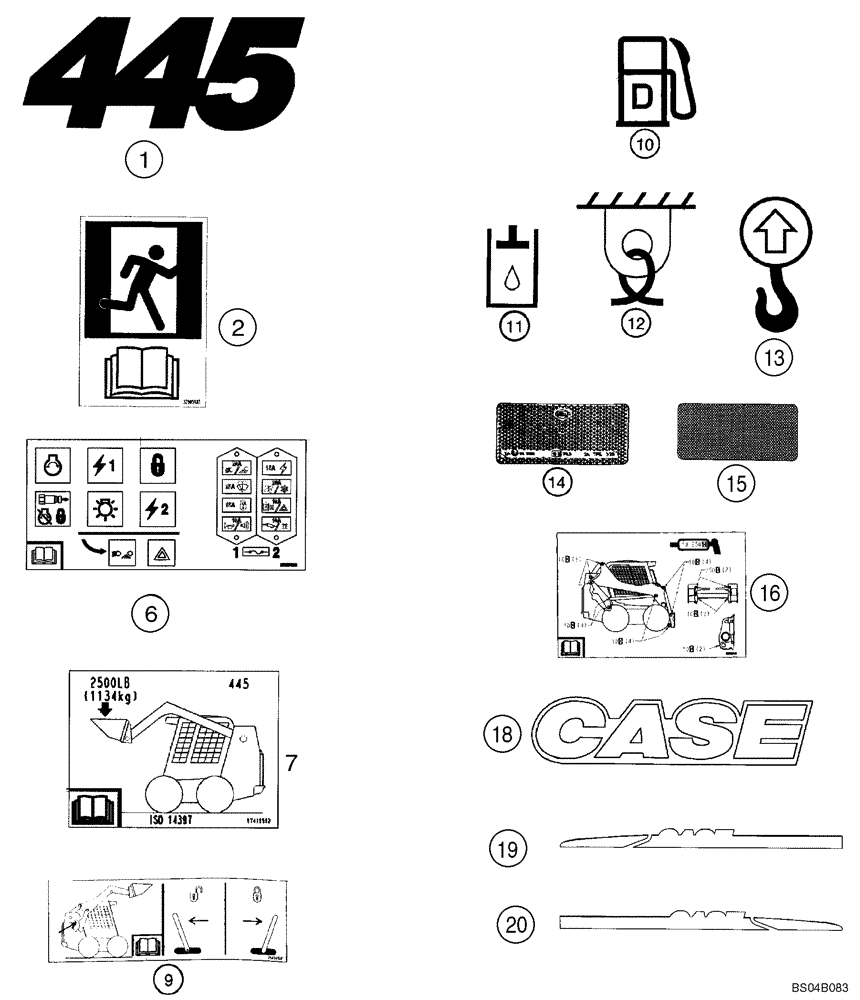

Схема запчастей Case 445CT - (09-42) - DECALS (09) - CHASSIS
2
15
19
18
11
12
6
10
13
16
1
14
7
20
9

Артикул

Название

Примечание

Количество

1

87438406

DECAL

445 Model Designation

2шт.

2

329051A1

DECAL

Emergency Exit

1шт.

6

87605636

DECAL

Fuse And Relay Layout; Replaces 87440132

1шт.

7

87438582

DECAL

Operating Capacity

1шт.

9

256365A2

DECAL

Lock/Unlock

1шт.

10

139879A1

DECAL

Diesel Fuel

1шт.

11

251753A1

DECAL

Hydraulic Fluid

1шт.

12

139728A1

DECAL

Tie Down

4шт.

13

139729A1

DECAL

Lift Hook

4шт.

14

121573A1

REFLECTOR,94mm L X 44mm W

Red; Set of 2

1шт.

15

294752A1

REFLECTOR,94mm L X 44mm W

Red

2шт.

16

331704A1

DECAL

Lubrication

1шт.

18

417654A1

DECAL

Case, 5-3/8 x 25 in

2шт.

18

87389374

DECAL

Case; Replaces 417654A1

2шт.

19

417661A1

DECAL

Case, With Stripes; Left Hand

1шт.

20

417663A1

DECAL

Case, With Stripes; Right Hand

1шт.

Выбрано товаров: 16
