Артикул
Название
Примечание
Количество

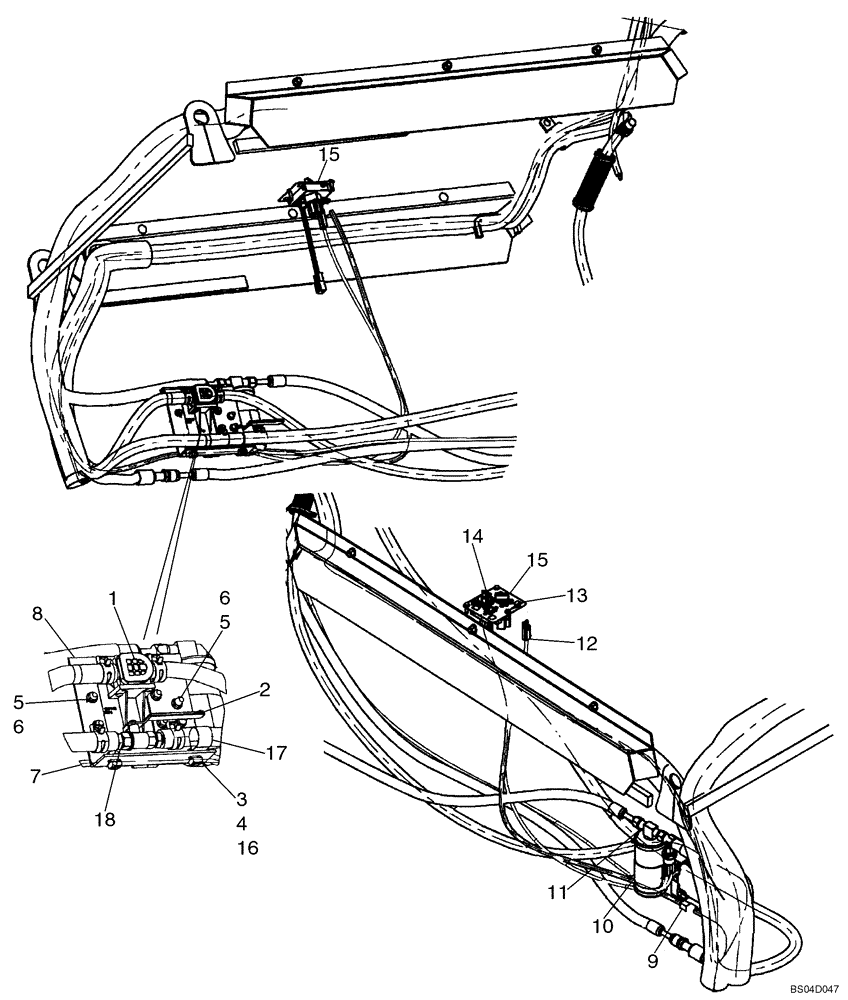

1
87520822
CONTROL VALVE
Replaces 87023391; If Used, Incl Instructions And Adapter Harness To Go From Square Configuration To T Configuration- 3 Pins Across The Top, Then One Below
1шт.
1
87520839
VALVE
Water; If Used; Wiring Has 4 Pins In A Square Configuration
1шт.
3
229197A1
SQUARE NUT,M8 x 1.25, Cl 8
2шт.
4
120103
BOLT,M8 x 1.25 x 16mm, Cl 8.8
2шт.
5
86619800
FLANGE NUT,M6 x 1, Cl 8
If Used With 5A
6шт.
5a
9804256
BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8
If Used With 5
6шт.
6
86977786
BOLT,Hex, M6 x 1 x 25mm, Cl 8.8
If Used with 6A, 6B
4шт.
6a
86588450
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
If Used, with 6, 6B
4шт.
6b
86511444
FLANGE NUT,Hex, M6 x 1
If used, with 6, 6A
4шт.
7
87439550
HARNESS
HVAC
1шт.
8
87439472
BRACKET
Water Valve And Dryer
1шт.
9
86625515
PRESSURE SWITCH
AC
1шт.
10
87437501
BRACKET
Receiver Dryer
1шт.
11
86625481
RECEIVER-DRYER
1шт.
12
87445909
HARNESS
Pressure Switch
1шт.
13
86500940
SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"
3шт.
14
87445255
SWITCH
AC; With 6 in. Leads
1шт.
14
SWITCH
AC; Requires A/C Harness Jumper 87581931; Included In Kit 87582195, See Figure 09-35A
1шт.
87581931
HARNESS
AC; With 8 in. Leads; Included In Kit 87582195, See Figure 09-35A
1шт.
15
87520823
CONTROL
HVAC; Replaces 87439636; Incl. 15A - 15G, Components Not Illustrated Separately; If Used
1шт.
15
87555246
CONTROL PANEL
HVAC; Replaces 87520823; Incl. Harness 87555247, Other Component Breakdown Not Available At Time Of Printing; If Used
1шт.
15a
87440102
CONTROL PANEL
Head Assy
1шт.
15b
87440104
HARNESS
HVAC Controls; Part of 87520823
1шт.
15b
87555247
HARNESS
HVAC Controls; Part of 87555246
1шт.
15c
87440105
DECAL
Heater Controls
1шт.
15d
87440108
KNOB
HVAC Control
2шт.
15e
86729669
SWITCH
Blower
1шт.
15f
86729675
SWITCH,5000 Ohm
1шт.
15g
87440262
BULB
HVAC Control
1шт.
17
9827902
CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type
1шт.
18
642560
FITTING,5/8" Hose x 3/8" NPTF Beaded
2шт.
