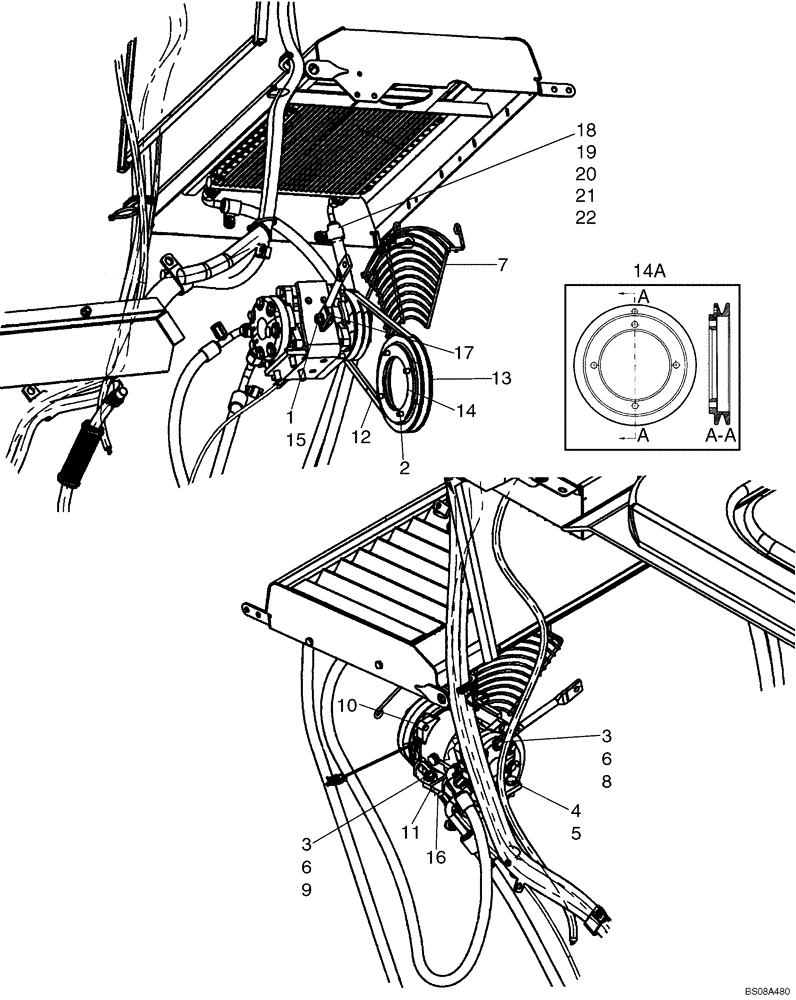

Запчасти Case 445CT (09-34) - HEATER AND AIR CONDITIONING - COMPRESSOR MOUNTING (09) - CHASSIS

1

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

2

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

80681

LOCK WASHER,5/16"

Used with Ref 2, Not Illustrated

4шт.

3

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

4

12601471

WAVE WASHER,10.5mm OD x 21mm ID x 1mm Thk

3шт.

5

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

3шт.

6

86050279

FLANGE NUT,M10 x 1.5, Cl 10

3шт.

7

87457152

GUARD

Fan

1шт.

8

86508621

BOLT,Hex, M10 x 130mm, Cl 10.9

1шт.

9

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

2шт.

10

87026034

AIRCOND. COMPRESSOR,12V, W/ Clutch, W/ Pulley

AC

1шт.

87026034R

REMAN-A/C COMPRESSOR,12V, W/ Clutch, W/ Pulley

445 BSN N7M454787 (3/04-12/07), 445CT BSN N8M458846 (4/05-12/07)

1шт.

87026034C

CORE-A/C COMPRESSOR

Return number

1шт.

11

87036932

BRACKET

1шт.

12

87438128

BELT,12.70 mm W

A/C Drive

1шт.

13

87438240

PULLEY

AC Drive

1шт.

14

87439471

LARGE PLATE

PLATE, LARGE AC Drive

1шт.

14a

87391944

PULLEY

AC Compressor Drive; Replaces Ref 13 and 14

1шт.

15

411345A1

LOCK NUT

M10

1шт.

16

87445908

HARNESS

Compressor

1шт.

17

87445754

ROD ASSY.

1шт.

18

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

19

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

20

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

21

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

22

87036413

SPACER,10.34mm ID x 15.88mm OD x 23.8mm L

1шт.
