Запчасти Case 445CT (09-18) - SEAT, MOUNTING - NON-SUSPENSION (09) - CHASSIS

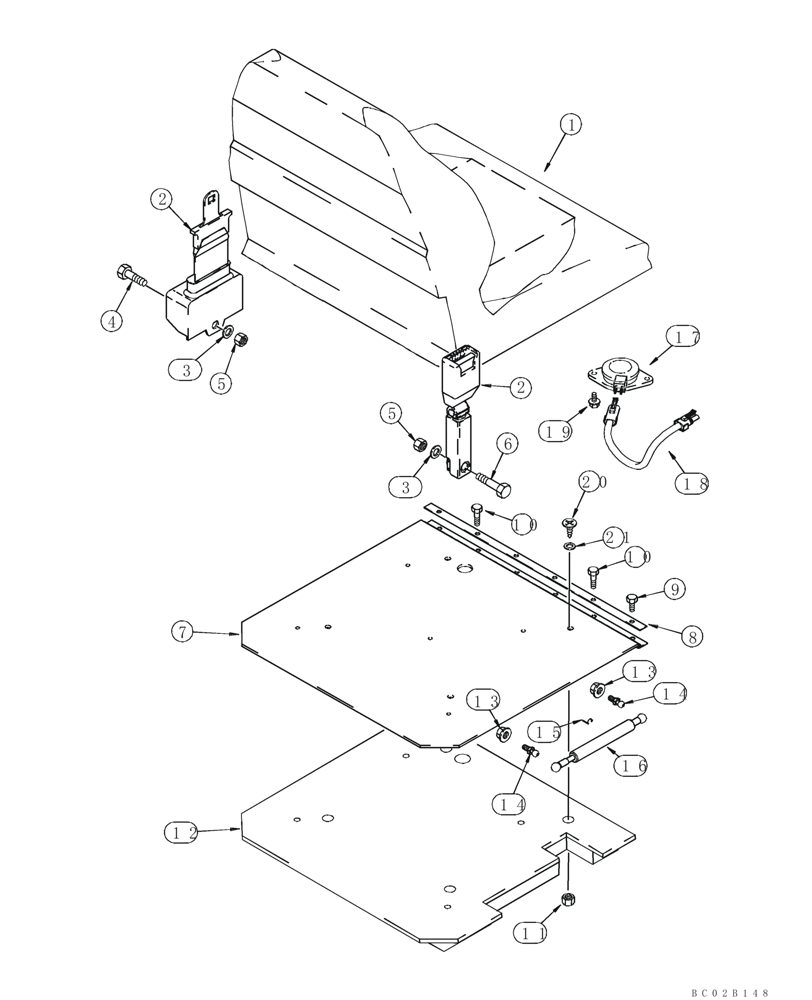

Схема запчастей Case 445CT - (09-18) - SEAT, MOUNTING - NON-SUSPENSION (09) - CHASSIS
6
11
9
3
10
10
14
2
13
16
bc02b148
13
17
12
19
14
5
20
2
7
5
1
18
4
15
3
8
21

Артикул

Название

Примечание

Количество

1

87405117

SEAT

Incl. 17

1шт.

2

249116A1

SAFETY BELT ,50.80 mm W

Includes 3

1шт.

2

249117A1

SAFETY BELT ,76.20 mm W

Includes 3, If Used

1шт.

3

NSS

NOT SOLD SEPARAT

Washer

2шт.

4

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

1шт.

5

86512554

NUT,M10 x 1.5, Cl 10

2шт.

6

412151

BOLT,M10 x 1.5 x 61.58mm, Cl 8.8

1шт.

7

302136A1

LARGE PLATE

PLATE, LARGE

1шт.

8

259875A1

CROSSMEMBER

1шт.

9

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

10

80120101

BOLT

M6 x 30

2шт.

11

832-41408

NUT,M8 x 1.25, Cl 10

4шт.

12

87439795

PAD

Seat Noise Control

1шт.

13

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

2шт.

14

189609A1

BALL STUD,M8 x 1.25

M8

2шт.

15

254307A1

CLIP

2шт.

16

189787A2

SHOCK ABSORBER

1шт.

17

86603490

SWITCH

Operator Presence

1шт.

18

302137A2

HARNESS

Seat; Two Connector

1шт.

19

NSS

NOT SOLD SEPARAT

Bolt

4шт.

20

348452A1

FASTENER,Push-In, 37mm L, Nylon

7,14 hole dia; If Used

5шт.

21

348434A1

WASHER,7.14mm ID x 44.5mm OD x 1.3mm Thk

7,14 ID x 44,5 OD; If Used

5шт.

Выбрано товаров: 22
