Запчасти Case 445CT (09-05) - COUPLER, HYDRAULIC (09) - CHASSIS

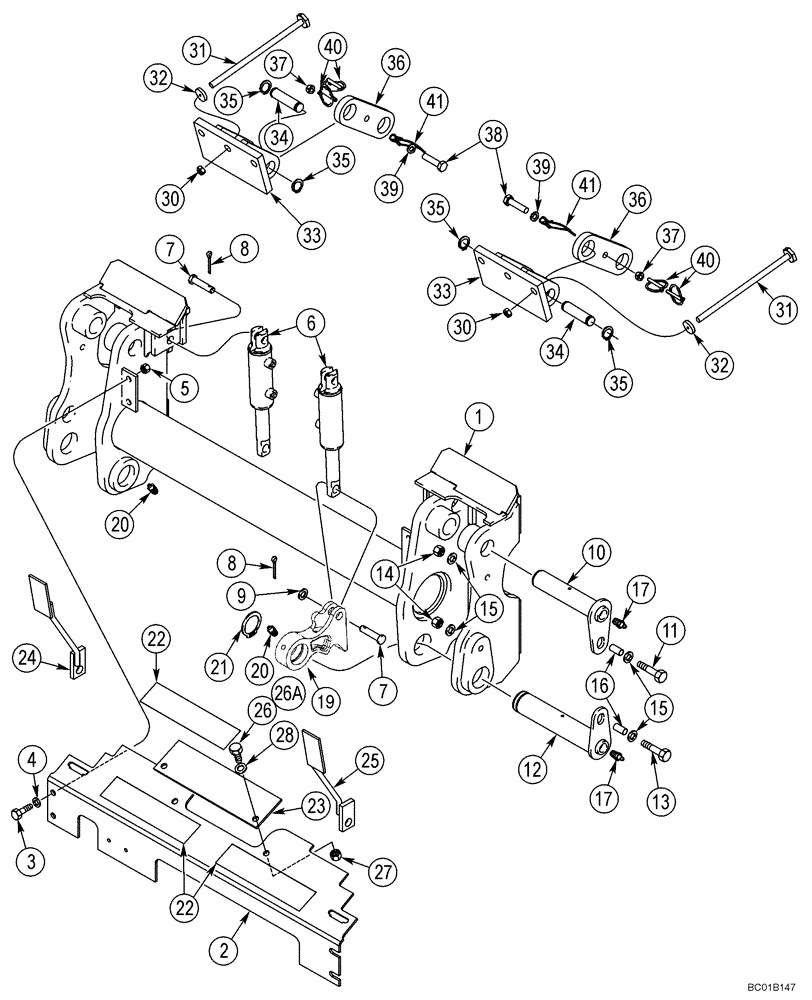

Схема запчастей Case 445CT - (09-05) - COUPLER, HYDRAULIC (09) - CHASSIS
35
11
10
35
14
28
34
33
27
9
17
39
7
31
25
6
40
37
12
3
7
8
17
41
37
38
34
40
39
14
16
8
15
5
30
41
32
1
30
22
32
19
31
21
26a
22
36
2
23
26
13
35
36
4
20
20
33
35

Артикул

Название

Примечание

Количество

87393400

SERVICE KIT

Hydraulic Coupler; Incl. 1 - 28 And Figure 08-07A, Ref 1 - 38

1шт.

1

246902A7

FRAME ASSY

1шт.

2

275552A2

HALF BLADE

1шт.

3

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

4шт.

4

140017

WASHER,M10 x 20mm OD x 2mm Thk

8шт.

5

86512554

NUT,M10 x 1.5, Cl 10

4шт.

6

255866A3

CYLINDER ASSY.,Double Acting, 25.4mm Rod, 56.13mm Stroke

56 mm strk; Component Parts Not Serviced Separately

2шт.

7

362528

CLEVIS PIN,M16 x 55mm OAL

4шт.

8

412685

COTTER PIN,M4 x 32

4шт.

9

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

10

255071A2

PIN,35mm OD x 177mm L

Upper

2шт.

11

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

12

255073A3

PIN,45mm OD x 255mm L

Lower

2шт.

13

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

2шт.

14

86512554

NUT,M10 x 1.5, Cl 10

4шт.

15

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

8шт.

16

906091R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

3/8 x 0.375 x Strg Pipe; Replaces 660200R1

4шт.

17

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

4шт.

19

300306A1

HOOK

68 mm OD

2шт.

20

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

2шт.

21

86625149

SNAP RING,#175, Ext

2шт.

22

D55216

PAD,2" x 9"

2 x 9 in

3шт.

23

283549A1

SHEET

1шт.

24

284107A2

LINK ASSY.

Left Hand

1шт.

25

284110A2

INDICATOR

Right Hand

1шт.

26

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

26a

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

Europe Only

2шт.

27

86512554

NUT,M10 x 1.5, Cl 10

2шт.

28

140017

WASHER,M10 x 20mm OD x 2mm Thk

4шт.

REF

INSTRUCTION

ITALIAN EUROPEAN MODELS

1шт.

29

293215A1

FRAME ASSY

1шт.

30

412672

NUT,Hex, M12 x 1.75, Cl 10

4шт.

31

9628065

SCREW,Hex, M12 x 1.75 x 45mm, Cl 8.8

4шт.

32

140018

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

4шт.

33

372051A2

BRACKET

Bucket Lock

2шт.

34

D138889

PIN,69.98mm OD x 160mm L

Lift Cylinder Pivot

2шт.

35

103-1687

SNAP RING,#87, Ext

4шт.

36

405721A1

LINK

Bucket Lock

2шт.

37

86512554

NUT,M10 x 1.5, Cl 10

2шт.

38

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

39

140017

WASHER,M10 x 20mm OD x 2mm Thk

2шт.

40

A30338

PIN

2шт.

41

L78786

CABLE RETAINER

2шт.

Выбрано товаров: 43
