Запчасти Case 445CT (02-06) - ENGINE - MOUNTING (02) - ENGINE

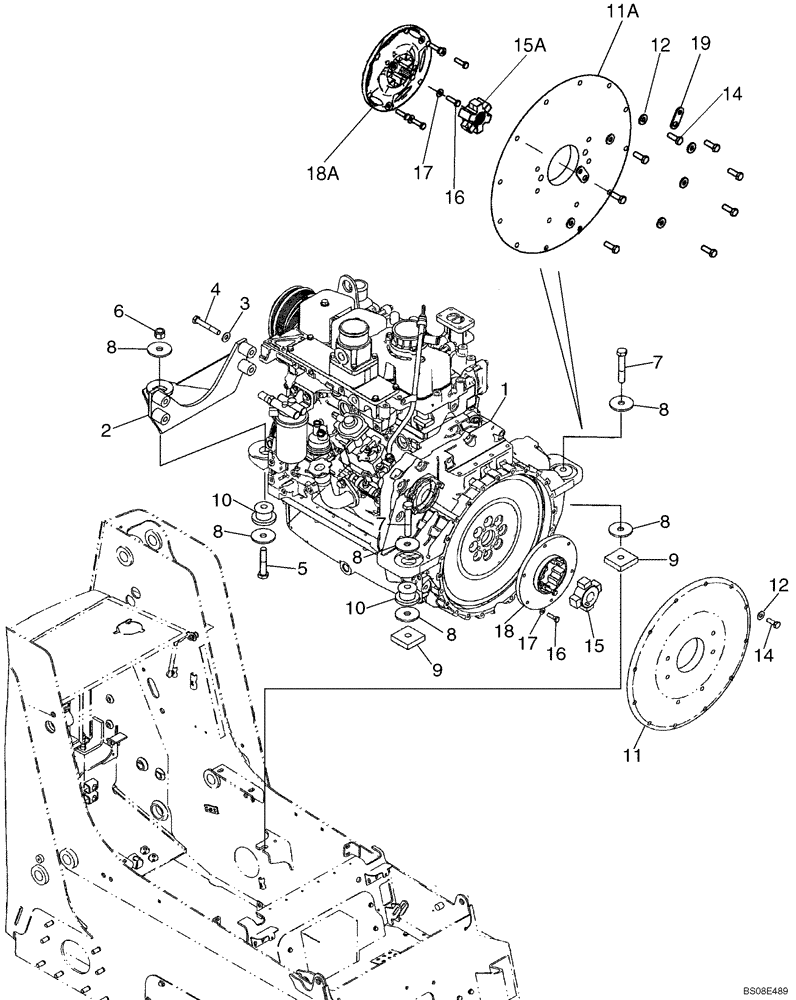

Схема запчастей Case 445CT - (02-06) - ENGINE - MOUNTING (02) - ENGINE
14
16
15
8
10
18a
6
8
11a
8
12
17
12
8
16
15a
8
29
8
17
5
9
3
2
4
9
18
14
7
11
10

Артикул

Название

Примечание

Количество

1

87328612

ENGINE

Replaces 87039465

1шт.

1

84281978R

REMAN-BASIC ENGINE,4 Cylinders

Reman for New PN 87328612

1шт.

1

84281978C

CORE-BASIC ENGINE,4 Cylinders

Return Number

1шт.

1

87547532

ENGINE

Replaces 87328612

1шт.

BSN N8M458846, N.A. Only

1шт.

BSN N8M458846, N.A. Only

1шт.

1

87547532R

REMAN-REPLACEMENT EN

445, Tier 2 Eng., Aspiration NA, BSN N7M454787, 445CT, T2 Eng., Aspiration NA

1шт.

1

87547532C

CORE-REPLACEMENT ENG

Return Number, For N.A. Only

1шт.

1

84281978R

REMAN-BASIC ENGINE,4 Cylinders

445, Tier 2 Eng., Aspiration NA, BSN N7M454787, 445CT, T2 Eng., Aspiration NA

1шт.

1

84281978C

CORE-BASIC ENGINE,4 Cylinders

Return Number

1шт.

2

87041763

ENGINE MOUNT

1шт.

87533639

SHORT ENGINE

Includes Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings, Camshaft, Tier 2

1шт.

87533639R

REMAN-SHORT ENGINE,53kW, 4 Cylinders, W/O Turbocharger

445 BSN N7M454787 (3/04-12/07), 445CT BSN N8M458846 (4/05-12/07) all TIER 2

1шт.

87533639C

CORE-ENGINE

Return Number

1шт.

87533639ER

REMAN-SHORT ENGINE

Includes Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings, Camshaft, Tier 2

1шт.

87533639EPAC

CORE-SHORT ENGINE

Return Number

1шт.

3

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

4

412085

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

5

350616

BOLT,M16 x 2 x 90mm, Cl 8.8

1шт.

6

412066

NUT,M16 x 2.0, Cl 8

1шт.

7

350616

BOLT,M16 x 2 x 90mm, Cl 8.8

2шт.

8

87032338

WASHER,0.66" ID x 2.5" OD x 0.19" Thk

6шт.

9

390350A1

PLATE

2шт.

10

A140221

MOUNTING PARTS

3шт.

11

87014858

MOUNTING PLATE

Pump Mounting

1шт.

11a

87547003

PLATE

Pump Mounting, Common Plate For Mechanical And Pilots; Replaces 87519252, 87014858; See Figure 06-06

1шт.

12

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

10шт.

13

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

14

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

10шт.

15

87024588

HUB

Pump Drive Star, Use With Ref 18

1шт.

15a

87711337

COUPLING,19T, 1-1/8" ID

Pump Drive Star, Use With Ref 18A

1шт.

16

43235

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

6шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

18

87024539

ELEMENT

Pump Drive, Use With Ref 15

1шт.

18a

87692685

FLEXIBLE COUPLING,215.9mm OD

Pump Drive, Use With Ref 15A

1шт.

19

87443567

WASHER

Clamp Mounting

2шт.

Выбрано товаров: 36
