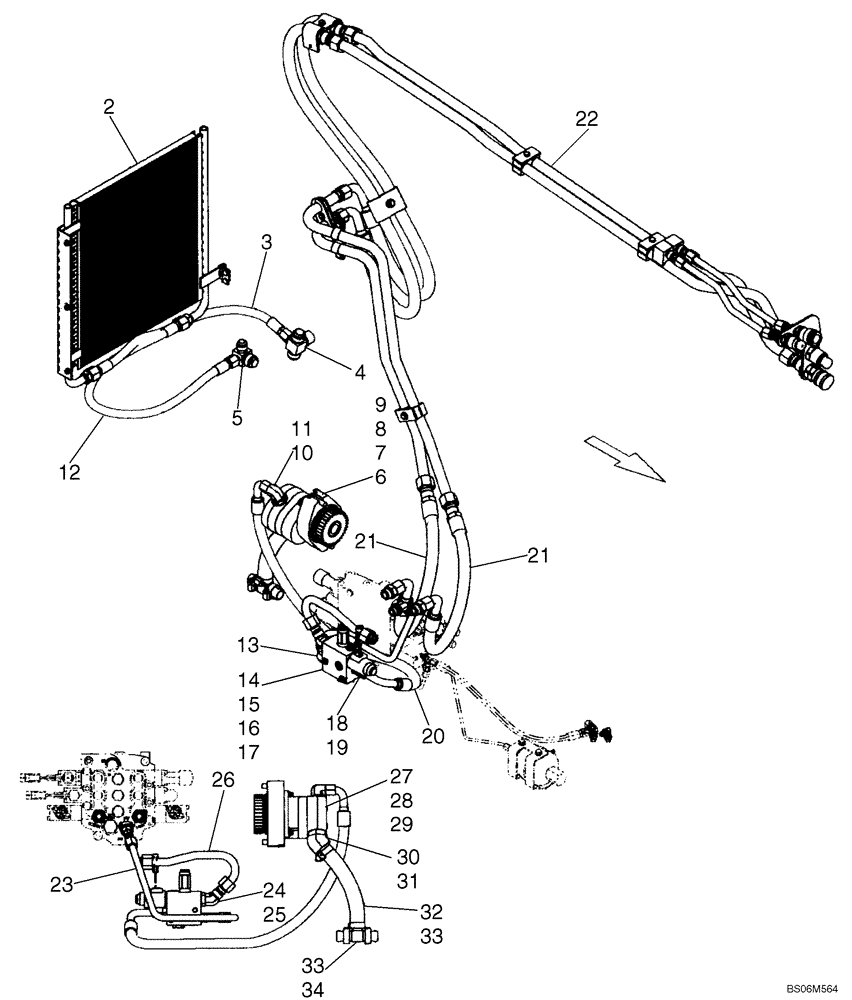

Запчасти Case 445CT (08-21) - HIGH FLOW HYDRAULICS (08) - HYDRAULICS

1

87571107

KIT

High Flow Kit, 445; Incl. 2 - 34

1шт.

2

87037881

COOLER, OIL

See Fig. 06-02 For Mounting

1шт.

3

87422600

HOSE ASSY.

High Flow Oil Cooler

1шт.

4

87422599

TEE

Male Branch With Side Outlet

1шт.

5

87436935

TEE

1шт.

6

87428636

KIT

Kit, Incl. 7 - 9

1шт.

7

16588324

SCREW,M12 x 45mm

2шт.

8

2853146

PTO

1шт.

9

4896897

GASKET,1.35mm Thk

1шт.

10

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl. 11

1шт.

11

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

87415778

HOSE ASSY.

High Flow Cooler

1шт.

13

86512996

ELBOW,45 Degree, 7/8"-14 x 3/4"-16, O-Ring

Incl. 13A

1шт.

13a

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

87012669

VALVE

Combination Valve; See Fig. 08-20

1шт.

15

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

16

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

2шт.

17

87404992

SQUARE NUT,M6 x 1.0, Cl 8

2шт.

18

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

Incl. 19

1шт.

19

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

87414842

HOSE ASSY.

High Flow Supply

1шт.

21

87019071

HYDRAULIC HOSE

Supply And Return

2шт.

22

87555853

Not Serviced As Assembly; See Fig. 08-15

1шт.

23

87436469

HYD TUBE,15.88 mm OD

1шт.

24

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

Incl. 25

1шт.

25

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

26

87436470

HYD TUBE,19.05 mm OD

High Flow Return

1шт.

27

87020735

PUMP

Gear Pump

1шт.

28

87016486

12 PT SCREW,M10 x 1.5 x 40mm OAL, Cl 12.9

2шт.

29

272310

O-RING,0.07" Thk x 3.239" ID, -42, Cl 5, 75 Duro

1шт.

30

87029968

HYD CONNECTOR

Stem 45 Bead Hose 1.00 ID x 1-5/16 - 12; Incl. 31

1шт.

31

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

32

87414841

HOSE

High Flow Suction

1шт.

33

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

4шт.

34

87414603

TEE

1шт.
