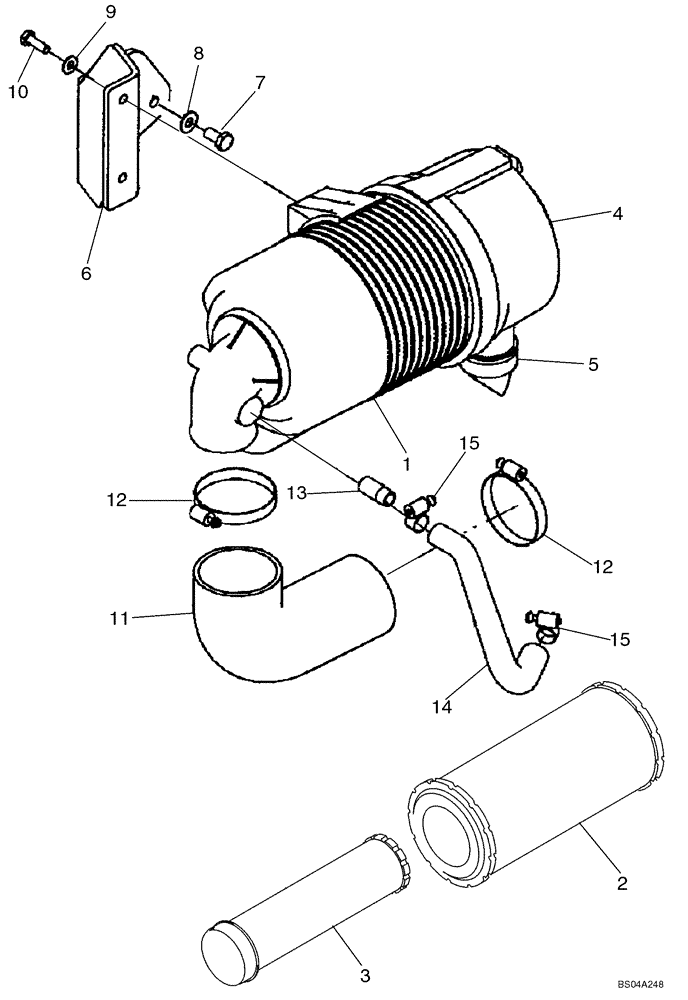

Запчасти Case 445CT (02-04) - AIR CLEANER - ENGINE (02) - ENGINE

87041485

CLEANER ASSY.

Air Cleaner; Incl. 1 - 5

1шт.

1

87041842

AIR CLEANER

Body

1шт.

2

222425A1

AIR FILTER

Primary

1шт.

3

222429A1

AIR FILTER

Secondary

1шт.

4

440831A1

FILTER COVER

Incl. 4A

1шт.

4a

86990981

LOCKING TAB

Not Illustrated Separately

1шт.

5

A184597

VALVE POPPET,1.93" ID x 2.24" OD x 1.84" L

1шт.

6

87582485

BRACKET

Replaces 257865A2, 87038358

1шт.

7

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

3шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

10

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

11

87351988

INTAKE AIR HOSE,63.50 mm ID, 76.00 mm ID x 163.00, SAE J20R4

Replaces 87037274

1шт.

12

86625033

HOSE CLAMP,77.7mm - 101.6mm, Worm Gear

2шт.

13

L17985

FITTING,3/8" - 18 NPT

1шт.

14

87352016

HOSE,17.0 mm ID, 22.0 mm ID x 143.0 mm SAE 30R2 TYPE 1

Replaces 87037275

1шт.

15

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

2шт.
