Запчасти Case 445CT (06-06) - HYDROSTATICS - TWO SPEED (06) - POWER TRAIN

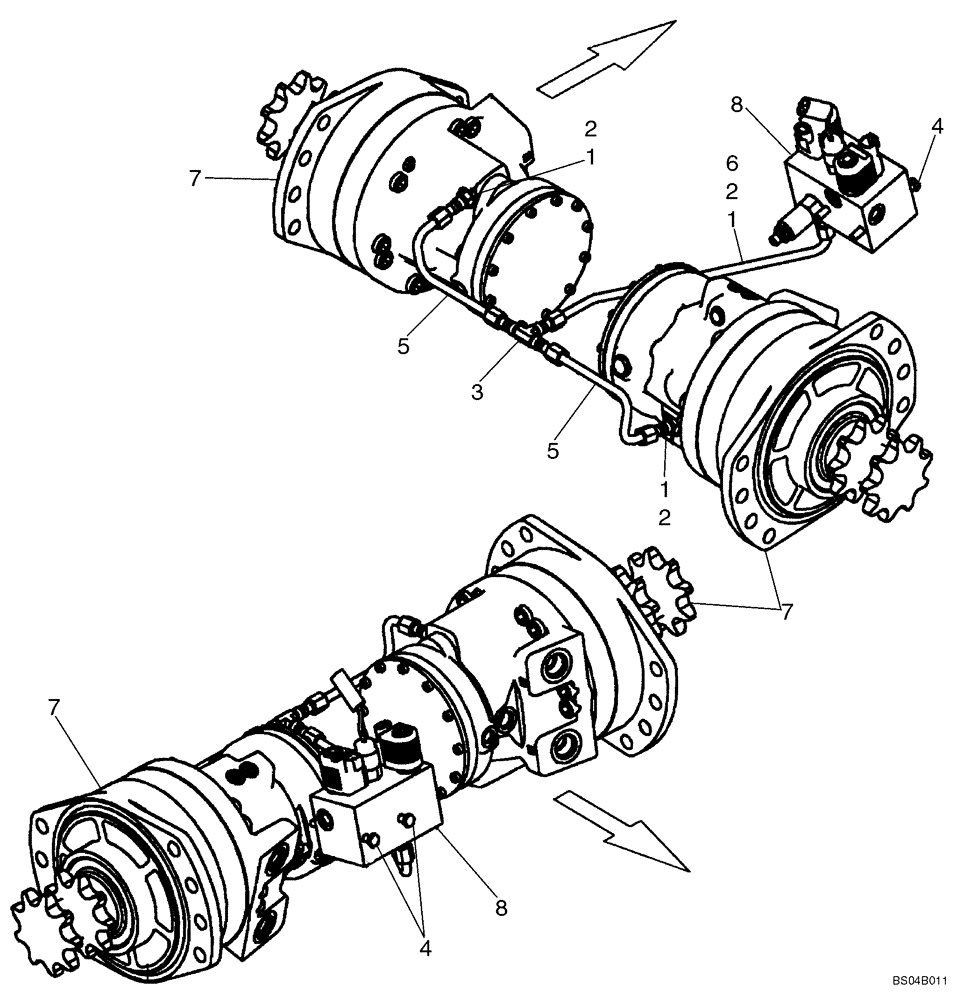

Схема запчастей Case 445CT - (06-06) - HYDROSTATICS - TWO SPEED (06) - POWER TRAIN
7
2
4
8
8
5
7
1
2
3
1
1
7
6
2
5
4

Артикул

Название

Примечание

Количество

1

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 2

3шт.

2

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

3

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

4

412215

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8

2шт.

5

87413937

HYD TUBE,9.53 mm OD

2шт.

6

87015944

HYD TUBE,9.53 mm DIA x 144, 325.5 mm L

1шт.

7

87035452

HYDRAULIC MOTOR

Two Speed; See Figure 06-21 - 06-23

2шт.

7

87035452R

REMAN-HYD MOTOR

Remanufactured Hydraulic Motor

2шт.

7

87035452C

CORE-MOTOR HYDRAULIC

Return Number

2шт.

8

87429625

HYDRAULIC VALVE

Two Speed; See Figure 06-07

1шт.

Выбрано товаров: 10
