Запчасти Case 445CT (06-05A) - HYDROSTATICS - BRAKE VALVE (445CT) (06) - POWER TRAIN

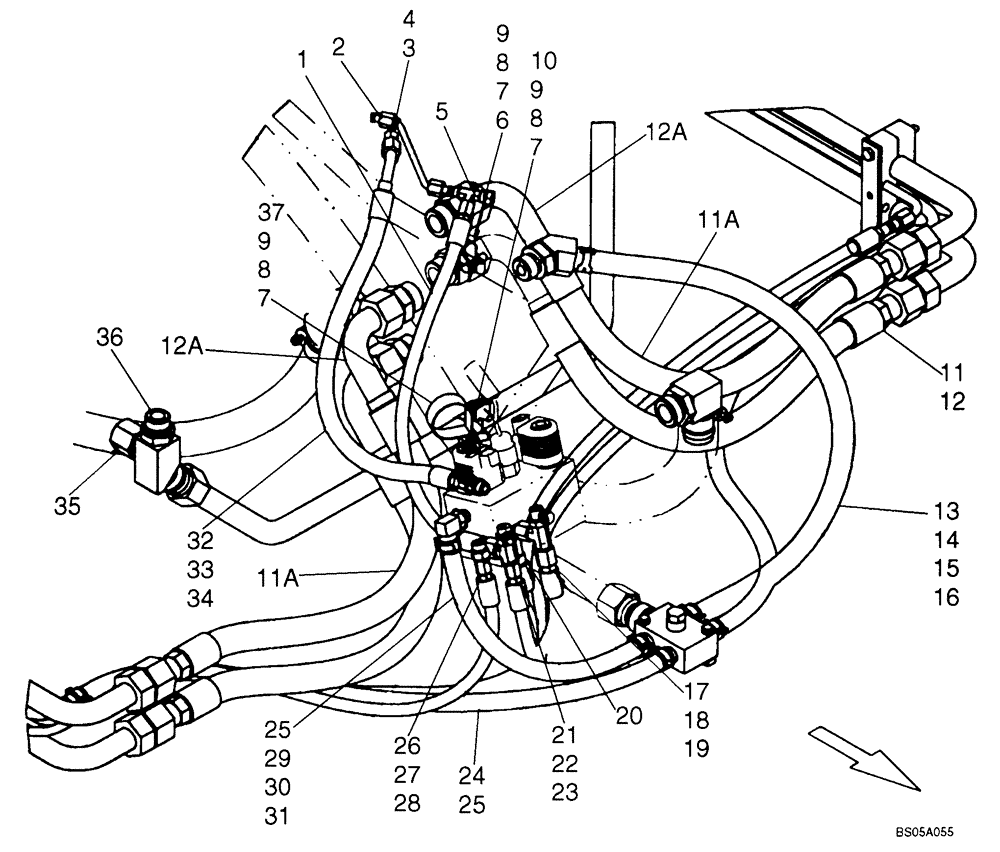

Схема запчастей Case 445CT - (06-05A) - HYDROSTATICS - BRAKE VALVE (445CT) (06) - POWER TRAIN
12a
27
34
10
23
36
11a
12a
1
21
2
8
13
22
28
5
7
9
29
19
16
6
25
3
32
9
4
20
14
8
11a
35
15
31
7
33
37
8
7
17
9
30
24
11
25
26
18
12

Артикул

Название

Примечание

Количество

1

87015466

HOSE

1шт.

2

87021277

TUBE,6.35mm OD x 124.9mm L, 37 Degree Flare

1шт.

3

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 4

1шт.

4

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

86513653

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

1шт.

6

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

7

122158A1

NUT,M8, U

3шт.

8

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

9

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

3шт.

10

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

11

87452384

HOSE ASSY.,19.05mm ID x 675mm L

675 mm (26.57 in) Loop; If Used; Used With Ref 12

2-4шт.

11a

87461626

HOSE ASSY.,19.05mm ID x 625mm L

625 mm (24.6 in) Loop; If Used; Used With Ref 12A

2шт.

12

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

1.0; Incl. (2) 167268, (1) 9824050; If Used; Used With Ref 11

2-4шт.

12a

87326799

HYD CONNECTOR

1.0, 1.0 Long; Incl. (2) 9824050, (1) 167268; If Used; Used With Ref 11A

2шт.

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1-2шт.

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1-2шт.

13

87015462

HOSE

1шт.

14

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

24 mm

2шт.

15

87021779

FITTING,45 Degree, 5/8" Hose x 1 1/16"-12 ORB Beaded

Incl. 16

1шт.

16

79051113

RING

1шт.

17

87452386

HOSE ASSY.

Two Speed

1шт.

18

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl. 19

1шт.

19

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

87452387

HOSE ASSY.

Two Speed

1шт.

21

87452389

HOSE ASSY.

Brake

1шт.

22

218-5336

TEE,7/16"-20, 37 Degree x 9/16"-18, O-Ring Run

Incl. 23

1шт.

23

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

24

87452385

HOSE,12.70 mm ID x 114.00 mm

Case Drain

2шт.

25

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

6шт.

26

87452388

HOSE ASSY.

Brake

1шт.

27

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

Incl. 28

1шт.

28

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

29

87015463

HOSE,12.7mm ID x 402mm L

1шт.

30

86705580

FITTING,90 Degree, 1/2" Hose Bead x 9/16" - 18 ORB

Incl. 31

1шт.

31

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

32

87021890

HOSE

1шт.

33

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 34

1шт.

34

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

35

219606

CAP,1-1/16" - 12 JIC

1шт.

36

87421217

ADAPTER,1-5/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 ORB

45, With Side Outlet

1шт.

37

603022

CLAMP,44.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

Выбрано товаров: 41
