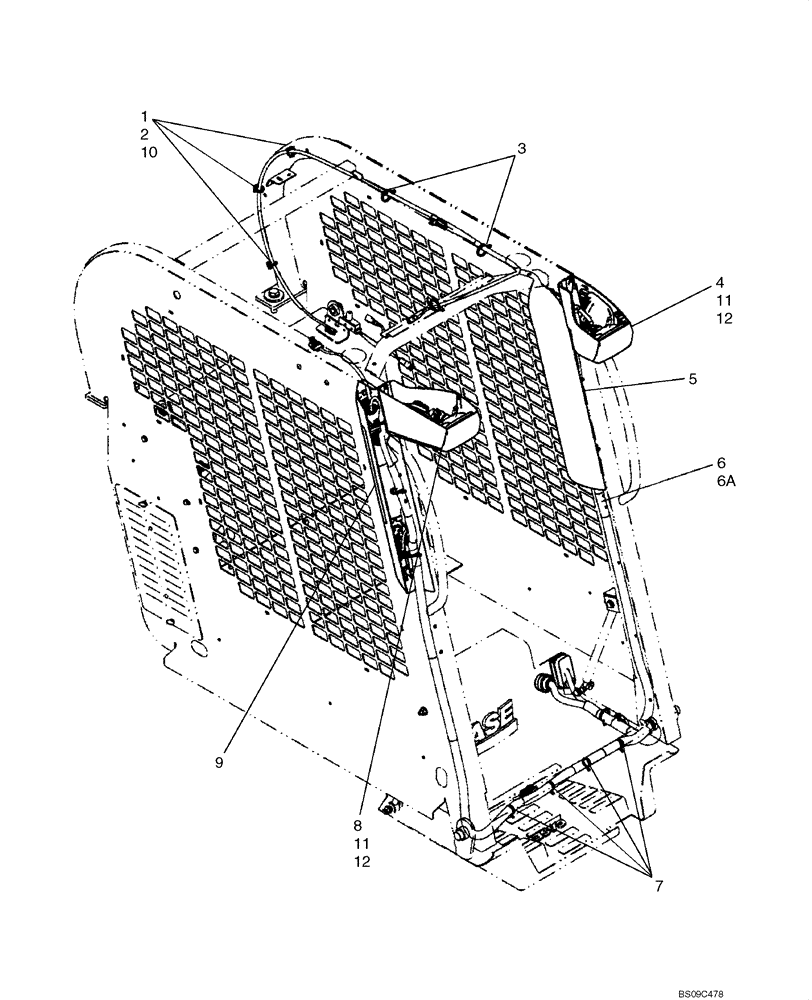

Запчасти Case 440CT (04-06) - ELECTRIC - CAB (04) - ELECTRICAL SYSTEMS

1

87642914

BASE

Strap Mount; If Used

3шт.

2

87642915

CABLE TIE,198mm L

CABLE STRAP If Used

3шт.

3

87668737

CABLE TIE,203.2mm L, Nylon, Black

Strap With Mount

4шт.

4

87650097

LIGHT

Work Light, LH; See Fig. 04-16

1шт.

5

87627050

CONSOLE

Console, LH; See Fig. 04-08; If Used

1шт.

5

84128477

CONSOLE

Console, LH; See Fig. 04-08

1шт.

6

87715726

HARNESS

Harness, Cab; Incl 6A; Replaces 87668728; If Used

1шт.

6

87745734

HARNESS

Cab Harness

1шт.

6a

87618013

DIODE

6A Diode

1шт.

7

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

4шт.

8

87650098

LIGHT

Work Light, RH; See Fig. 04-17

1шт.

9

84128478

CONSOLE

Console, RH; See Fig. 04-07; Replaces 87665327; If Used

1шт.

10

H439303

CLIP

Wire Harness Clip

6шт.

11

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

Mounting Hardware For Worklights Ref 4, 8

6шт.

11

86511826

SCREW,Phillips Drive, Pan HD, M5 x 16mm

Mounting Hardware For Worklights Ref 4, 8; If Used

6шт.

12

87013357

WASHER,5.5mm ID x 15mm OD x 1.6mm Thk

Mounting Hardware For Worklights Ref 4, 8

6шт.
