Запчасти Case 440CT (04-04) - HARNESS, ENGINE (04) - ELECTRICAL SYSTEMS

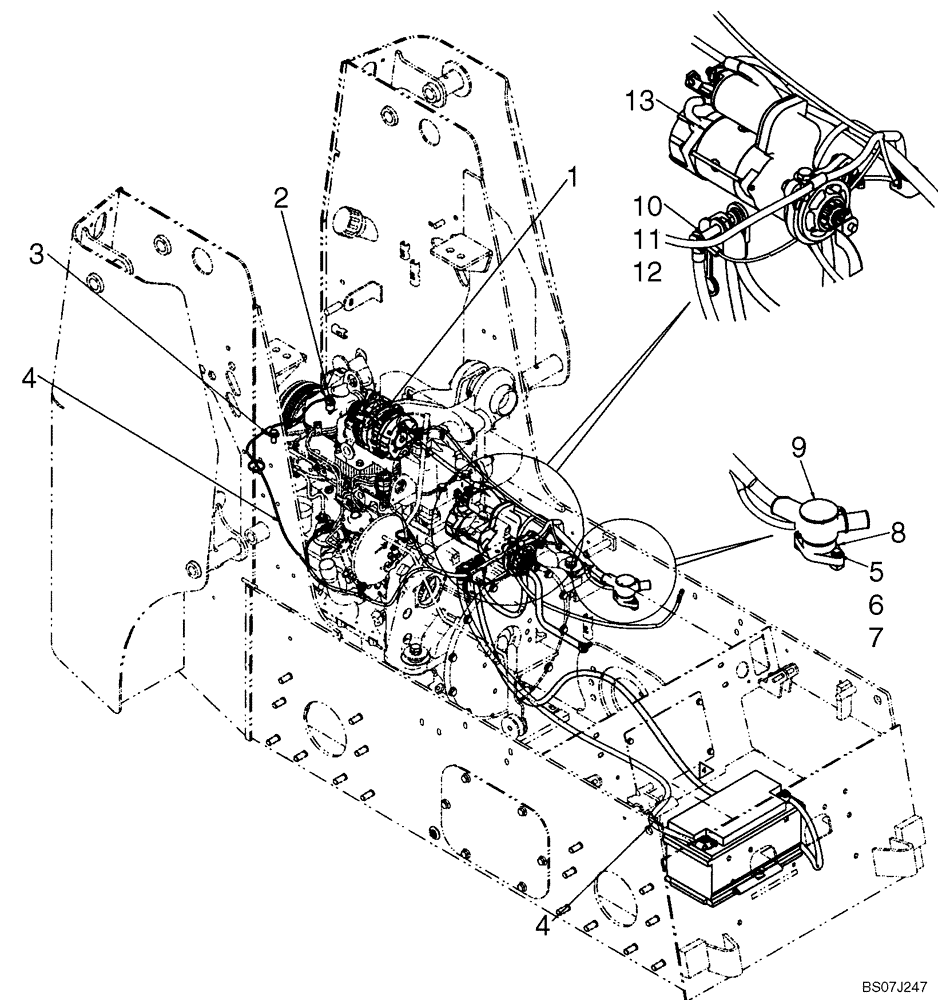

Схема запчастей Case 440CT - (04-04) - HARNESS, ENGINE (04) - ELECTRICAL SYSTEMS
13
2
9
10
11
3
6
4
12
4
7
5
1
8

Артикул

Название

Примечание

Количество

1

87042118

ALTERNATOR

Alternator; See Figure 04-01

1шт.

1

87038475R

REMAN-ALTERNATOR

Reman for New PN 87042118

1шт.

1

87038475C

CORE-ALTERNATOR

Return Number

1шт.

2

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Transmission Oil

1шт.

3

86639003

CLAMP,9.5mm, Coat, 11.9mm Bolt Hole, P Type

If Used

1шт.

4

87623352

HARNESS

Harness; NEF Engine

1шт.

5

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2-3шт.

6

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

7

87404992

SQUARE NUT,M6 x 1.0, Cl 8

Square M6-1.0 Class 8 Znd

2-3шт.

8

87630124

POST

Power Distribution Post, 3/8 Stud

1шт.

9

87630125

BOOT

Boot For Power Distribution Post

1шт.

10

9706685

NUT,M12 x 1.75, Cl 8

1шт.

11

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

1шт.

12

87458961

STUD

12mm x 80mm

1шт.

Выбрано товаров: 14
