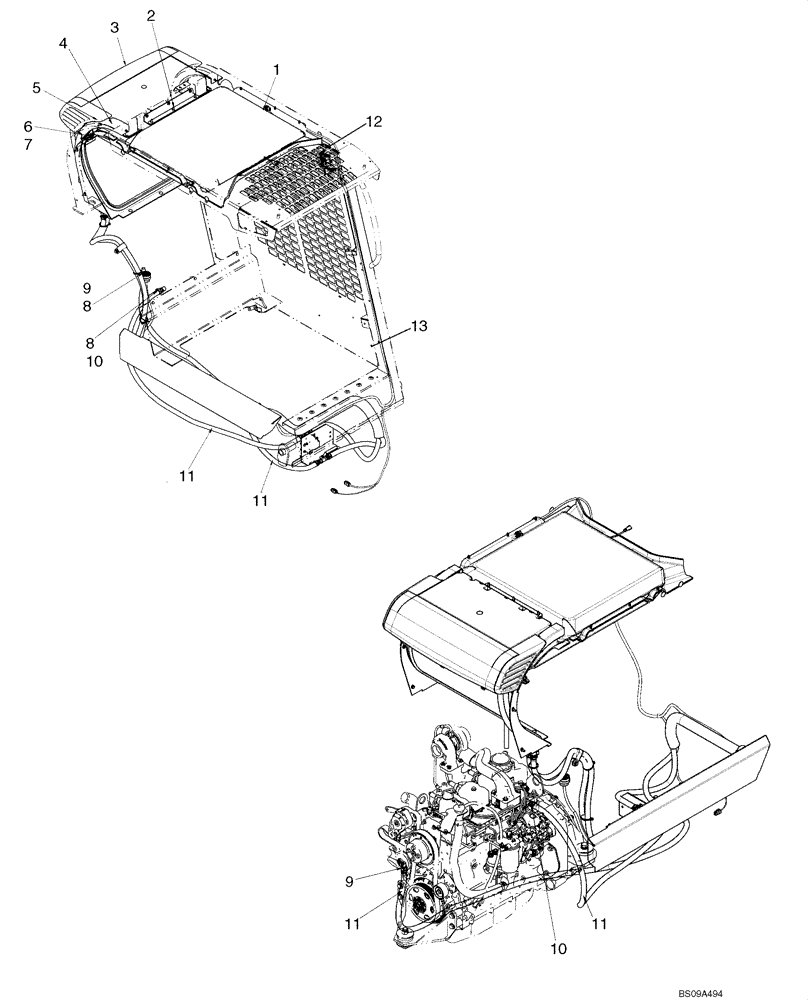

Запчасти Case 440CT (09-57) - HEATER SYSTEM (09) - CHASSIS

1

REF

INSTRUCTION

Heater System; See Fig 09-58

1шт.

2

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

3шт.

3

84129072

Heater Assembly; Incl 87653394 And 84146888

1шт.

3

87653394

HEATER

Heater Assembly; See Fig 09-59

1шт.

4

87450833

TAPE

If Used

2шт.

5

291308

SEALING STRIP,0.75" W x 0.5" Thick

580mm (22 13/16 in.); If Used

1шт.

6

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

7

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

2шт.

8

87443511

CLAMP,22mm - 26mm, CTB-24, Style C

2шт.

9

642560

FITTING,5/8" Hose x 3/8" NPTF Beaded

1шт.

10

87302136

FITTING,5/8" Hose x 1/2" NPTF, Barbed

1шт.

11

87691475

HEATER HOSE,15.75" mm ID, 1975.00 mm, SAE 20R3, SAE J20

2шт.

12

87555250

PLUG

A/C Switch Plug

1шт.

13

414635A1

COVER,25.4mm OD x 0.51mm Thk

25.4mm Dia, Lexan; If Used

3шт.
