Запчасти Case 440CT (09-33) - CAB DOOR - WIPER MOUNTING (09) - CHASSIS

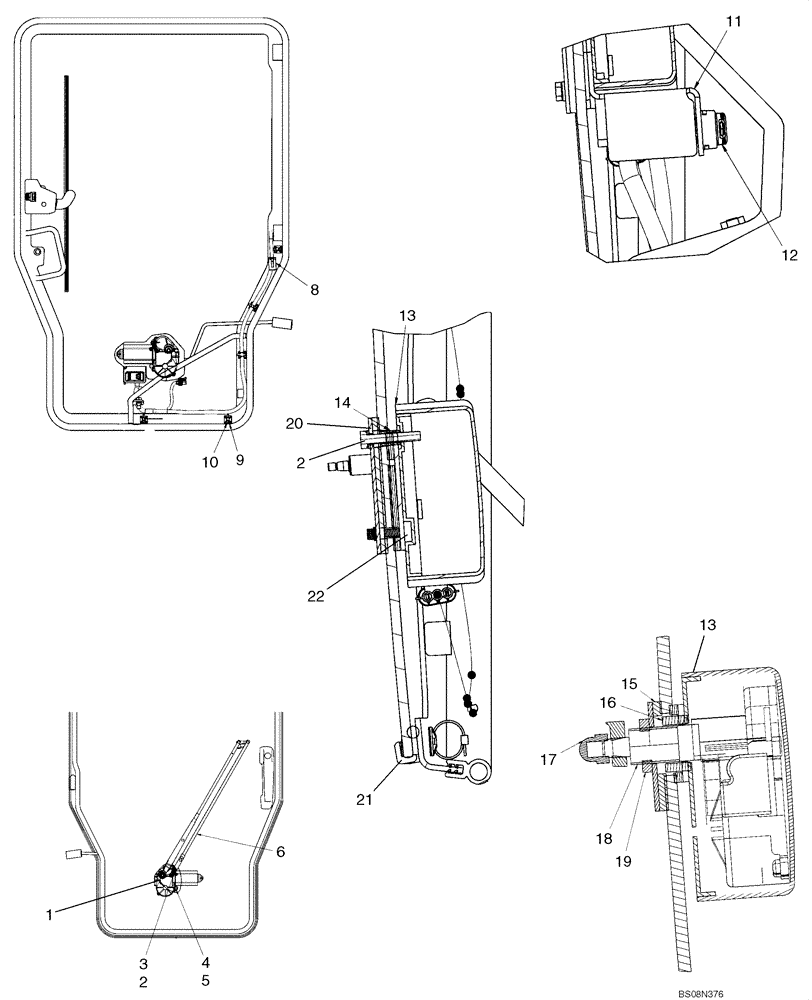

Схема запчастей Case 440CT - (09-33) - CAB DOOR - WIPER MOUNTING (09) - CHASSIS
16
6
3
13
22
4
8
19
1
2
20
11
15
13
18
5
10
12
21
17
9
2
14

Артикул

Название

Примечание

Количество

1

87716728

ADAPTER

Adapter, Pantograph

1шт.

2

87698769

BOLT,Hex, M6 x 35mm, Cl 8.8

Bolt, M6 X 35

5шт.

3

86642465

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

Washer, 6.6 X 12 X 1.6 MM; If Used

2шт.

4

87680190

SPACER

Wiper Motor Spacer; If Used

1шт.

5

87642543

WIPER SEAL

Wiper Switch Seal; If Used

1шт.

5

87723775

BRACKET

Wiper Switch;If Used

1шт.

6

87642544

WIPER ARM

1шт.

7

87642545

WIPER BLADE

1шт.

8

87718119

HARNESS

Door Harness; If Used

1шт.

8

87750584

HARNESS

Door Harness; If Used

1шт.

9

87642914

BASE

Mounting Base; If Used

5шт.

10

87642915

CABLE TIE,198mm L

CABLE STRAP If Used

5шт.

11

87671857

BRACKET

Wiper Switch Bracket; If Used

1шт.

10a

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Not Illustrated

5шт.

11

87723782

BRACKET

Wiper Switch Bracket, Black; If Used

1шт.

12

87335499

SWITCH

Rocker Switch, Windshield Wiper/Washer

1шт.

13

87581666

COVER

Wiper Motor Cover

1шт.

14

87642540

SPACER,6.5mm ID x 9.5mm OD x 13mm L

Wiper Motor Spacer

1шт.

15

87716731

ADAPTER

Pantograph Adapter Seal

1шт.

16

87642536

BUSHING,19.8mm ID x 28.6mm OD x 13mm L

Wiper Motor Bushing

1шт.

17

412326

CROWN NUT,Dome, M8 x 1.25mm, Cl 6

Nut, Crown Dome M8

1шт.

18

87678400

WIPER MOTOR

If Used

1шт.

18

87729518R

REMAN-WIPER MOTOR

1шт.

18

87729518C

CORE-WIPER MOTOR

Return Number, WIPER MOTOR

1шт.

18

87729518

WIPER MOTOR,12V

If Used

1шт.

18

87729518R

REMAN-WIPER MOTOR

Remanufactured Wiper Motor

1шт.

18

87729518C

CORE-WIPER MOTOR

Return Number, WIPER MOTOR

1шт.

19

87607505

NUT,M18, 5mm Thk

Wiper Nut, M18

1шт.

20

86639315

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 X 18 X 1.6 mm

2шт.

21

87715052

SEAL,3204mm L

Trim

1шт.

22

84130093

SPACER

Wiper Motor

2шт.

Выбрано товаров: 31
