Запчасти Case 440CT (08-41[2]) - KIT, HIGH FLOW BI-DIRECTIONAL GEAR, EUROPE (08) - HYDRAULICS

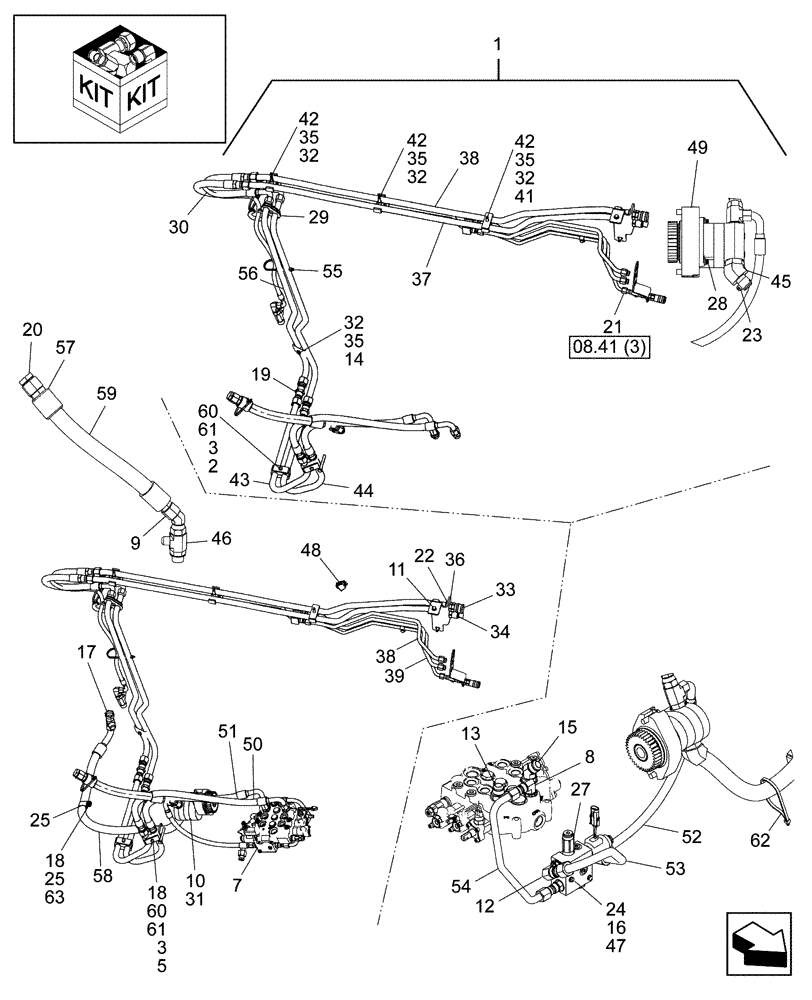

Схема запчастей Case 440CT - (08-41[2]) - KIT, HIGH FLOW BI-DIRECTIONAL GEAR, EUROPE (08) - HYDRAULICS
3
38
11
52
12
37
54
13
23
31
25
34
61
18
32
19
56
15
60
41
42
39
35
59
51
61
53
48
25
08.41 (3)
22
46
33
32
14
42
5
45
2
44
28
17
36
32
27
55
60
20
7
49
35
32
18
58
35
9
1
42
24
57
30
62
21
8
50
38
29
35
16
47
3
10
43
63

Артикул

Название

Примечание

Количество

1

84179363

KIT

Kit, High Flow, Bi-Directional Gear, Europe, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure.

1шт.

2

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

3

80681

LOCK WASHER,5/16"

2шт.

4

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

1шт.

5

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

1шт.

6

120073

BOLT,Hex, M10 x 86.58mm, Cl 8.8

1шт.

7

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

1шт.

8

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

1шт.

9

219605

ELBOW,45 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

10

272310

O-RING,0.07" Thk x 3.239" ID, -42, Cl 5, 75 Duro

1шт.

11

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

2шт.

12

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

13

322896

HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC

1шт.

14

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

15

330344

45 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

16

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

2шт.

17

9618946

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

1шт.

18

9628098

NUT,M8 x 1.25, Cl 10

2шт.

19

9790526

UNION,1-5/16" - 12 JIC x 1-5/16" - 12 JIC

2шт.

20

9790527

PLUG,1-5/16" - 12 JIC

1шт.

21

0C

ORDER COMPONENTS

Case Drain, High Flow Kit

1шт.

84177566

1шт.

22

86513144

BHD LOCK NUT,Blkhd, 1 5/16"-12

2шт.

23

86536660

HOSE CLAMP,25mm - 44mm

1шт.

24

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

25

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

26

86639006

CLAMP,38.1mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

27

87012669

VALVE

Combination

1шт.

28

87016486

12 PT SCREW,M10 x 1.5 x 40mm OAL, Cl 12.9

2шт.

29

87017999

SUPPORT

2шт.

30

87020048

HOSE,19.05mm ID x 675mm L

2шт.

31

87020733

PUMP

Gear, 1.55 CID, 11T

1шт.

32

87020743

BRACKET

4шт.

33

87022671

COUPLING, QUICK, FEM

Female, #16 BLKHD

1шт.

34

87022672

QUICK MALE COUPLING

Male, #16 BLKHD

1шт.

35

87022737

SPACER,11.1mm ID x 15.9mm OD x 25mm L

4шт.

36

87023398

BRACKET

1шт.

37

87023469

TUBE,25.40 mm OD

1шт.

38

87023470

HYD TUBE,25.40 mm OD

1шт.

39

87023471

HYD TUBE,15.88 mm OD

1шт.

40

87023472

HYD TUBE,15.88 mm OD

1шт.

41

87023483

PLATE,82mm L x 31.8mm W x 7.37mm Thk

1шт.

42

87025275

SCREW,Hex, 3/8" - 16 x 2-1/2"

3шт.

43

87026695

TUBE,25.40 mm OD x 556.80, 146.80 mm L

1шт.

44

87026696

HYD TUBE,25.40 mm OD x 439.50, 190.20 mm L

1шт.

45

87029968

HYD CONNECTOR

1шт.

46

87399014

ADAPTER

1шт.

47

87404992

SQUARE NUT,M6 x 1.0, Cl 8

2шт.

48

87414769

SWITCH

Rocker, Hi-Flow

1шт.

49

87428636

KIT

Kit

1шт.

50

87453999

HOSE ASSY.

High Flow

1шт.

51

87454000

HOSE ASSY.

High Flow

1шт.

52

87458725

HOSE

Supply

1шт.

53

87473824

HYD TUBE,19.05 mm OD

High Flow Return

1шт.

54

87499842

HYD TUBE,15.9 mm OD x 336.3, 196 mm L

High Flow Supply

1шт.

55

87554200

HYD TUBE,19.3 mm ID x 25.4 mm OD x 1000.3, 338.6 mm L

High Flow Auxiliary

1шт.

56

87554226

HYD TUBE,19.3 mm ID x 25.4 mm OD x 1027.4, 129.5 mm L

High Flow Auxiliary

1шт.

57

87595771

ISOLATOR,200mm L x 50mm W x 3.2mm Thk

Rubber

1шт.

58

87602204

HOSE

High Flow Suction

1шт.

59

87717826

HOSE,25.4mm ID x 475mm L

Resonator

1шт.

60

1546028C1

CLAMP,25.4mm ID x 82mm L

2шт.

61

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

3шт.

62

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

63

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

Выбрано товаров: 65
