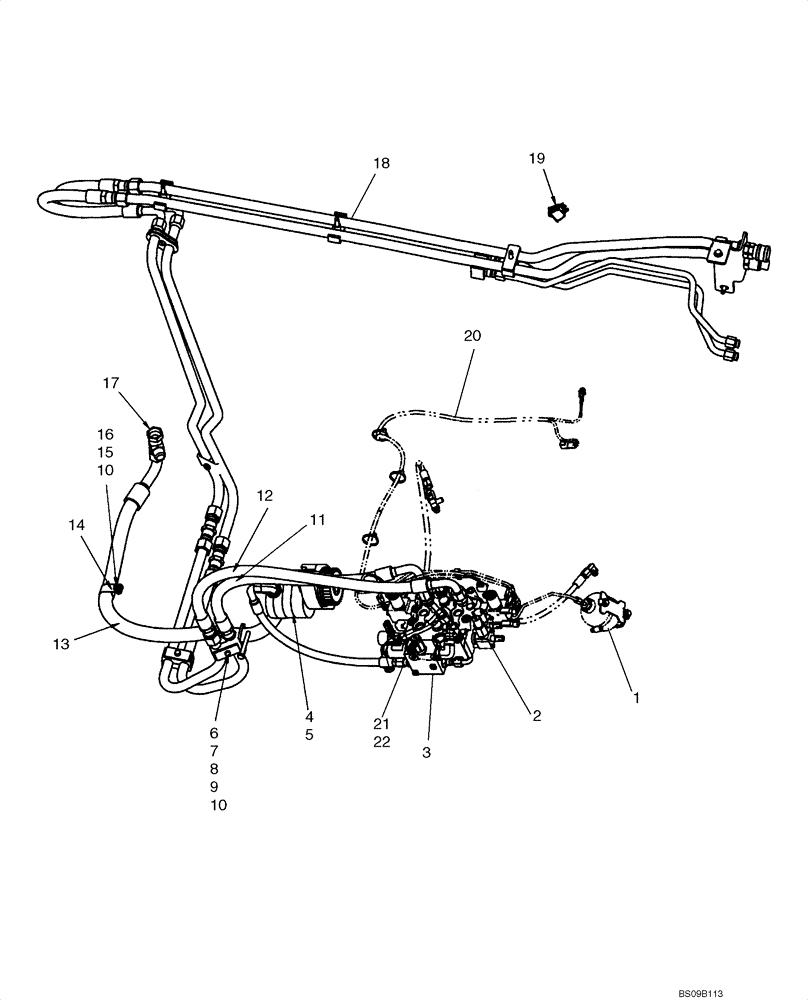

Запчасти Case 440CT (08-16) - HIGH FLOW - SUPPLY AND RETURN (08) - HYDRAULICS

87617100

SERVICE KIT

Kit, High Flow Bi-Directional Gear; Incl 1- 22 And 08-17, 08-18

1шт.

87719310

SERVICE KIT

Europe, High Flow Bi-Directional Gear; Incl 1-22 And Fig 08-17, 08-18, 06-30A

1шт.

1

REF

INSTRUCTION

Accumulator, See Fig 08-07

1шт.

2

87546975

HYDRAULIC VALVE

Control Valve, See Fig 08-23

1шт.

3

87012669

VALVE

See Fig 08-19

1шт.

4

87020733

PUMP

See Fig 06-55

1шт.

5

272310

O-RING,0.07" Thk x 3.239" ID, -42, Cl 5, 75 Duro

1шт.

6

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

1шт.

7

80681

LOCK WASHER,5/16"

2шт.

8

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

3шт.

9

1546028C1

CLAMP,25.4mm ID x 82mm L

25.4 x 25.4

2шт.

10

9628098

NUT,M8 x 1.25, Cl 10

2шт.

11

87454000

HOSE ASSY.

860 mm (38.85 in) High Flow

1шт.

12

87453999

HOSE ASSY.

1020 mm (40.15 in) High Flow

1шт.

13

87602204

HOSE

1200 mm (47.24 in) High Flow Suction

1шт.

14

86639006

CLAMP,38.1mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

15

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

16

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

17

9618946

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

1шт.

18

REF

INSTRUCTION

Auxiliary Hydraulics, See Fig 08-17

1шт.

19

87414769

SWITCH

Rocker, High Flow

1шт.

20

87447970

HARNESS

Electro-Hydraulic Auxiliary

1шт.

21

128818

UNION,3/4" - 16 ORB x 3/4" - 16 JIC

Incl 22

1шт.

22

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
