Запчасти Case 440CT (08-02) - HYDRAULICS - LIFT (08) - HYDRAULICS

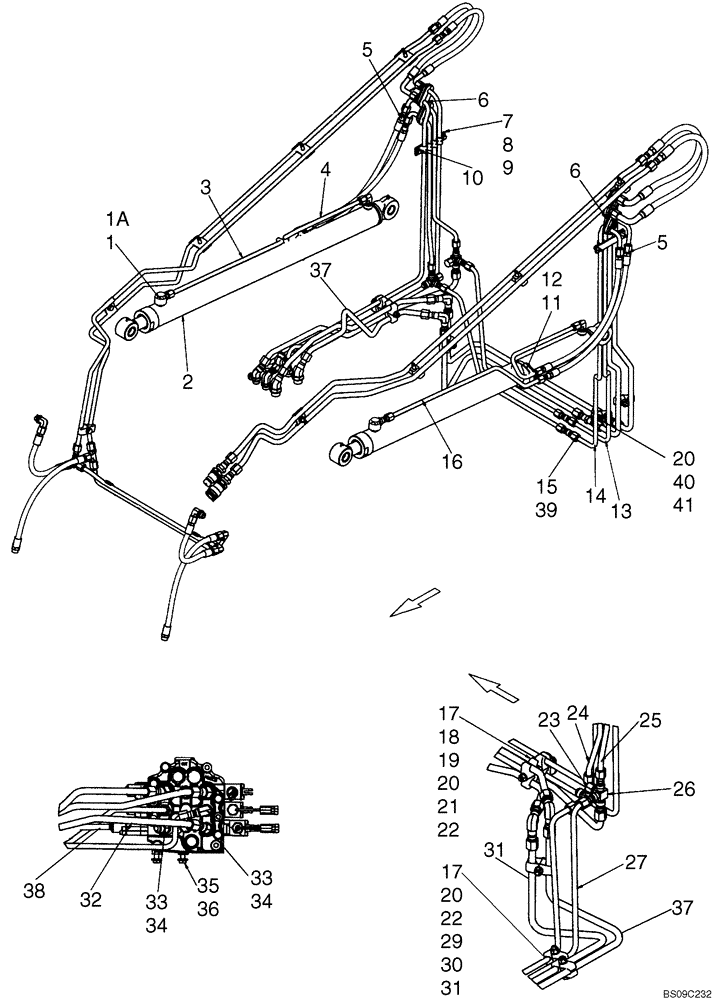

Схема запчастей Case 440CT - (08-02) - HYDRAULICS - LIFT (08) - HYDRAULICS
3
24
37
6
25
5
38
1a
32
34
9
36
4
16
5
31
22
15
12
7
10
40
20
20
14
26
34
23
29
8
1
41
18
35
33
17
2
13
39
6
22
27
17
20
37
21
30
33
31
11
19

Артикул

Название

Примечание

Количество

1

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 1A

2шт.

1a

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

2

87705799

CYLINDER,Double Acting, 44.4mm Rod, 910mm Stroke

Lift Cylinder; See Fig 08-14; 44.4mm (1.75 in)

2шт.

87705799R

REMAN-HYD CYLINDER

440 Series 3 ASN N8M474469, 440CT Series 3, ASN N7M483467

2шт.

87705799C

CORE-HYD CYLINDER

Return Number

1шт.

3

87711362

HYD TUBE,12.7 mm OD x 670, 73 mm L

Tube, Lift Cylinder, RH (Lower)

1шт.

4

87711363

HYD TUBE,12.7 mm OD x 349, 71 mm L

Tube, Lift Cylinder (Raise)

2шт.

5

390211A1

HOSE ASSY.,9.53mm ID x 575mm L

Hose, 575mm (22 5/8 in.) (Raise)

4шт.

6

376523A2

SUPPORT,1/2"

Hydraulic Tube Support

6шт.

7

406940A1

BAR

Bar Clamp, Back

1шт.

8

87029930

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 5/8"

1шт.

9

406941A1

BAR

Bar Clamp, Face

1шт.

10

87385021

SCREW,HWH, 5/16" - 18 x 1/2"

Screw, Hex Washer Head 5/16 X 1/2

1шт.

11

R24703

SUPPORT

2шт.

12

86625033

HOSE CLAMP,77.7mm - 101.6mm, Worm Gear

2шт.

13

87405135

HYD TUBE,12.7 mm OD x 969.8, 325 mm L

Tube, Lift LH (Lower)

1шт.

14

87405137

HYD TUBE,12.7 mm OD x 949, 251.1 mm L

Tube, Lift LH (Raise)

1шт.

15

128822

UNION,3/4" - 16 JIC x 3/4" - 16 JIC

1-2шт.

16

87711361

HYD TUBE,12.7 mm OD x 670, 73 mm L

Tube, Lift Cylinder LH (Lower)

1шт.

17

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

2шт.

18

87040707

WASHER,0.53" ID x 2.25" OD x 0.18" Thk

Washer, .531 X 2.25 X .179 in.

1шт.

19

D120613

CLAMP,20mm ID

1шт.

20

D120679

CLAMP,Tube, 1/2"

3шт.

21

86500689

NUT,M10 x 1.5, Cl 10

1шт.

22

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

23

262159

CAP,3/4" - 16 Fem JIC

2-3шт.

24

87405141

HYD TUBE,12.7 mm OD x 570.8, 107.2 mm L

Tube, Lift RH (Raise)

1шт.

25

87593416

HYD TUBE,9.4 mm ID x 12.7 mm OD

Tube, Lift RH (Raise)

1шт.

26

87404825

TEE

2шт.

27

87593417

HYD TUBE,9.4 mm ID x 12.7 mm OD

Tube, Lift LH (Lower)

1шт.

29

86512554

NUT,M10 x 1.5, Cl 10

1шт.

30

120069

BOLT,M10 x 1.5 x 56.58mm OAL, Cl 8.8

1шт.

31

87714068

HYD TUBE,12.7 mm OD x 504.4 mm L

Tube, Lift LH (Raise)

1шт.

32

87593415

HYD TUBE,11.58 mm ID x 15.8 mm OD

Tube, Lift (Lower)

1шт.

33

330345

45 ELBOW,45 Degree, 7/8"-14 x 7/8"-14, O-Ring

Incl 34

2шт.

34

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

35

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

36

86639325

WASHER,10.8mm ID x 24.5mm OD x 3mm Thk

2шт.

37

87659996

Remove With Pkg; No High Flow; See Fig 08-17A

1шт.

38

87445749

HYD TUBE,.625" OD

Lift (Raise)

1шт.

39

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

40

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

M10-1.5

1шт.

41

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

1шт.

Выбрано товаров: 43
