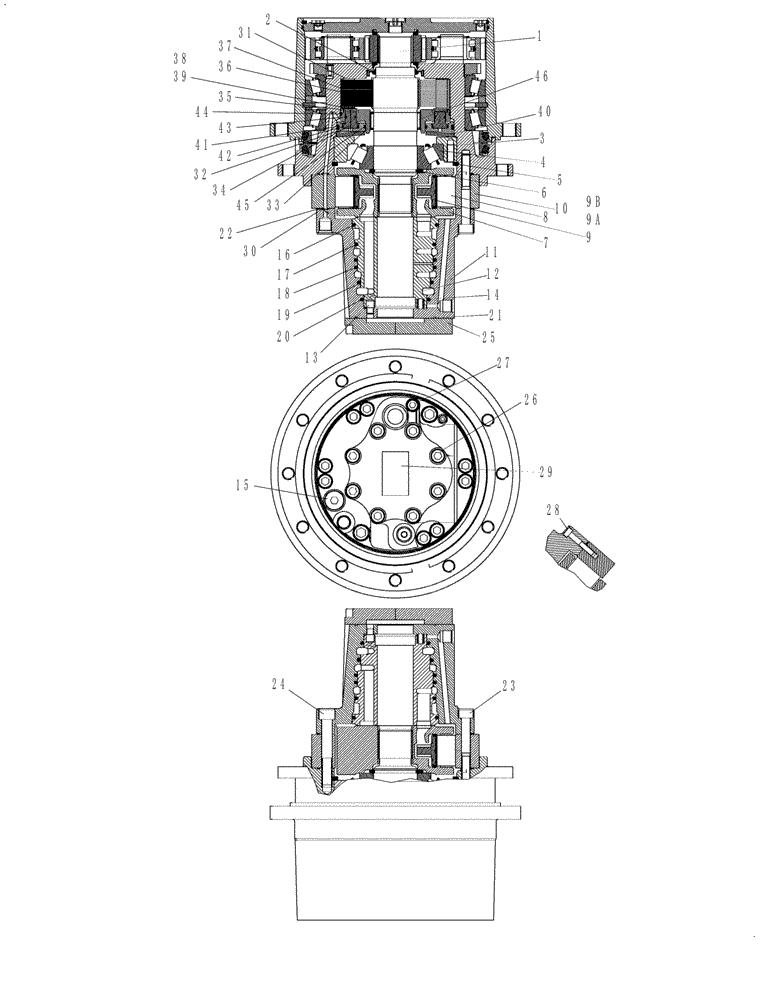

Запчасти Case 440CT (06-62[02]) - MOTOR ASSY. - REXROTH 2 SPEED CTL DRIVE MOTOR PRIOR TO N8M483727 (440CT) (06) - POWER TRAIN

1

84305195

SHAFT

GRN8 Motor

1шт.

2

84305194

OIL SEAL

Shaft, GRN8 Motor

1шт.

3

84305193

RING

Bearing Support, GRN8 Motor

1шт.

4

84305191

ROLLER BEARING

Tapered, 50x110x29.25

1шт.

5

84305190

RING

Retaining, Internal 140 Dia.

1шт.

6

84305189

RING

Snap EXT 50mm

1шт.

7

84305187

CYLINDER BLOCK

1шт.

8

84305186

ROLLER

Stepped

8шт.

9

84305185

PISTON

8шт.

10

84305181

CAM

1шт.

11

84305180

CASE

Rear, Motor

1шт.

12

84305179

DISTRIBUTOR

Ring

1шт.

13

87042911

PIN

Stop

1шт.

14

87042912

SPRING

1шт.

15

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

1шт.

16

84305284

SEALING RING

SEALRING Piston

1шт.

17

84305285

SEALING RING

SEALRING Piston

1шт.

18

84305286

SEALING RING

SEALRING Rod

2шт.

19

84305287

SEALING RING

SEALRING Rod

1шт.

20

84305288

SEALING RING

SEALRING Rod

1шт.

21

84305291

SEALING RING,1.68mm Thk x 85.26mm ID, 75 Duro

SEALRING Ring

1шт.

22

84305292

SEALING RING,1.68mm Thk x 171.5mm ID, 75 Duro

SEALRING Ring

2шт.

23

NSS

NOT SOLD SEPARAT

Screw, Hex Soc Hd M10x80

8шт.

24

NSS

NOT SOLD SEPARAT

Screw, Hex Soc Hd M12x75

2шт.

25

84305293

COVER PLATE

End Rear Case

1шт.

26

86528768

HEX SOC SCREW,M10 x 20mm, Cl 12.9

8шт.

27

86512138

HEX SOC SCREW,M8 x 20mm, Cl 12.9

1шт.

28

NSS

NOT SOLD SEPARAT

Screw, Hex Soc Hd M6x35

1шт.

29

NSS

NOT SOLD SEPARAT

Label, Bar Coded

1шт.

30

87477177

O-RING

5.28x1.78 Viton

2шт.

31

84305295

WASHER,117mm ID x 93mm OD x 0.89mm Thk

117x93x0.89

1шт.

32

84305298

PISTON

Brake

1шт.

33

84305300

SEALING RING

SEALRING Brake

1шт.

34

84305301

PIN

Stepped, Brake

6шт.

35

NSS

NOT SOLD SEPARAT

Brake Plate, Inner

17шт.

36

NSS

NOT SOLD SEPARAT

Brake Plate, Outer

18шт.

37

NSS

NOT SOLD SEPARAT

Shim, Brake

1шт.

38

NSS

NOT SOLD SEPARAT

Shim, Brake

1шт.

39

84305296

WASHER,118mm ID x 88mm OD x 3.6mm Thk

118x88x3.6

1шт.

40

84305303

BELLEVILLE SPRING

134x70x4, LO-8.1

1шт.

41

84305304

SEALING RING,4.36mm Thk x 127.2mm ID

SEALRING Brake Piston, 127x2x4.36 Viton

1шт.

42

14453381

O-RING,0.07" Thk x 0.614" ID, -16, Cl 7, 75 Duro

6шт.

43

86625100

O-RING,0.07" Thk x 0.364" ID, -12, Cl 7, 75 Duro

6шт.

44

70934882

O-RING,0.103" Thk x 4.737" ID, -158, Cl 7, 75 Duro

1шт.

45

84305305

O-RING,2.62mm Thk x 66.35mm ID, 70 Duro

66.35x2.62 Viton 70

1шт.

46

84305306

NEEDLE BEARING

Drawn Cup 50x58x20

1шт.
